Products Description

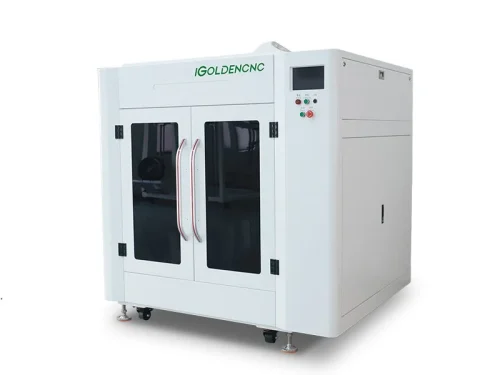

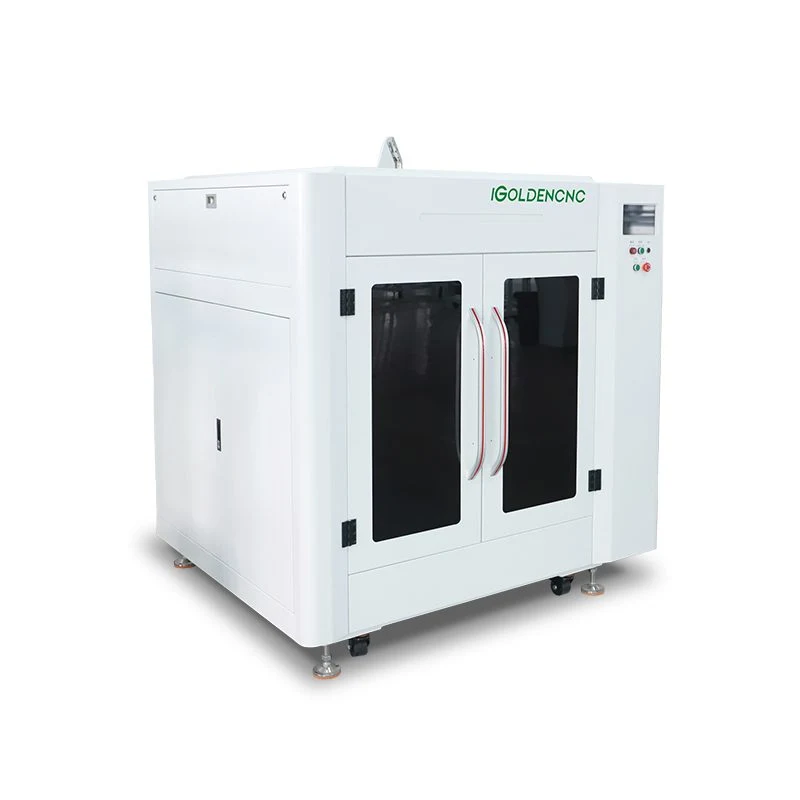

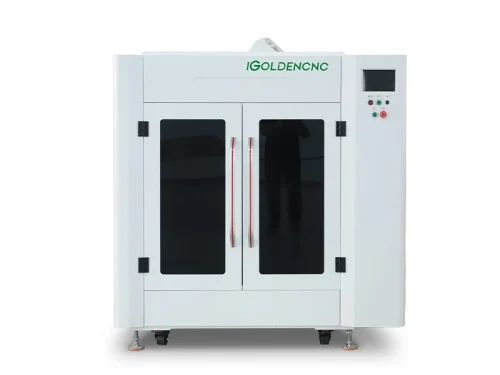

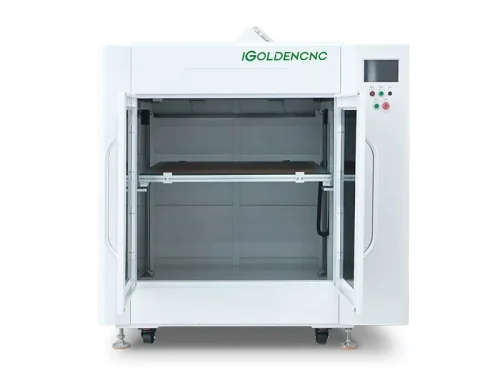

Enclosed 3D Printer iGM-3DE
- Built with an integrally precision-welded frame and industrial-grade transmission systems, this printer supports PETG, ABS and other engineering filaments. It realizes mass production of large-size models and rapid prototyping for tooling, large prototypes and industrial parts, ideal for factory R&D, mold making, sculpture creation and equipment production.
| Technical indicators | parameter |
| Model | IGM-3DE |
| Frame Material | Integrally precision-welded frame |

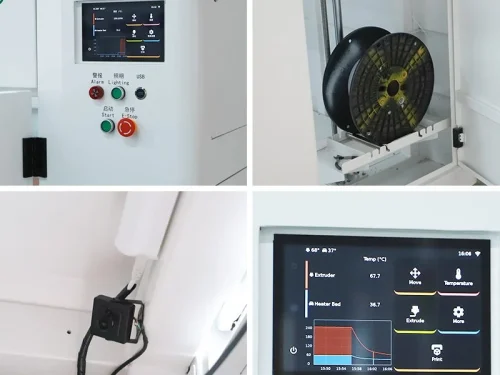

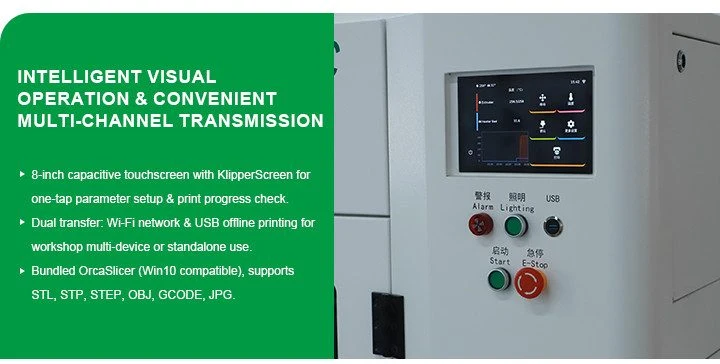

| Operation Panel | 8-inch color capacitive touchscreen |
| Overall Dimension | Length 175cm × Width 153cm × Height 175cm |
| Net Weight | 520KG net weight |

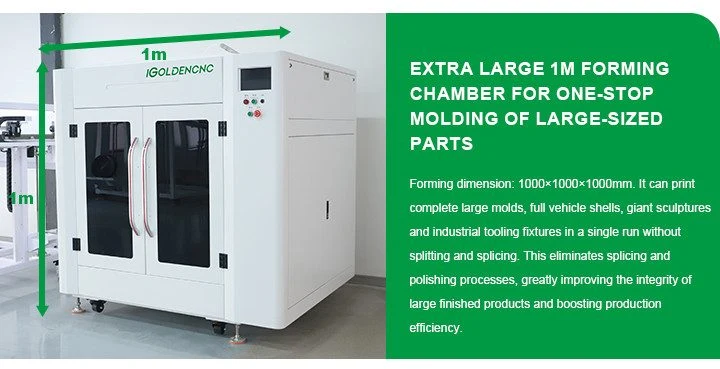

| Forming Dimension | Forming size: 100010001000mm |
| Forming Technology | FDM (Fused Deposition Modeling) |
| Filament Specification | Standard 2.85mm filament |
| Compatible Filaments | Compatible materials: PETG, ABS |
| Rated Voltage | Rated voltage: 220V |
| Power | Power: Hot bed 1460W / Main machine 650W |
| Nozzle Temperature | Nozzle temperature range: 0–350°C |
| Nozzle Diameter | Optional nozzle diameters: 0.8/1.2/1.5/2.0mm |
| Positioning Accuracy | Positioning accuracy: 0.02mm |
| Printing Accuracy | Printing accuracy: 0.08–0.5mm |
| Layer Thickness | Optional layer thickness: 0.3–0.8mm |
| Printing Speed | Printing speed: 50–200mm/s |
| Hot Bed Temperature | Hot bed temperature range: 0–80°C |

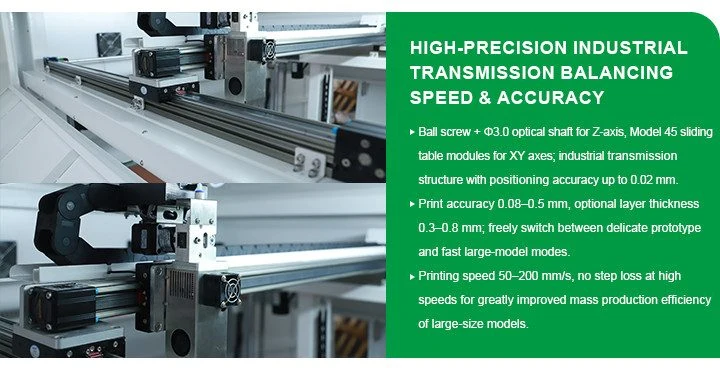

| Z-Axis Structure | Z-axis: Ball screw + Φ3.0 optical shaft |

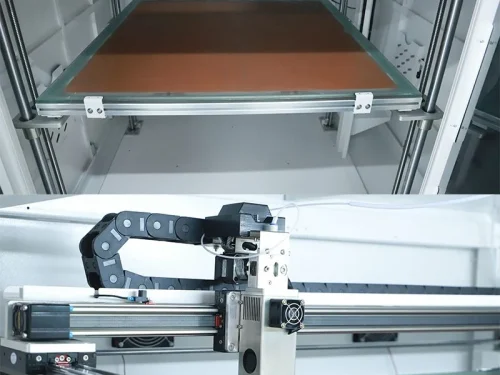

| XY-Axis Structure | XY-axis: Model 45 sliding table modules |
| Recommended Ambient Operating Temperature | Operating environment: 0–40°C, humidity 10–90% |

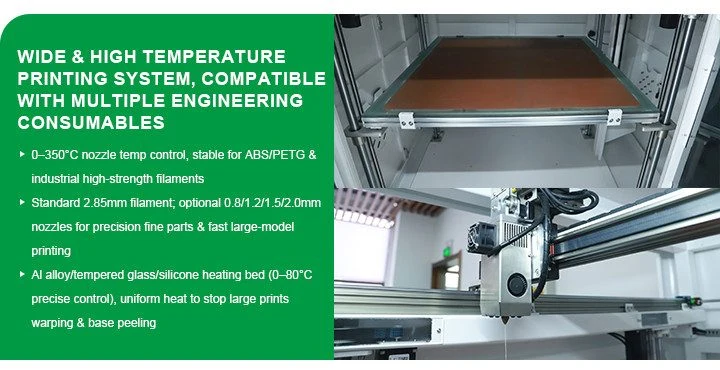

| Heating Bed Platform | Heating bed: Aluminum alloy + tempered glass + silicone heating sheet |
| Data Transmission Mode | Data transmission: Wi-Fi connection, USB offline printing |
| PC Slicing Software | PC slicing software: OrcaSlicer |
| Machine Touch Screen OS | Screen control system: KlipperScreen |
| PC Operating System | Supported PC system: Windows 10 |
| Supported File Formats | Supported file formats: STL, STP, STEP, OBJ, GCODE, JPG, etc. |
| Multi-language Support | Multi-language support: 20 languages including Chinese, English, French, Japanese, Korean |
| Filament Run-out Detection | Filament run-out detection: Supported |
| Resume Printing After Filament Replacement | Resume printing after filament replacement: Supported |
| Power Failure Resume Print | Power failure resume print: Supported |
| Over-temperature Protection | Over-temperature protection: Supported |
| Automatic Bed Leveling | Automatic bed leveling: Supported |
| Hot Bed Compensation | Hot bed compensation: Supported |
