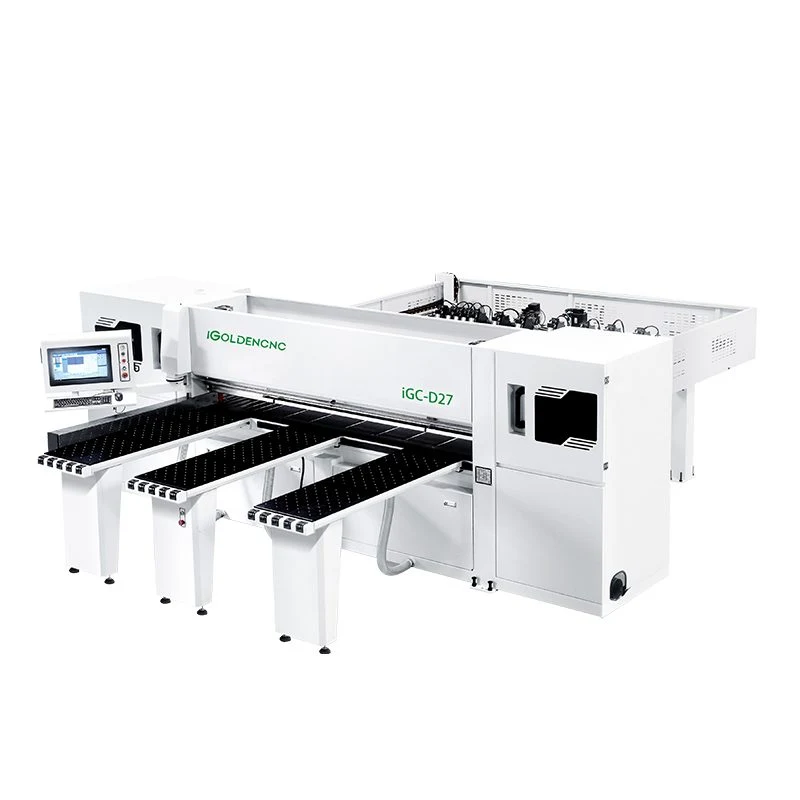

Fully Automatic Electronic Cutting Saw

Using servo motors to control sawing speed, achieving dual-servo CNC sawing, the sawing stability is more advantageous.

It is equipped with an online fault detection device that automatically stops the machine in case of a fault, has automatic fault detection functionality, and allows for quick identification of the fault cause.

Visual sawing inspection allows for real-time observation of the sawing status, and it is equipped with intelligent cutting optimization software (optional), making production more time-saving, material-saving, and labor-saving.

Its features include automation, high efficiency, high precision, and aesthetics. It has been widely used in domestic and international panel furniture manufacturing enterprises and possesses high-performance operation.

Application

 The feeding auxiliary table and sawing table surfaces all use pneumatic floating bead surfaces, making it easier and less labor-intensive to move the boards, and preventing scratches on the workpiece surfaces.
 High-quality flexible special cables are used, which greatly extend the service life.
 The main saw and auxiliary saw use independent lifting control systems, which can automatically recognize the saw blade lift according to different board thicknesses, achieving automatic positioning of the sawing stroke, reducing idle movement and time waste, and improving work efficiency.
 The large and small saw seats are vertical, and the sawing directions are installed in opposite orientations, achieving smooth, flat, chip-free, and split-free cuts.
 The control system interface is simple and easy to operate, providing operation guidance and troubleshooting instructions. It can edit and manage sawing plans, manage sawing tasks, and simulate sawing execution. It is compatible with various sawing optimization software, barcode management software, and factory automation software.

Product Details

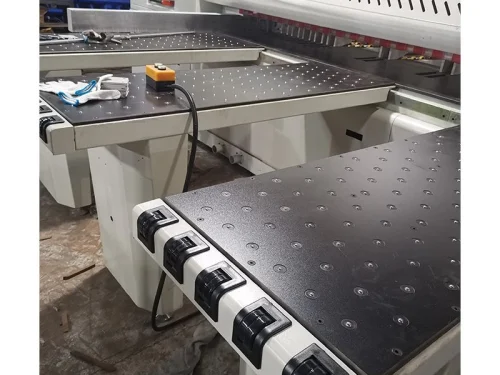

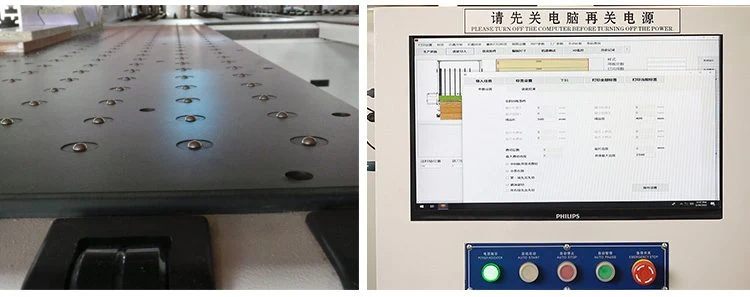

Air flotation bead table
The air cushion table adopts stainlesssteel balls, which can effectivelyreduce the friction between theworkpiece and the steel balls andprotect the plate.
PC control system
1. Easy operation, safety & reliable.2. Which has complete operating hintsand troubleshooting guide functions.3. It’ s cutting plan can edit manually;can simulate or execute cutting plans.

Smooth drive
Imported German round rod guiderail, low noise, high precision, smoothoperation.

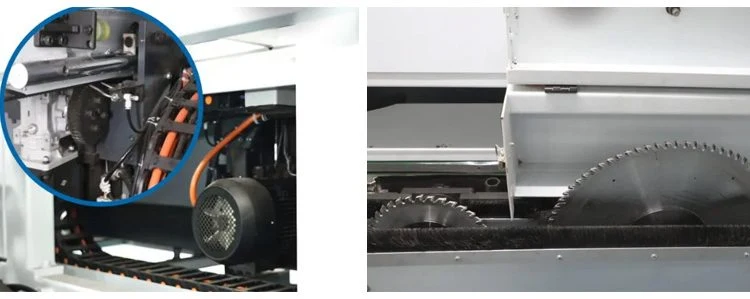

Sawing stabilization
The size of the saw blade can achievesmooth and smooth saw edge withoutbreaking and splitting.

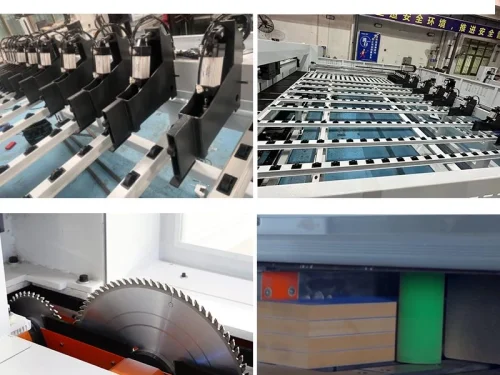

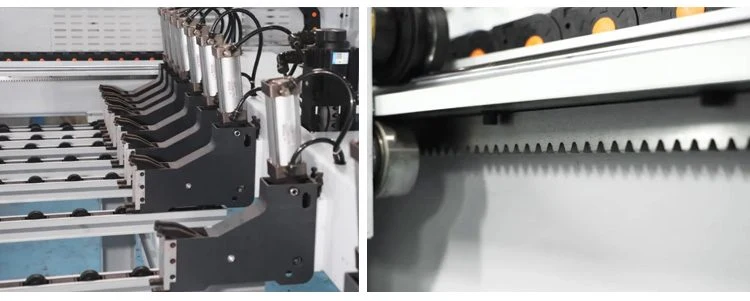

High precision gear and rackServo control of 9 sets of double fingerHigh precision rack and pinion drive,mechanical fixture grippers, high-smooth operation is not easy to breakprecision turbine reducer transmission,edge.positioning accuracy + 0.1mm.
Servo control gripper

Parameter
