Products Description

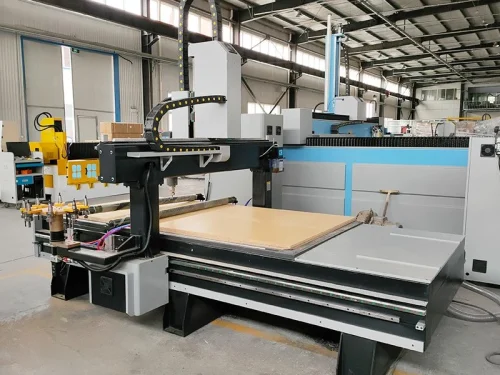

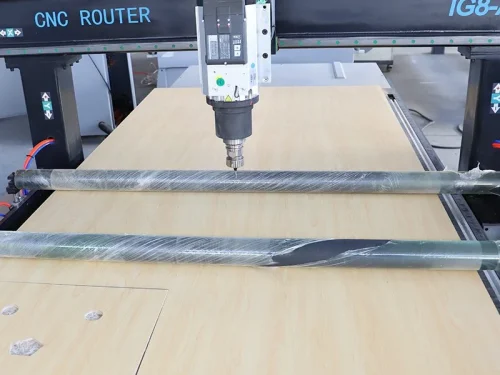

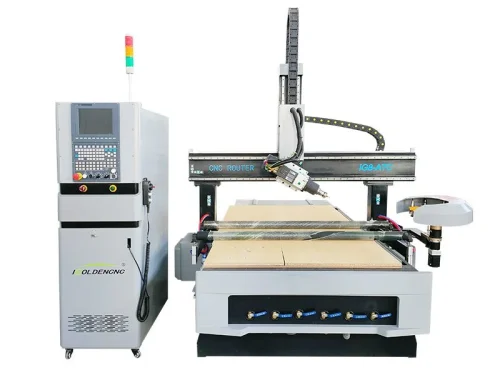

1325 ATC CNC Router Cnc Wood Board Cutting Machine
- With 8 or 12 sets of tools to change automatically, which can saving time of tools changing and improving working efficiency.
- Vacuum table using high-density material with great suction strength, comfortably accommadating all sizes of work piece.
- NC studio control system is simple, convenient and easy to learn, users can quickly get the fleciblity to master the use of equipment, strong independence.
- The frame adopts the gantry column structure, the machine parts are produced and assembled with extremely high precision to ensure the high performance and stability of the machine, excellent quality and tolerance.
Application
1. Advertisement: engraving and cutting of various labels and number plate, marble, etc for artistic effects on materials including marble, brass, steel, and other metallic material.
2. Crafts: engraving characters of any language and patterns on gifts and souvenirs, primitive processing and shaping of artistic crafts, and stiletto.
3. Moulding: engraving delicate letter and flower pattern, primitive and fine processing of the small mould.
4. Architectural models: engraving fine window, fencing and wall patterns, etc.
5. Seal: engraving seals and medal on materials such as buffalo horn, wood etc.
Product Details

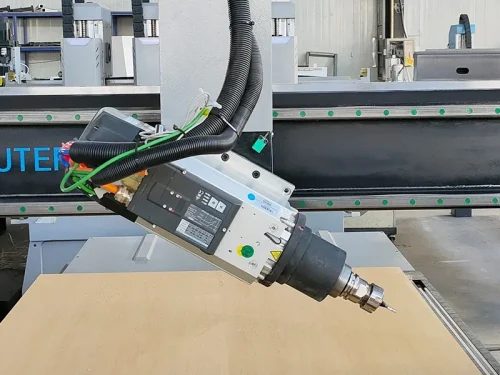

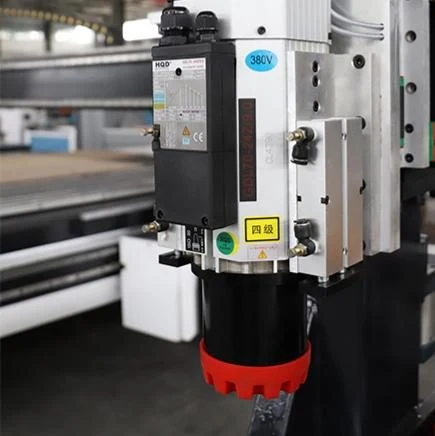

HQD 9KW air-cooledtool change spindle
Air-cooled and maintenance-free, easy to install, low failure rate
Automatic tool change, suitable for continuous batch production
9KW sufficient power, strong cutting force
24000rpm high speed, high efficiency
Square body, stable installation

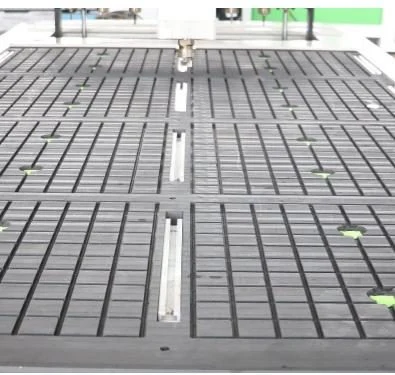

Vacuum and T slot table with 5.5kw cooling pump
Dual clamping, more versatile[eos]
The worktable features both vacuum suction and T-slot fixation methods, allowing it to securely hold flat materials such as wood boards, acrylic, and aluminum-plastic panels, while also enabling clamping of irregular parts, molds, and thick materials. One machine serves multiple purposes without the need to replace the table surface[eos]
5.5kW high-power cooling pump for more stable heat dissipation[eos]
With high flow and high lift, it can meet the cooling requirements for long-term high-speed operation of high-power spindles, effectively reducing spindle temperature rise, minimizing bearing wear, and extending equipment life.

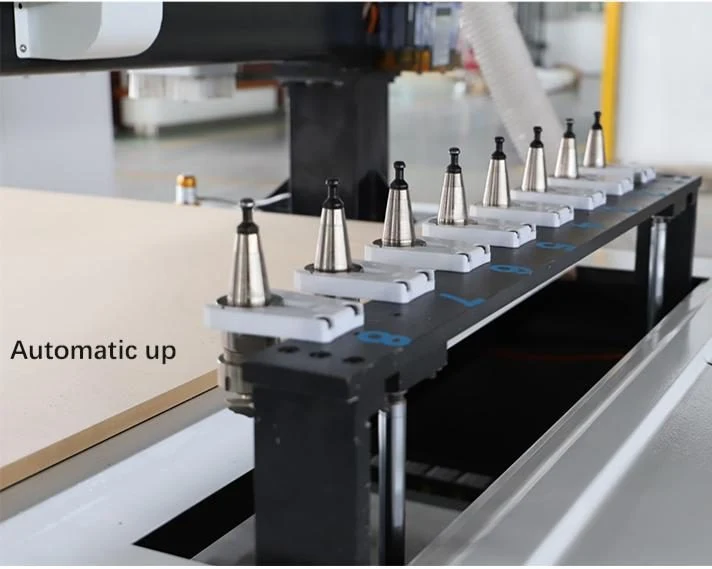

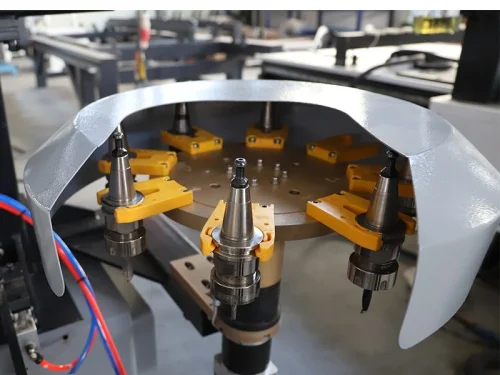

Automatic tool change with liftable tool magazine
Automatic tool change + liftable tool magazine enhances machining continuity. Tools switch automatically without human intervention. Paired with a liftable tool magazine, it can safely avoid the workpiece and worktable during the machining process, achieving fully unmanned continuous machining.
Significantly improves machining efficiency by eliminating manual tool changes, tool alignment, and clamping time. Multiple processes can be completed in one go, making it especially suitable for complex shapes and multi-tool path batch production, with a significant improvement in efficiency.
Automatic tool change with liftable tool magazine
Automatic tool change + liftable tool magazine enhances machining continuity. Tools switch automatically without human intervention. Paired with a liftable tool magazine, it can safely avoid the workpiece and worktable during the machining process, achieving fully unmanned continuous machining.
Significantly improves machining efficiency by eliminating manual tool changes, tool alignment, and clamping time. Multiple processes can be completed in one go, making it especially suitable for complex shapes and multi-tool path batch production, with a significant improvement in efficiency.

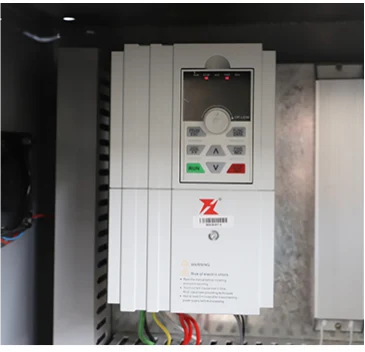

Fuling Inverter
A cost-effective variable frequency drive brand, with core advantages concentrated in high-performance vector control, wide-range stable operation, rich functionality, energy saving and reliability, strong adaptability, and high cost-effectiveness, making it very suitable for industrial machinery such as woodworking, stone processing, and engraving machines.
Parameter
| Description | Parameters |
|---|---|
| Working area | 1300*2500*200mm |
| Spindle | ATC 9KW air cooling spindle |
| Inverter | Fuling |
| Motor | Dorna servo motor and driver 1500W and shimpo Reducer |
| Control System | Dorna servo motor and driver 1500W |
| Table | LNC |
| Oil lubrication | Vacuum and T slot table with 5.5kw cooling pump |
| Limit | Automatic lubrication |
| Transmission | Omron limit |

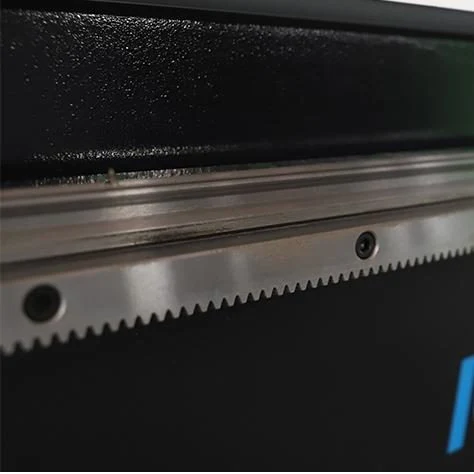

| Rail | XY axis helical rack Z axis Taiwan ball screw |
| Screw | X,Y,Z axis Taiwan HIWIN Square guide rail |
| Bed | Z axis TBI 3210 ball screw |
| Gangry | Thick steel welded big square tube |
OUR advantage
IGOLDENCNC employs more than 500 people worldwide. Equipped with an independent and strong core R&D team,
10+ years manufacturing experience
iGOLDENCNC’s laser machinery has been exported to more than 180 countries.
Strict Quality Control System
Which controls the product quality from raw materials, production, and delivery.
Productive Forces
The factory covers an area of 22,000 square meters with 3 production workshops
Product Quality
Each machine needs to go through 13 inspection processes from order to delivery.
24 hours full service
You can always enjoy comprehensive pre-sale services, free pre-sale consultation and free sample making from iGOLDENCNC.
