Products Description

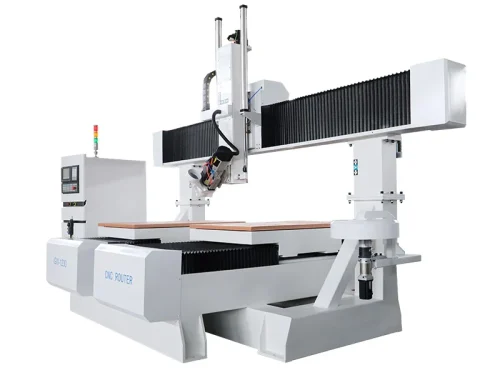

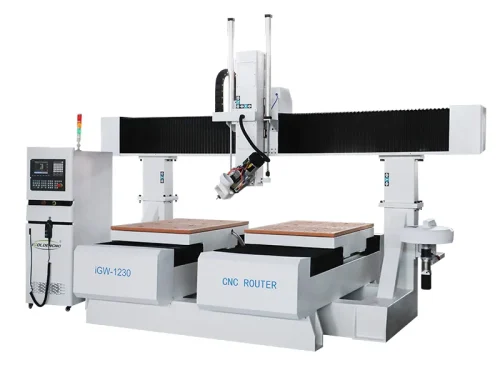

4-axis double-table machining center
The spindle can swing 180°, with a high-power tool-changing spindle and two movable worktables. It has high processing accuracy and performance, and optional straight or rotary tool magazines to meet the requirements of different processing techniques. It can perform full-size 3D carving and surface processing. It is also known as a foaming CNC planer, mold CNC planer, or EPS CNC carving machine. It is used for processing molds, large 3D surfaces, wood, EPS, and other materials.
Application
Wooden furniture industry: wave panels, fine patterns, antique furniture, wooden doors, screens, crafted window panels, composite doors, cabinet doors, interior doors, sofa legs, headboards, etc.
Advertising Industry: Advertisement recognition, sigh production, acrylic carving and cutting, crystal letter production, sandblasting molding, and other derivative advertising material productions.
Die industry: sculpting dies from copper, aluminum, iron, and other metals, as well as non-metallic dies such as artificial marble, sand, plastic fabric, PVC pipes, and wood boards.
Product Details

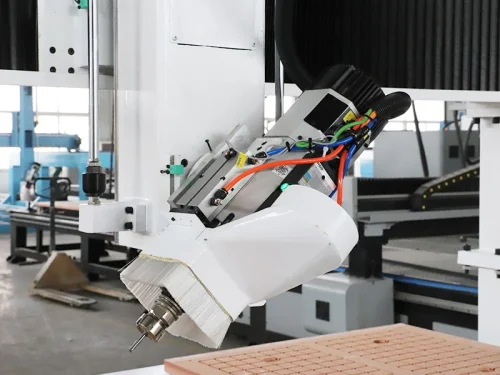

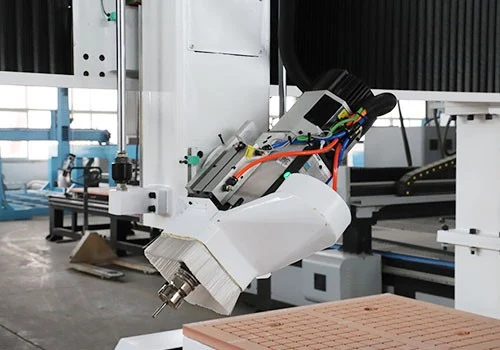

Hanqi 9.0kW Air-Cooled Automatic Tool Change Spindle
High rotational accuracy, low vibration, low noise, good heat dissipation, grease lubrication resistant to high temperatures, durable and long-lasting.

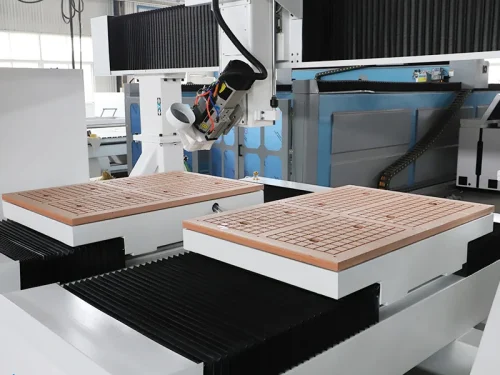

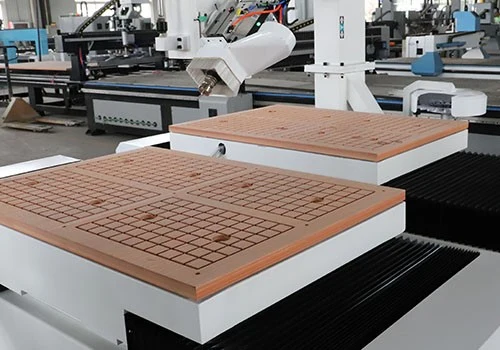

Vacuum suction + mobile double workbench
Vacuum suction countertop, strong suction, no board movement, each area can be controlled individually.

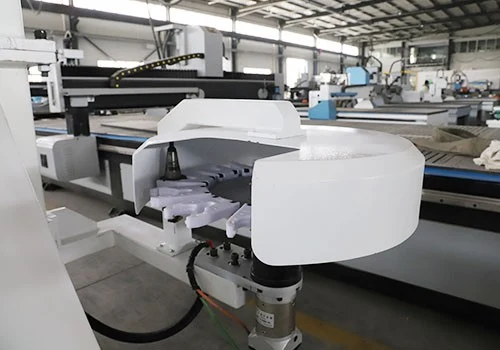

Disc Tool Changer Tool Magazine
Automatic tool magazine can increase the number of tool magazines according to different processes (10 tools/12 tools).

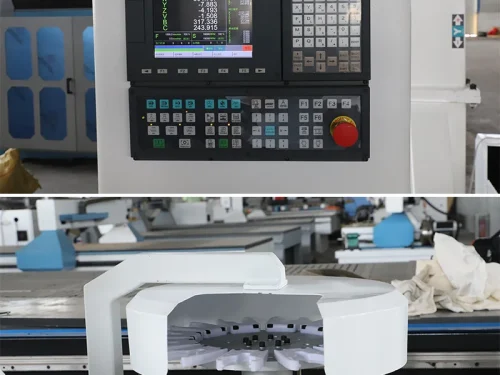

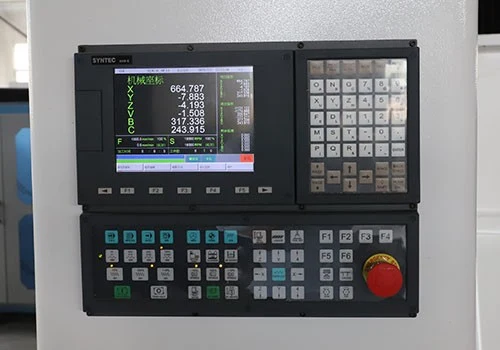

New Generation Control System
Jiabang standalone electric control cabinet, user-friendly design, Taiwan Xindai system, easy and convenient to operate.
CNC Planer Four-Axis Machining Center Parameters:
| Technical indicators |
parameter | |
| Configuration 1 | Configuration 2 | |
| Model | iGW-4WM-1280 | iGW-MC-1530 |
| Control system | Taiwan Syntec control system | DSP/Nc studio /syntec |
| Spindle | 9KW HQD spindle and rotating 180° | |
| Speed Speed | 1800rpm | |
| Woring area | 1200*800*500mmm | 1500*3000*800mm |
| Repositioning Accuracy | 0.02mm | |
| Voltage | 3phase 380V/50HZ | |
| Guide Rails | Taiwan HIWIN | |
| Driver | Japan YASKAWA Servo Drive and Servo Motor | |
| Reducer | Japan SHIMPO | |
| Worktable | Aluminum profile +PVC | |
| Frequency Converter | Fuling | Fuling |
| Electrical Components | France SCHNEIDER | France SCHNEIDER |
