Products Description

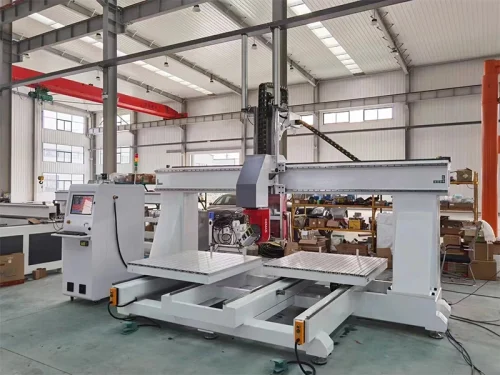

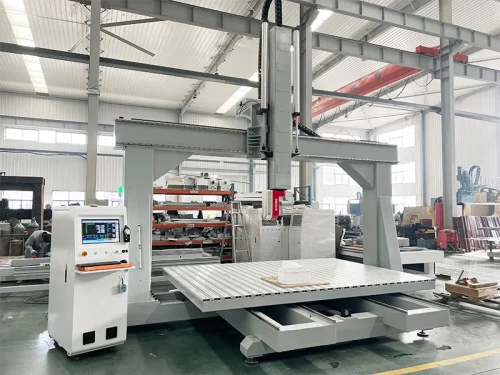

5-axis CNC machining center
5-axis dual-table machining center, with a spindle that can swing 180°, equipped with a high-power tool-changing spindle and two movable worktables. It offers high machining precision and superior performance. Users can choose between a linear or rotary tool magazine to meet different processing requirements. It is capable of full-size 3D carving and surface machining, and is also known as a foam CNC planer, mold CNC planer, or EPS CNC carving machine.

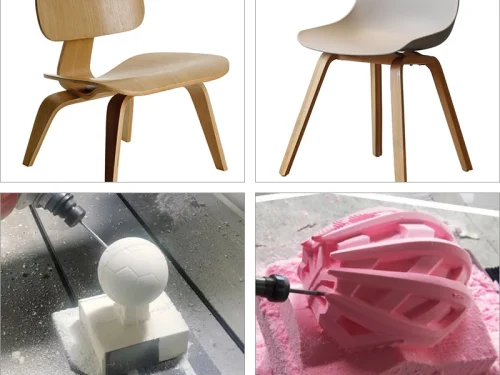

Suitable for processing materials such as molds, large 3D surfaces, wood, and EPS.

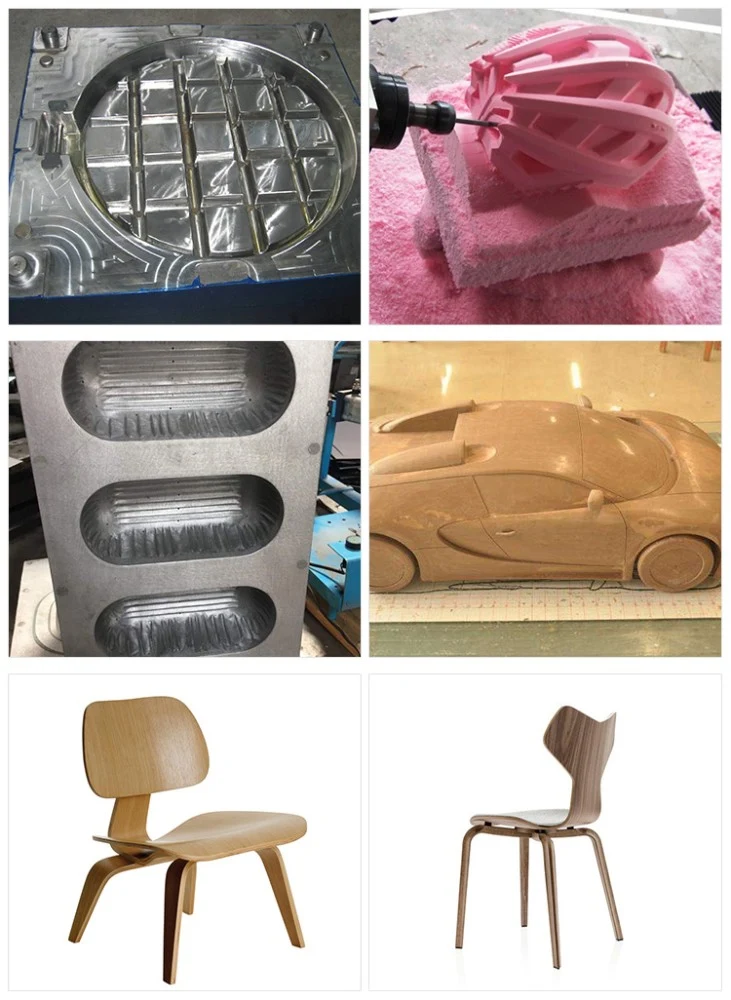

Application
- Composite materials industry: trimming and punching of various composite materials such as plastic parts, fiberglass parts, and rubber and plastic products;
- Mold industry: 5-axis machining of fiberglass wood molds, casting wood molds, resin products, sludge models, and various non-metal molds;
- Ceramic sanitary industry: 5-axis machining of plaster molds, 5-axis machining of various plaster products;

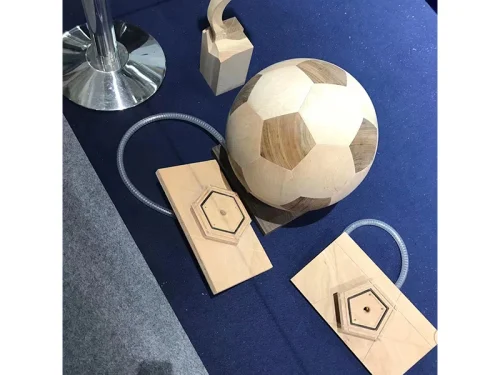

- Furniture industry: 5-axis machining for solid wood furniture, 5-axis machining for various furniture mortise and tenon joints, 5-axis machining for staircase bends, and 5-axis machining for various furniture.
Product Details

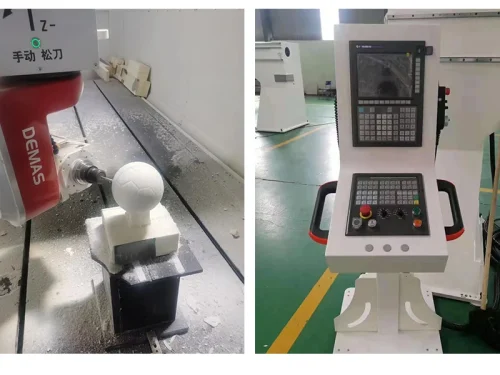

Demas five-axis head + 9kW HQDwater-cooled spindle
360° machining, high rotational accuracy, low vibration, low noise, good heat dissipation, durable, and long-lasting.
Vacuum suction countertop with T-slot
Vacuum suction tabletop with strong adsorption, does not shift boards, each area can be controlled individually; additionally features T-slots, making it more convenient for processing different materials.
Disc tool changer tool magazine
Automatic tool-changing tool magazine, the number of tool magazines can be increased according to different processes (10 tools/12 tools).
New Generation Control System
Jiabang standalone electric control cabinet, user-friendly design, Taiwan Xindai system, easy and convenient to operate.
Parameter
| Name | Manufacturer/Brand |
|---|---|
| Model | iGW-5WM |
| Bed frame | Heavy duty welding bed |
| Beam | Steel beams |
| Route | 2000*3000*1000 mmm |
| Five-axis head | AKEMDE(with 360 degree rotation. |
| Spindle | 9.0kW air-cooled automatic tool-changing spindle |
| System | Taiwan SYNTEC five-axis system |
| Cabinet | GOLDEN independent cabinet |
| Driver | Japan Yaskawa 1.3KW drive motor |
| Reducer | SHIMPO |
| Inverter | FULING |
| Table | Vacuum adsorption table |
| Guide | 30 TAIWAN XINIYUE |
