Products Description

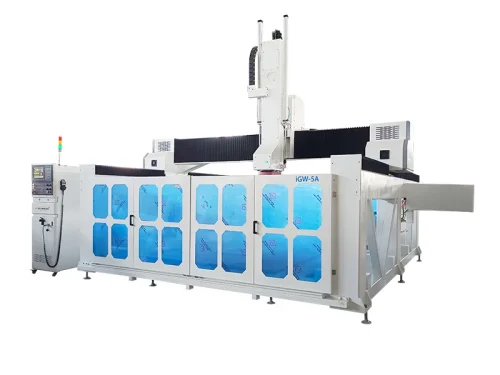

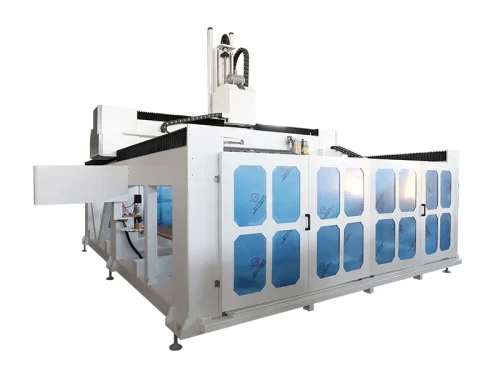

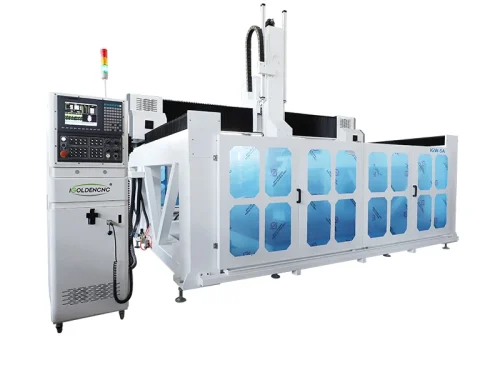

5-axis CNC machining center
A 5-axis machining center is a high-tech, high-precision piece of machinery, with the entire machine using high-quality components. It can perform a variety of complex and heavy-duty machining tasks. Featuring a moving table structure, it offers great flexibility and a wide machining range. It excels in machining curved surfaces, complex shapes, hollowing, punching, angled drilling, chamfering, and more. The working speed, feed rate, and cutting speed can all be controlled independently, greatly improving productivity.
Widely used in aerospace, military research, precision machinery, high-precision medical equipment, and conventional manufacturing industries.
Application
- Composite materials industry: trimming and punching of various composite materials such as plastic parts, fiberglass parts, and rubber and plastic products;
- Mold industry: 5-axis machining of fiberglass wood molds, casting wood molds, resin products, sludge models, and various non-metal molds;
- Ceramic sanitary industry: 5-axis machining of plaster molds, 5-axis machining of various plaster products;
- Furniture industry: 5-axis machining for solid wood furniture, 5-axis machining for various furniture mortise and tenon joints, 5-axis machining for staircase bends, and 5-axis machining for various furniture.
Product Details

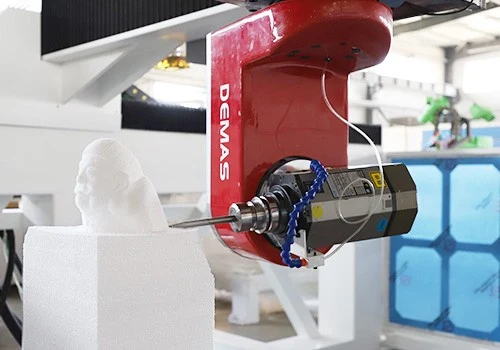

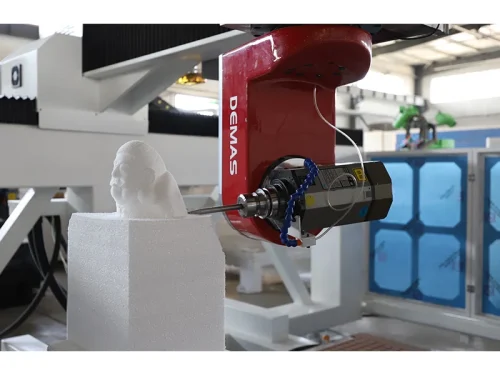

Demas five-axis head + 12kW water-cooled spindle
360° machining, high rotational accuracy, low vibration, low noise, good heat dissipation, durable, and long-lasting.

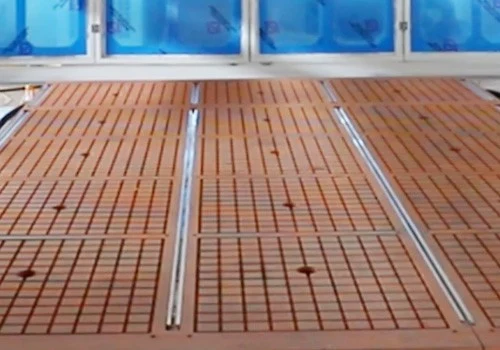

Vacuum suction countertop with T-slot
Vacuum suction tabletop with strong adsorption, does not shift boards, each area can be controlled individually; additionally features T-slots, making it more convenient for processing different materials.

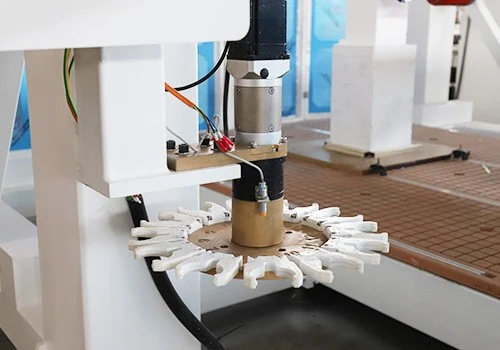

Disc tool changer tool magazine
Automatic tool-changing tool magazine, the number of tool magazines can be increased according to different processes (10 tools/12 tools).

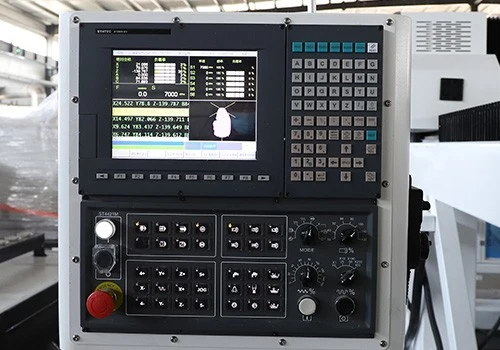

New Generation Control System
Jiabang standalone electric control cabinet, user-friendly design, Taiwan Xindai system, easy and convenient to operate.
Parameter
| Name | Manufacturer/Brand |
|---|---|
| Model | iGW-5GM-2030 |
| Bed frame | Heavy duty welding bed |
| Beam | Steel beams |
| Route | 2000*3000*1000 mmm |
| Five-axis head | AKEMDE(with 360 degree rotation. |
| Spindle | 12kw water-cooled spindle |
| System | Taiwan SYNTEC five-axis system |
| Cabinet | GOLDEN independent cabinet |
| Driver | Japan Yaskawa 1.3KW drive motor |
| Reducer | SHIMPO |
| Inverter | FULING |
| Table | Vacuum adsorption table |
| Guide | 30 TAIWAN XINIYUE |
OUR advantage
IGOLDENCNC employs more than 500 people worldwide. Equipped with an independent and strong core R&D team,
10+ years manufacturing experience
iGOLDENCNC’s laser machinery has been exported to more than 180 countries.
Strict Quality Control System
Which controls the product quality from raw materials, production, and delivery.
Productive Forces
The factory covers an area of 22,000 square meters with 3 production workshops
Product Quality
Each machine needs to go through 13 inspection processes from order to delivery.
24 hours full service
You can always enjoy comprehensive pre-sale services, free pre-sale consultation and free sample making from iGOLDENCNC.
