Products Description

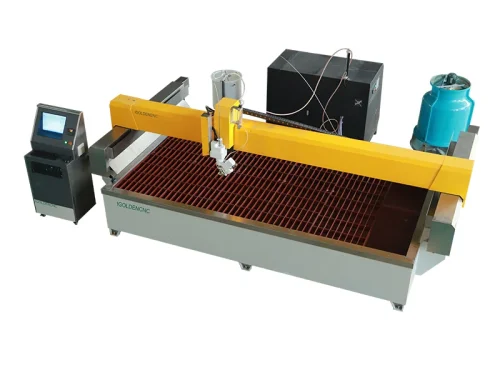

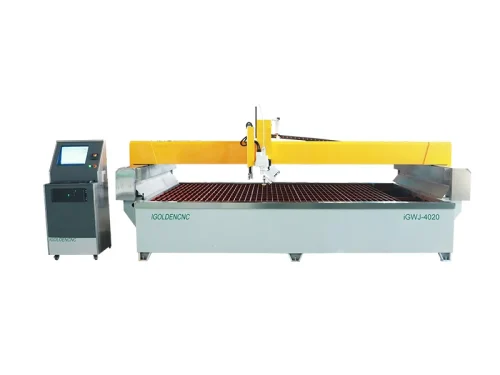

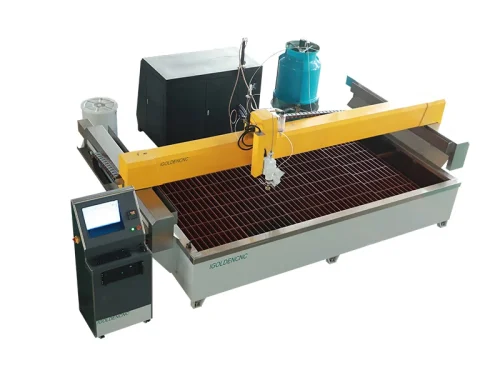

5 Axis Water Jet Cutting Machine

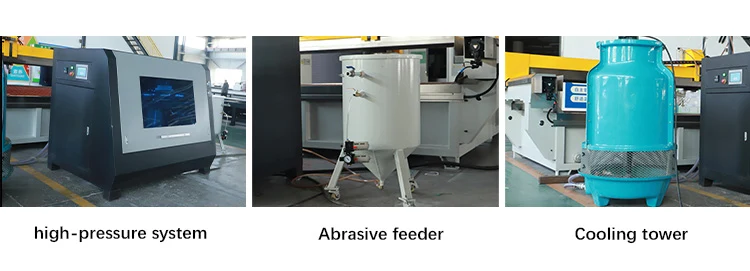

High pressure water cutting system mainly includes pressurization system, cutting platform, sand storage system, control system and auxiliary system.
Water cutting without thermal deformation, to avoid the physical and chemical changes of materials, widely adapted to the cutting and processing of various materials, has the reputation of “universal cutting machine”, the incision is smooth and flat without burr, generally no need to reprocessing, the equipment is controlled by numerical control system, high cutting precision, cutting joint less than 1.2mm, easy to cut, save materials, The process does not produce environmentally polluting waste;
Numerical control water knife for those other methods are difficult to cut materials such as aramid, titanium alloy and a variety of composite materials is very ideal processing means.
Samples
- Typical applications in the field of metal cutting: decoration, machine equipment shell, metal parts, etc.;
- Glass cutting: household appliance glass, lamps and lanterns, sanitary products, process glass, automobile glass;
- Ceramic and stone cutting: art puzzle;
- Clean water cutting of soft materials: automotive interior, sponge foam;
- Cutting of inflammable and explosive materials with low melting point.
CNC Water Jet Cutting Machine Details

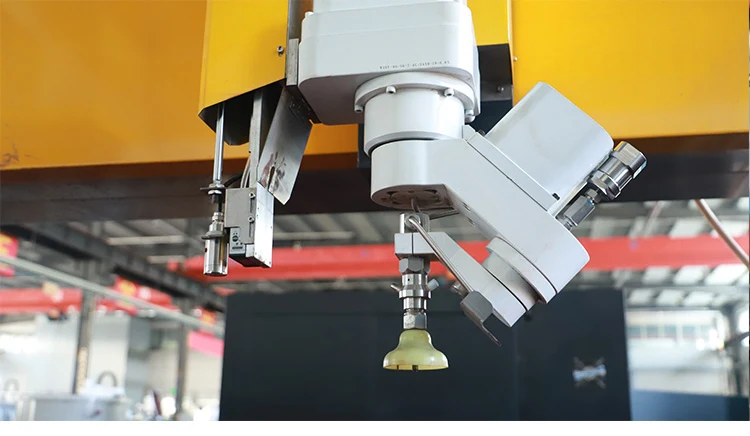

3D AC 5 axis cutting head
1.The cutting resultis much better.When cutting shaped sharp corners or continuous sharp corners,there is no obvious zero point at the corners;
2.A wide range of processes.It can make cylindrical parquet,large angle chamfer and other drawing which AB five-axis water jet can not be completed)
3.High processing efficiency. The C axis rotates infinitely, and the corner speed is fast,which improves the processing efficiency.

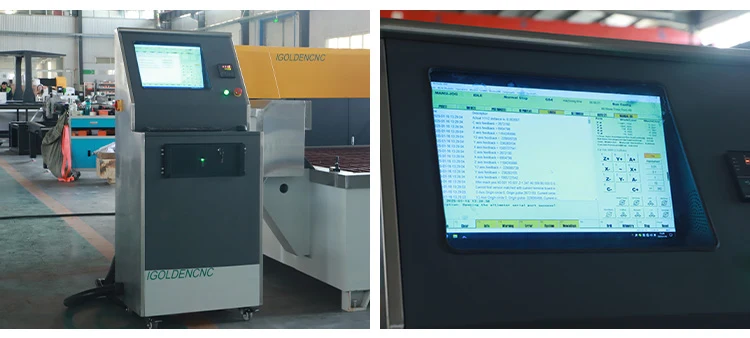

Adopt industrial PC + WEIHONG control system
Dedicated water jet cutting software with graphic simulation running function, graphic input automatic programming function.
CNC waterjet cutting machine Parameters
| Machine tool structure | Gantry type |
|---|---|
| Tank range | 4000mm×2000mm |
| Cutting accuracy | ±0.1mm (Under the condition that the cut is not deformed, the cutting tolerance is 0.2mm) |
| Driving | WEIHONG system, servo motor |
| X-axis no-load speed：0-6000 mm/min； | |
| Y-axis no-load speed: 0-6000 mm/min； | |
| Z-axis no-load speed:0-200 mm/min； | |
| A axis ±59°；0.2KW | |
| C axis 360° ；0.2KW | |
| Power source | 240V/380V/400V/460V/50HZ/60HZ |
OUR advantage
IGOLDENCNC employs more than 500 people worldwide. Equipped with an independent and strong core R&D team,
10+ years manufacturing experience
iGOLDENCNC’s laser machinery has been exported to more than 180 countries.
Strict Quality Control System
Which controls the product quality from raw materials, production, and delivery.
Productive Forces
The factory covers an area of 22,000 square meters with 3 production workshops
Product Quality
Each machine needs to go through 13 inspection processes from order to delivery.
24 hours full service
You can always enjoy comprehensive pre-sale services, free pre-sale consultation and free sample making from iGOLDENCNC.
