Products Description

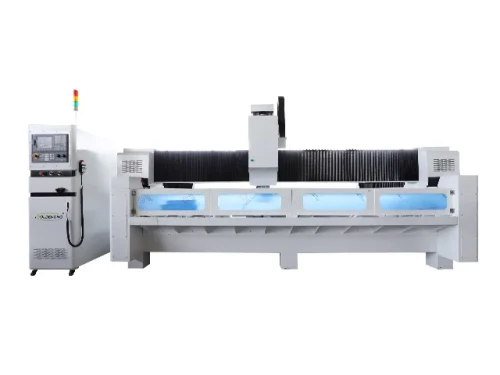

ATC Stone CNC Machining Center
The CNC stone machining center is a fully automatic stone CNC machinery. this stone CNC machine can also realize drilling, milling, grinding, and cutting functions. Stone CNC machining center has many advantages, such as complete functions, environmental protection, high intelligence, and simple operation.
The scope of application of quartz stone machining centers are kitchen cabinet countertops, stone coffee table desktops, cutting of basin holes, bar counters, etc. The main uses of CNC processing stone center are front roman side processing, rear water-retaining round bottom processing, basin hole cutting processing, special-shaped cutting, and polishing.
Application
- Decoration industry: special-shaped lines and relief carvings on stone background walls;

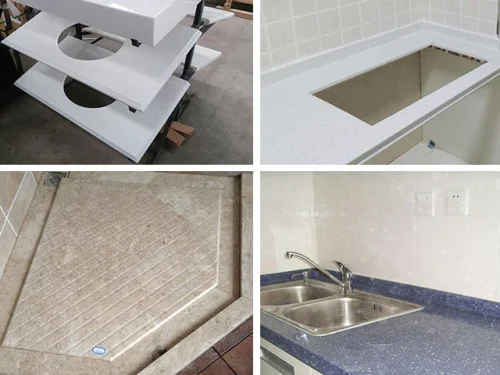

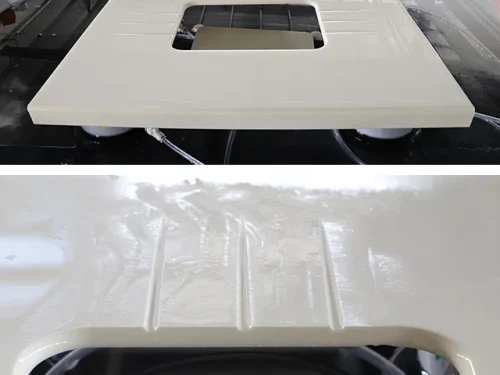

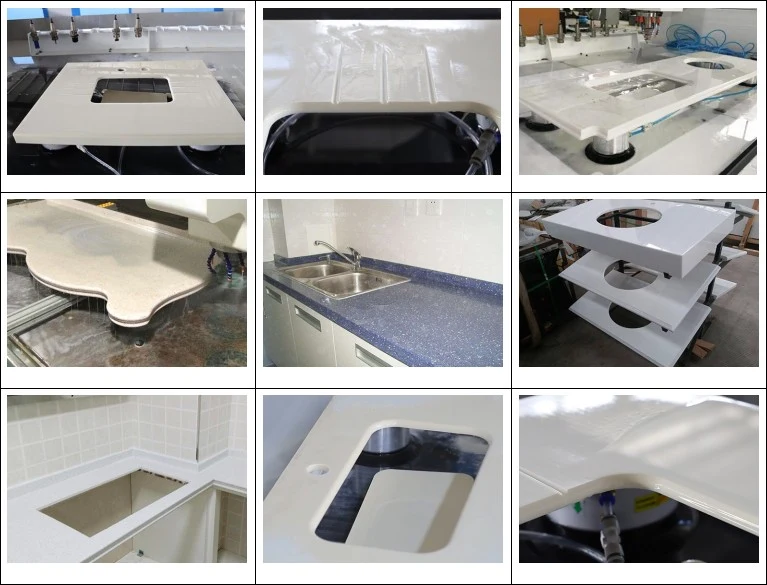

- Stone countertop digging basin holes and European-style edging: suitable for cabinet artificial stone, quartz stone, granite, marble countertops and sinks, kitchen countertops, bathroom countertops, special-shaped bar counters, stone coffee table desktops, cutting of basin holes, back-arc water Molding and polishing, etc;
- Drilling, grinding, trimming, carving, cutting, polishing, carving of other special-shaped stones, ceramics, glass and ceramic stones.
Product Details

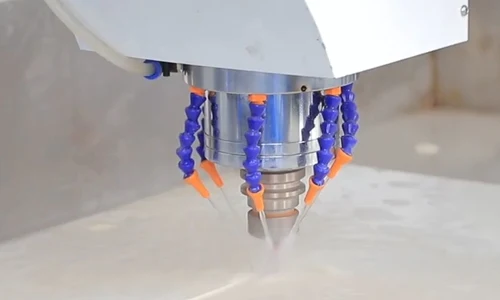

Water cooled automatic tool change spindle
5.5KW/7.5KW water-cooled tool change spindle, high rotation accuracy, small vibration, low noise, good heat dissipation, grease lubrication high temperature resistance, durable, long life.
In-line tool changing tool library
Automatic tool changing tool library, the number of tool library can be increased according to different processes.
Intelligent Control System
IGOLDEN independent electric control cabinet, humanized design, Taiwan SYNTEC system optional, easy to operate.

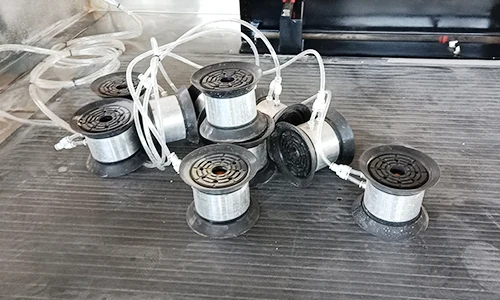

Positioning adsorption block
The double-sided sealed suction cup system combined with high-power adsorption pump + auxiliary positioning device effectively increases the adsorption capacity of the suction cup to ensure that the stone does not shift during processing.
Parameter
| Name | Manufacturer/Brand |
|---|---|
| Model | iGS-ATC-3015 |
| Working area | 1500*3000*500mm |
| Max. Running Speed | 20000mm/min |
| Max. Working Speed | 10000mm/min |
| Spindle power | 7.5kw Water cooled tool change spindle |
| Spindle speed | 8000rmp |
| Positional accuracy | 0.05mm |
| Repositioning Accuracy | 0.02mm |
| Command Language | G code |
| Working Voltage | 380v/50Hz |
| Machine Body | Square Tube Welding Structure |
| Gantry | Steel Structure |
| Spindle | Mechanical spindle |
