Products Description

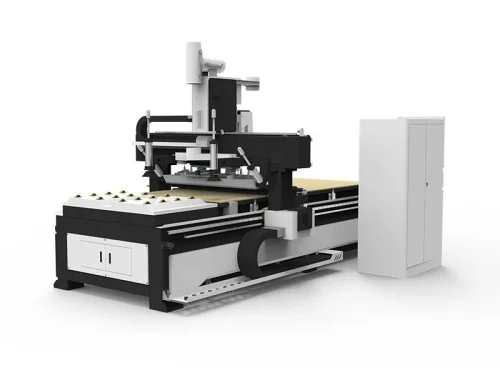

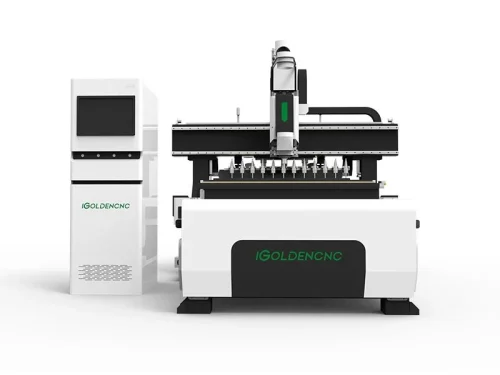

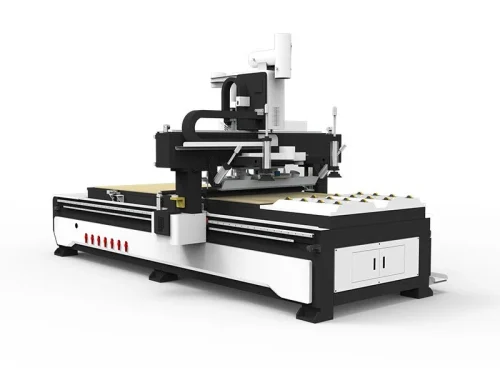

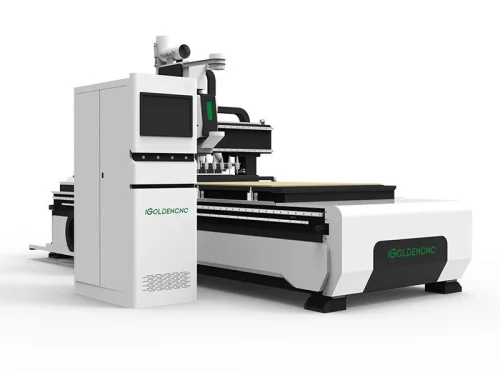

1325 Straight-Line Cutter CNC Machine
The equipment is compatible with edge banding machines, laminating machines, and other production lines, suitable for whole-house customization and various types of furniture manufacturing (cabinets, wardrobes, office furniture, panel furniture, etc.), and can complete complex processes such as cutting, grooving, engraving, and soft-wrapped feature walls, significantly saving labor costs.
Application
● Wood Furniture Industry: solid wood and composite doors, cabinet doors, sliding doors, paint-free doors, painted doors, soft-packed doors, flat panel engraving, solid wood carving, panel furniture processing, antique-style mahogany furniture processing, solid wood mural carving, etc.;
● Wooden Crafts Industry: clocks and clock stands, craft photo frames, calligraphy cards, appliance countertops, sports equipment, thin aluminum plate engraving, etc.;
● Advertising Industry: acrylic, PVC, MDF, artificial stone, plexiglass, plastic, copper, aluminum, and other soft metal sheets.
Product Details

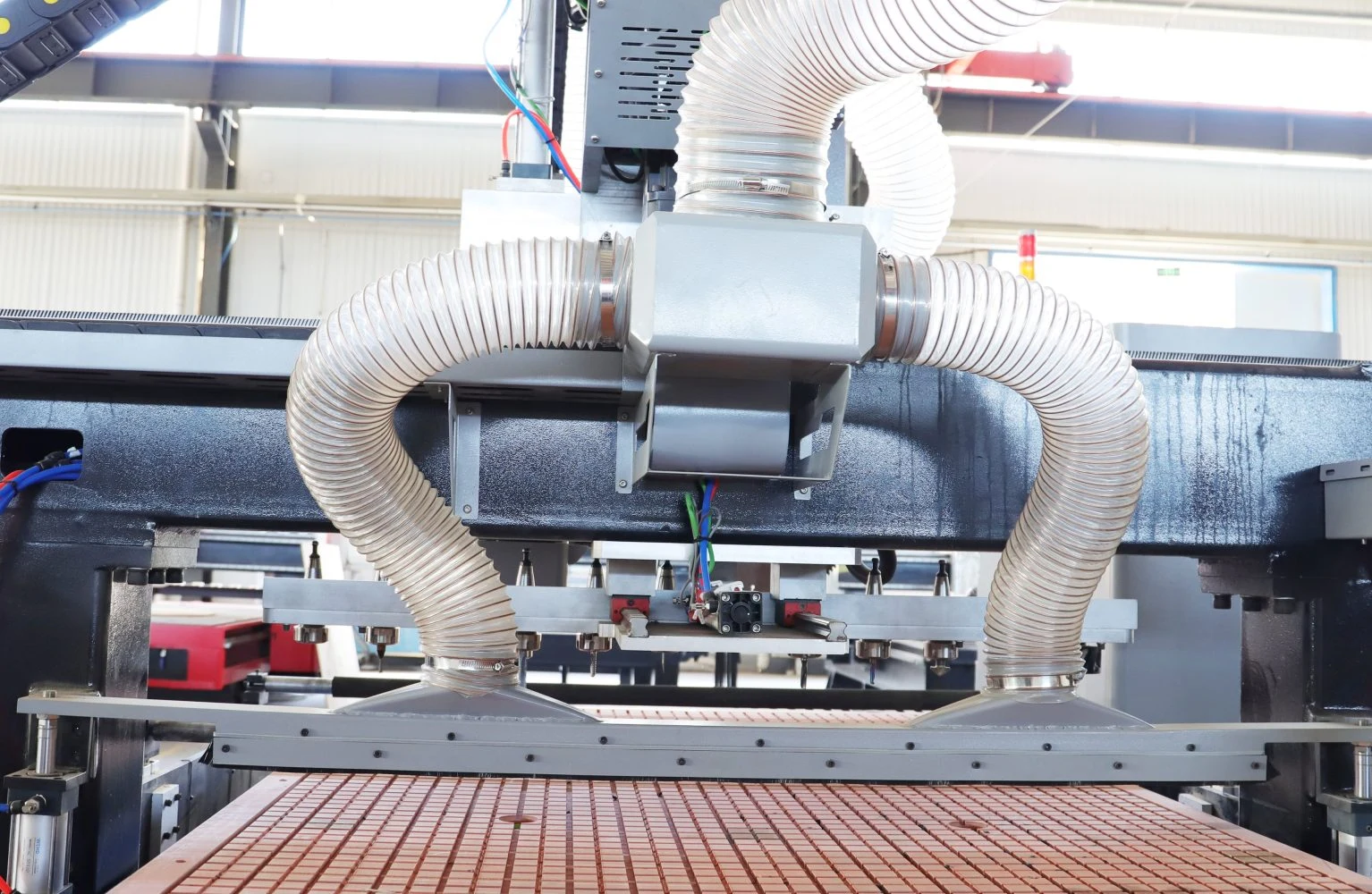

Dual-Cylinder Vacuum System
The dual-cylinder design achieves graded dust filtration, increasing suction power by 40%; the high-power motor provides continuous output, completely eliminating dust generated during carving and cutting.

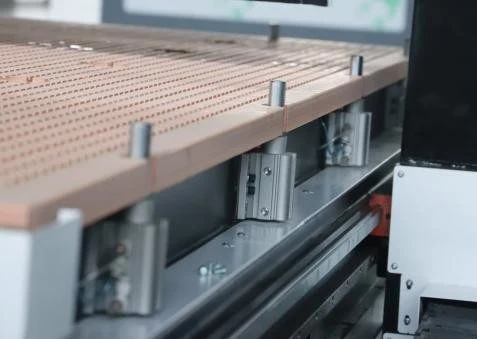

High-precision positioning cylinder
Using industrial-grade pneumatic positioning technology to achieve millimeter-precision locking
Second-level response—the cylinder acts instantly, and the plate automatically locks upon contact with the table, reducing manual adjustment time;

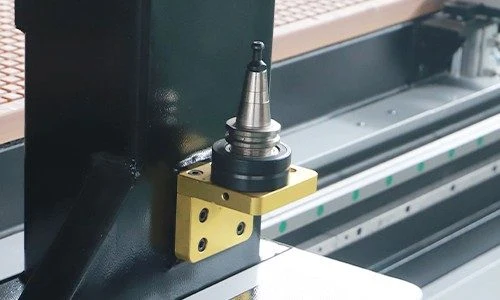

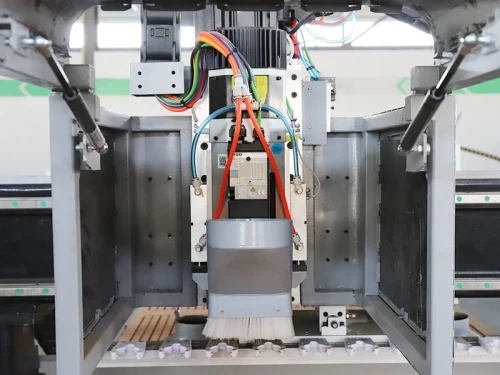

Tool Holder
High-rigidity alloy structure prevents tool runout, ensures no looseness when changing tools, and increases lifespan by 50%; maintenance-free design thoroughly solves the problem of unstable manual tool installation accuracy.

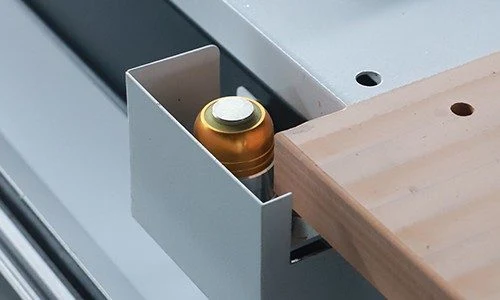

Automatic Tool Setter
No manual intervention, ±0.01mm precise tool length measurement, 50% improvement in tool change efficiency; intelligent collision detection to eliminate the risk of tool breakage.

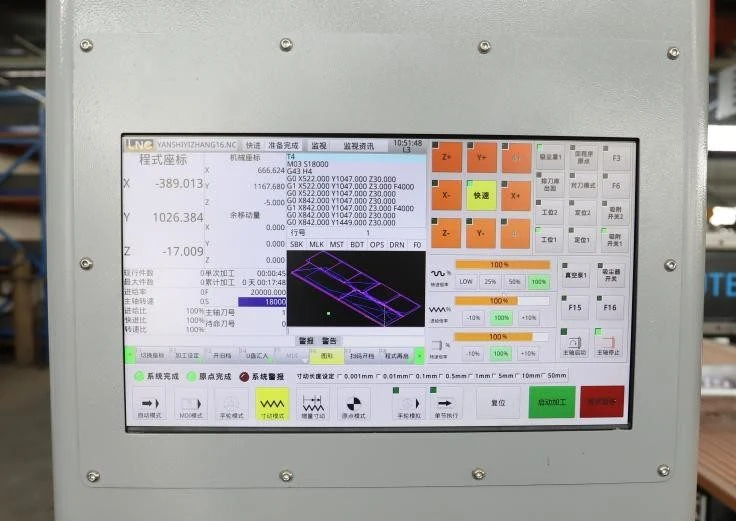

Baoyuan System
1. Features USB reading of G-code for drawing.
2. You can manually write G-code for quick machine operation.
3. After being powerful, it has a dedicated interface design, making operation simpler.
4. Can store over 10,000 drawings.
Parameter
| Technical indicators | parameter |
|---|---|
| Model | iGC-LT1325 |
| Working area（X,Y,Z） | 1300*2500*250mm |
| Max. working speed | 30000mm/min |
| Bed | Heavy-duty bed welded with square tubes, aging annealed, no deformation |
| Spindle Power | 9.0kw air-cooled tool change spindle, 24000rpm |
| mesa | PVC vacuum adsorption table |
| Rack | Taiwan Hiwin guide rail + YYC high-precision rack + hard helical gear shaft |
| Lead Screw | Taiwan TBI grinding screw |
| Drive motor | High power servo motor + Z-axis brake |
| Reducer | SHIMPO |
| Frequency Converter | Fuling |
| Vacuuming | Fuling |
| Vacuum Pump | 5.5KW air-cooled vacuum pump |
