Products Description

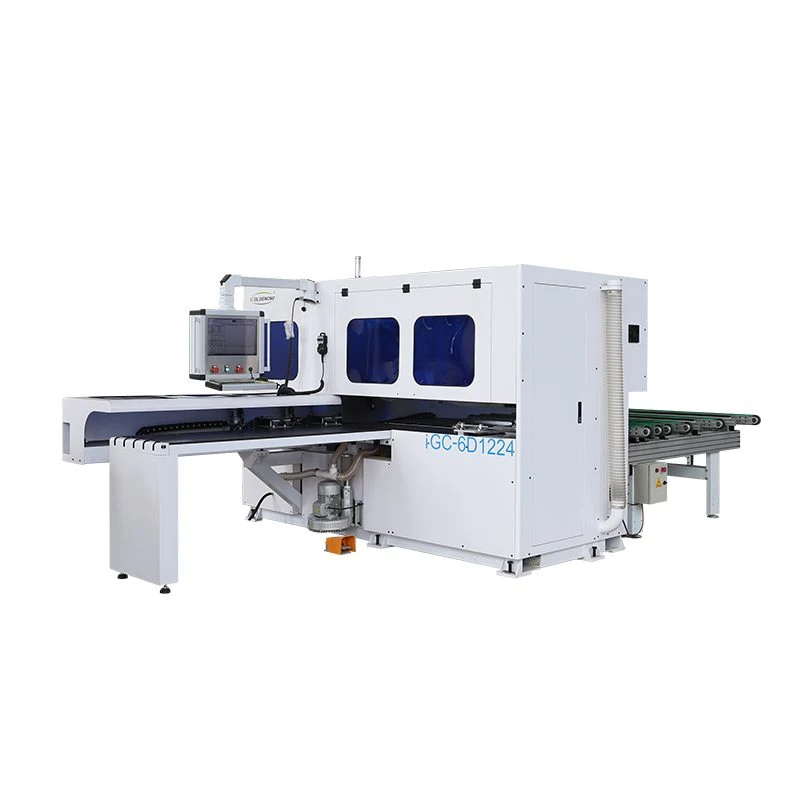

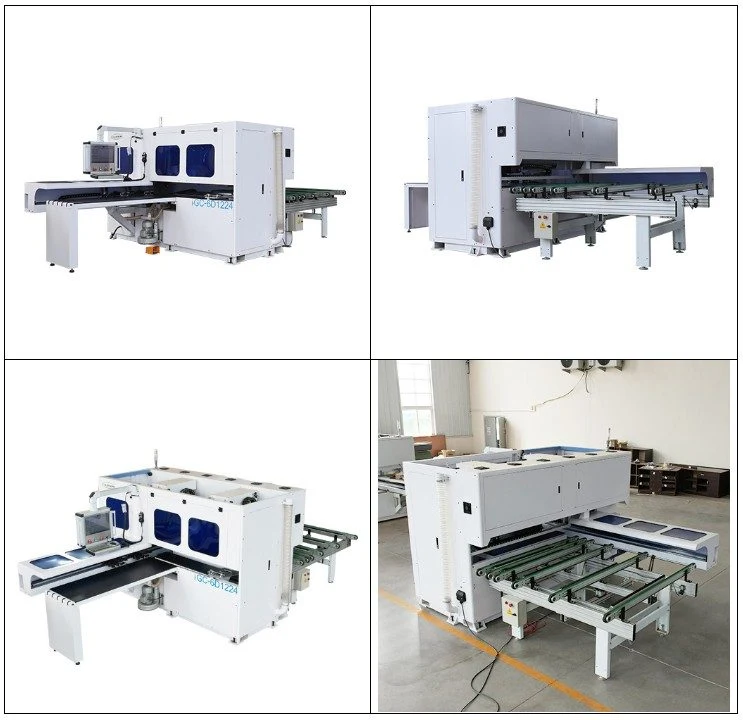

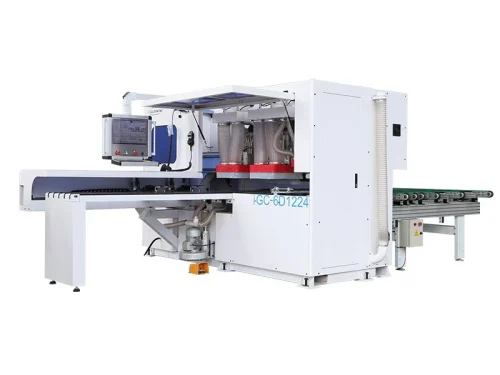

CNC six-sided drilling machine

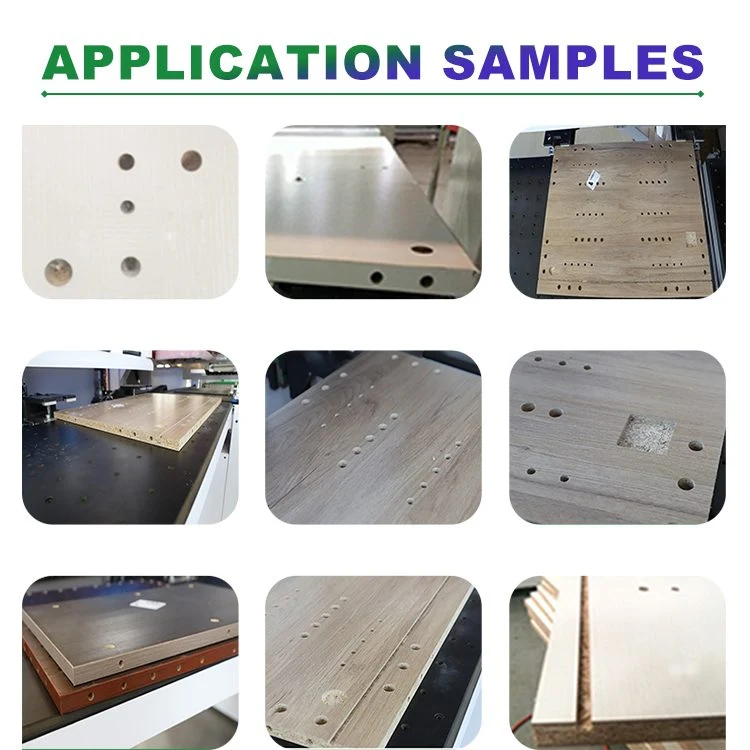

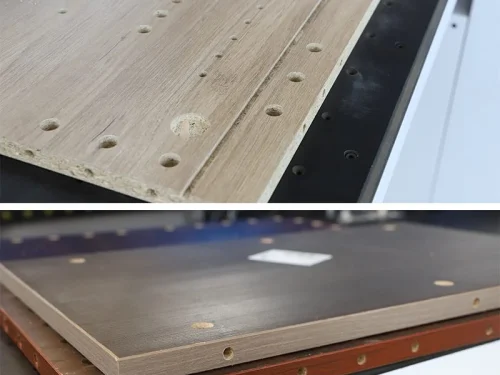

- Mainly used in the panel furniture and whole-house custom furniture industry: auxiliary processing such as flat cutting, milling, chamfering, punching, and carving of panel furniture including cabinets, wardrobes, office furniture, custom furniture, computer desks, panel furniture, wooden speakers, and wooden kitchenware.
Application
One-time six-sided drilling, double-sided grooving and milling, no need to flip the board, efficiency doubled.
Double clamp clamping of the board, one-time positioning, high precision.

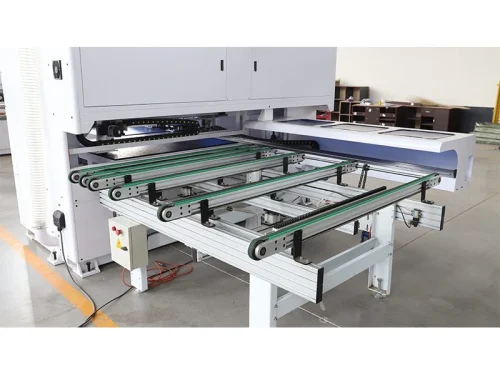

Multiple feeding and discharging modes are available: forward in and forward out, forward in and backward out, backward out with matching rotation, flexible combinations.
Professionally customized drilling, achieving minimal avoidance and increasing drilling speed.
Supports the direction of marking boards and the thickness of edges, making operation more convenient and reducing error rates.
Automatic tool path optimization, selecting the discharge method based on the board, no manual settings required, processing path more reasonable, higher processing efficiency.
Automatically applies appropriate drilling processes according to the relationship between drilling depth and board thickness.
Reasonably select the front-end panel saw (electronic panel saw or CNC panel saw) based on the customer’s factory situation, and match with industrial robots and rotary lines to form the best intelligent whole-plant planning.
Product Details

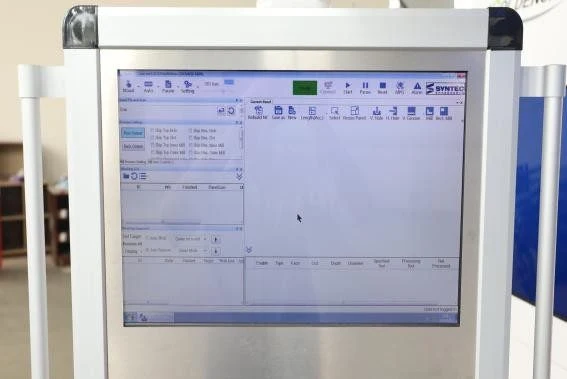

Taiwan New Generation Control System
◆ User-friendly interface
◆ Easy operation
◆ Fast startup: Boot completes within 30 seconds, reducing system reboot waiting time and improving production efficiency;
◆ Highly intelligent and automated: Automatic loading and unloading combined with sorting processing functions to achieve factory automation production;
◆ Integration with Industry 4.0: Through the Industry 4.0-EtherCAT communication protocol, full factory production automation and cloud monitoring functions can be achieved.
Cantilever control console
◆The angle can be adjusted freely according to the operator’s comfort, improving work comfort;
◆Equipped with a delivery scanner, making scanning and processing easier and more convenient.

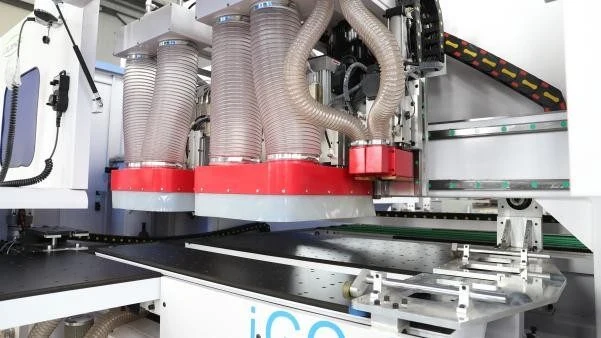

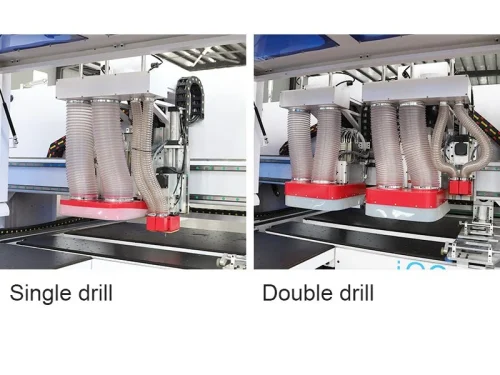

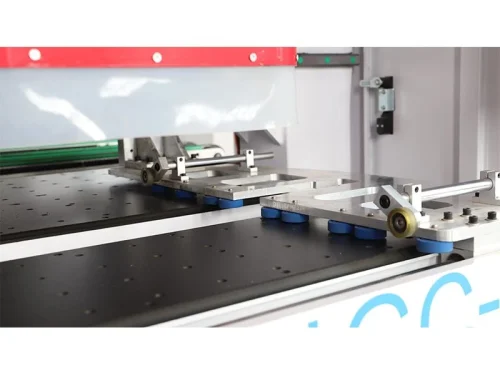

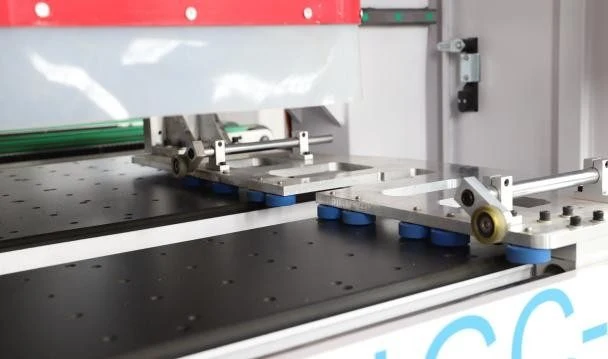

Row Drill Package
◆ Upper drilling package: equipped with a total of 9 vertical drilling shafts and 4 horizontal drilling shafts;
◆ Lower drilling package: equipped with a total of 4 vertical drilling shafts;
◆ Added various pressing plates and pressure wheels, ensuring high punching accuracy;
◆ Standard with a pressure boosting valve, effectively ensuring the drilling depth of hinge holes.

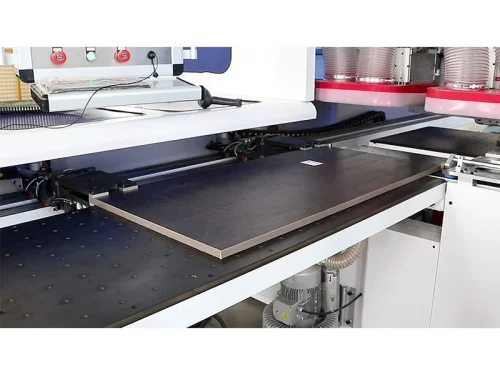

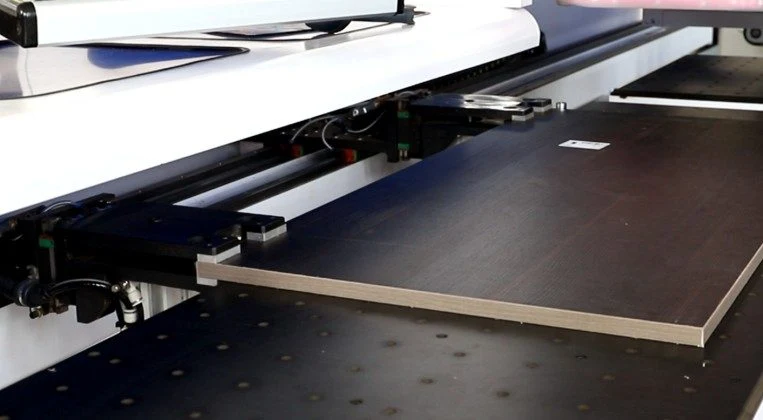

Double Clamp Long Guide Rail
◆ Double clamps, the maximum stroke of the clamp shaft can reach 5000mm, which means processing 2800mm long plates can reduce the number of clamp changes;
◆ Floating clamp mode: ensures the positioning accuracy of the plate when changing clamps;
◆ Blowing function: the floating clamp adds a blowing function, which can effectively prevent dust from entering when the clamp opens and closes.
Side Unit
◆Using Q235 high-quality steel structure material, with the highest strength and best toughness, to ensure the stability of the side support.
Parameter
| Description | Parameters |
|---|---|
| Model | iGC-6D-1224 |
| Machine Body | Square Tube Welding Structure |
| Spindle | HQD 3.5kw |
| Worktable | Gas Floating Worktable |
| Control System | TAIWAN SYNTEC |
| Number of tools | 9 vertical + 4 horizontal + 1 knife |
| Transmission motor | SYNTEC Servo Motors and Drives |
| Inverter | FULING |
| Workpiece length | 200-2800mm |
| Workpiece width | 50-1240mm |
| Workpiece thickness | 12-45mm |
| Max. gripper speed | 90m/min |
| Y/Z max. speed | 50/30 m/min |
