Products Description

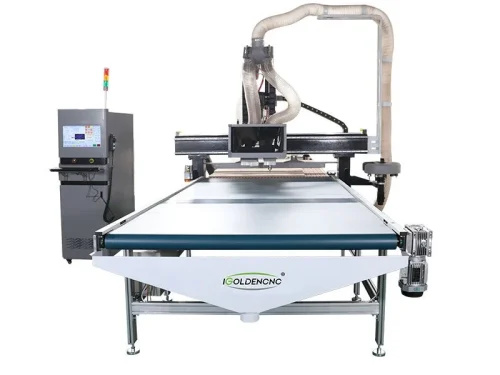

1530 – Disc Tool Changer Cutting Machine Automatic Loading and Unloading
All-in-one process: A single tool magazine covers all processes, suitable for customized, multi-style production. Faster tool changes: Rotary positioning, 2–4 seconds per change, faster than linear arrangement, highly efficient. Higher precision: Single-spindle precision tool magazine, accurate repeat positioning, finished products fit perfectly. Easy maintenance: Sealed tool magazine prevents dust, with a lower failure rate than linear tool changes.
Application

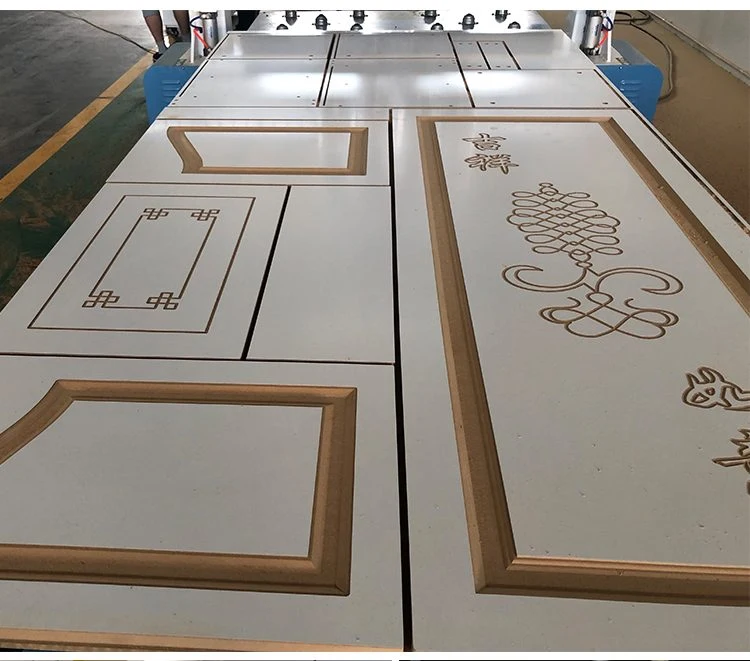

1.Panel Furniture: Cabinets, wardrobes, shoe cabinets, door panels (cutting / grooving / hinge holes / shaping).
2.Whole House Customization: Integrated processing of cabinet bodies and door panels, more advantageous for small batches and multiple orders.

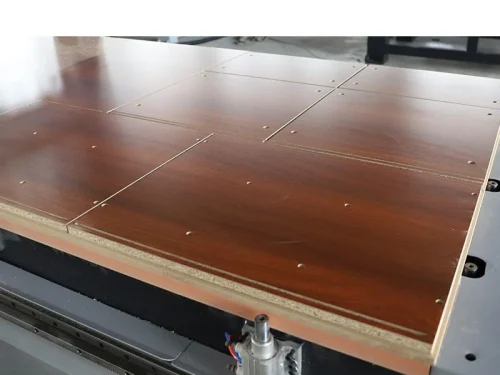

3.Other Panels: Cutting and carving of MDF, particle board, plywood, acrylic, PVC, etc.
Product Details

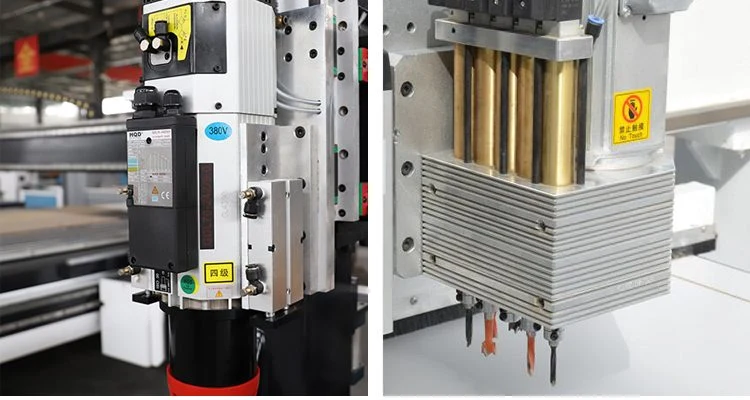

9KW HQD air cooled spindle +5+4Vertical Drilling Head

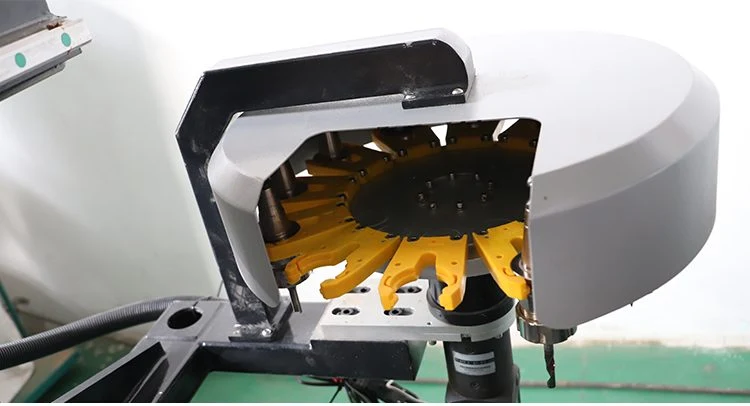

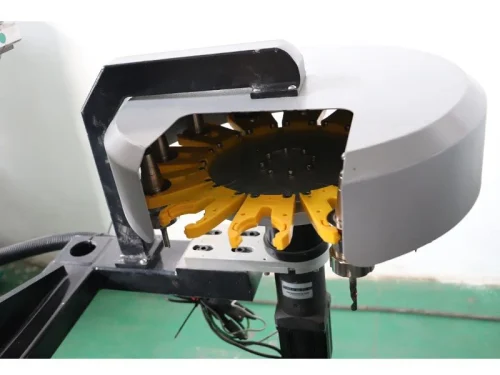

12 automatic tool changers

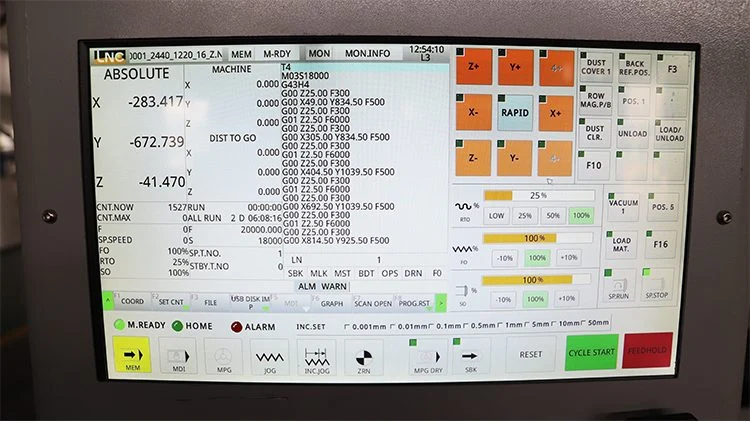

Taiwan LNC System

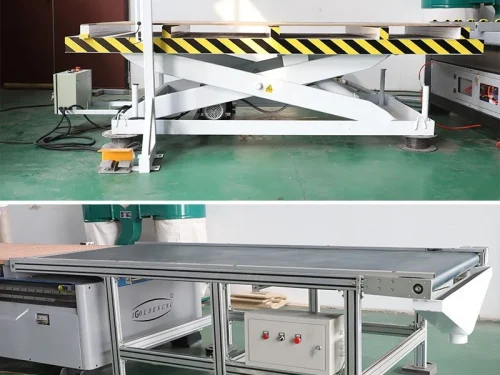

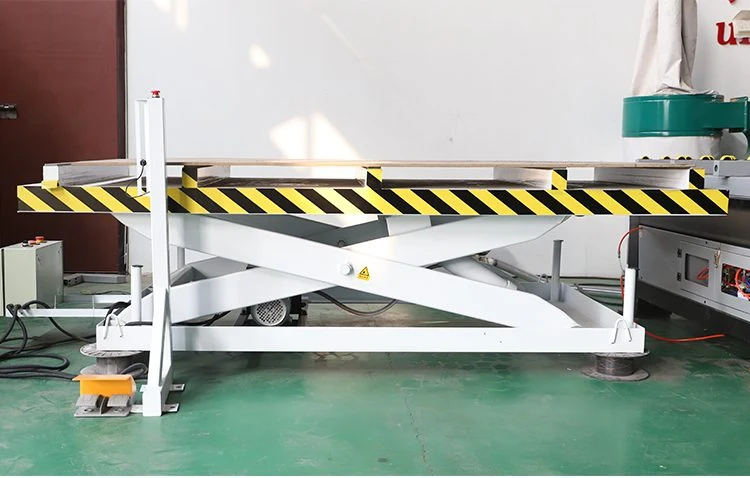

Automatic feeding

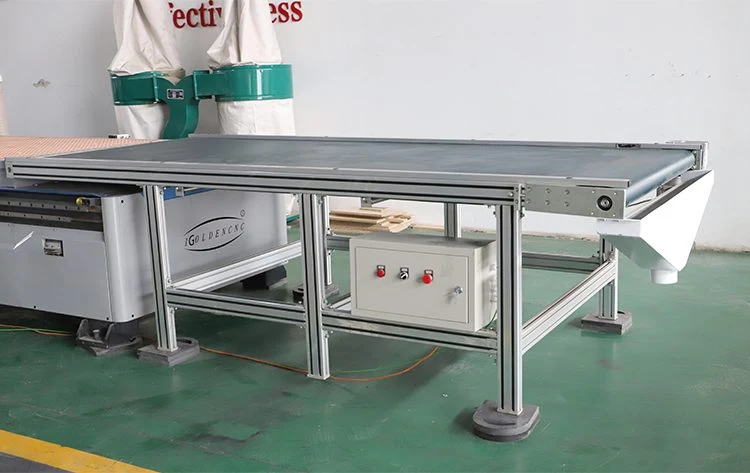

Automatic blanking
Parameter
| Working area | 1500*3000*200mm |
|---|---|
| Transmission | Taiwan Helical rack and gear |
| Spindle | 9KW HQD air cooled spindle |
| Vertical Drilling Head | 5+4 |
| Guide rails | Taiwan PDF 25mm |
| Inverter | FULING 11kw |
| Table structure | Vacuum table |
| Vacuum pump | 7.5KW |
| Motor | Servo motor 1500w |
| Driver | Servo Driver |
| Reducer | Japan Shimpo |
| Control system | Taiwan LNC |
| Dust collector | 5.5kw |
| Spindle collets | ER32 |
