Products Description

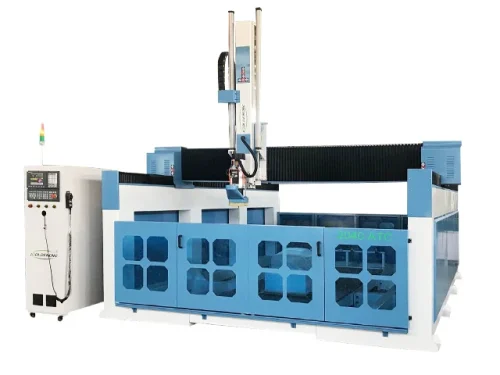

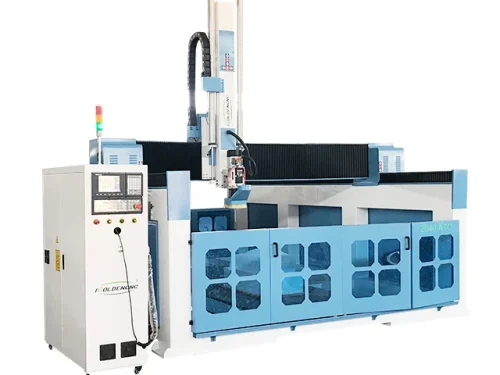

CNC Planer Milling Machine 4-Axis Machining Center

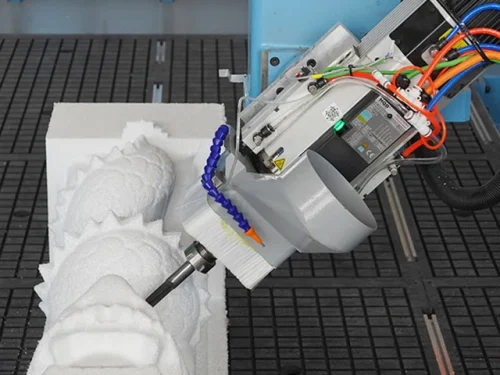

The spindle can swing 180° and is optionally equipped with 8 linear tool changers to meet the demands of different processing techniques. It is capable of full-size 3D carving and surface machining. It is also known as a foaming CNC planing machine, mold CNC planing machine, or EPS CNC engraving machine. It is used for processing molds, large three-dimensional surfaces, wood, EPS, and other materials.
Application

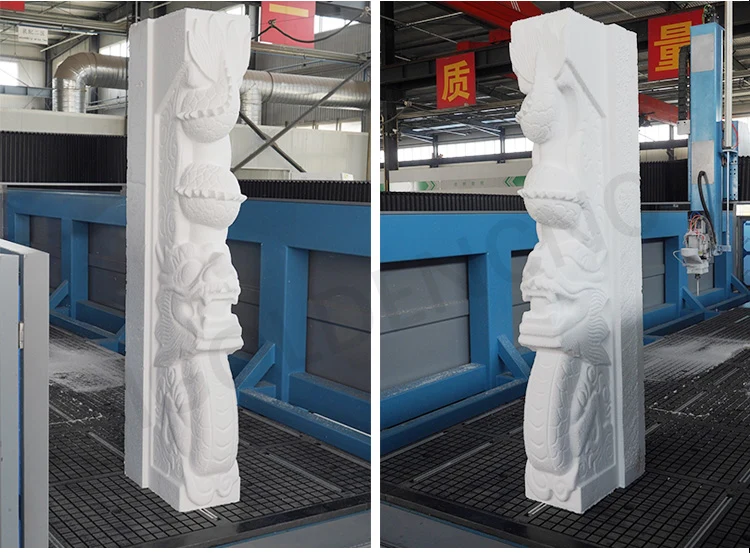

Carving various non-metallic materials such as foam, lost foam, automotive foam molds, yacht molds, large ship wooden molds, casting wooden molds, engineering plastic materials, aerospace wooden molds, propellers, train wooden molds, etc.
Processing of foam automotive stamping molds, casting wooden molds, automotive interiors, and engineering plastic materials.
Other industry molds: electrical appliance molds, lighting molds, ceramic sanitary ware, large musical instrument 3D surfaces, musical instrument molds, home appliance molds, air conditioner molds, automobile molds, automotive interior molds, etc.
Product Details

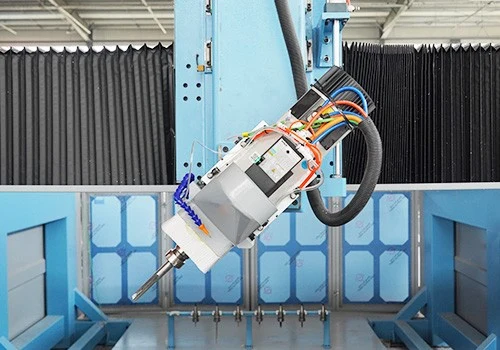

Hanqi 9.0kW Air-Cooled Automatic Tool Change Spindle
High rotational accuracy, low vibration, low noise, good heat dissipation, grease lubrication resistant to high temperatures, durable and long-lasting.

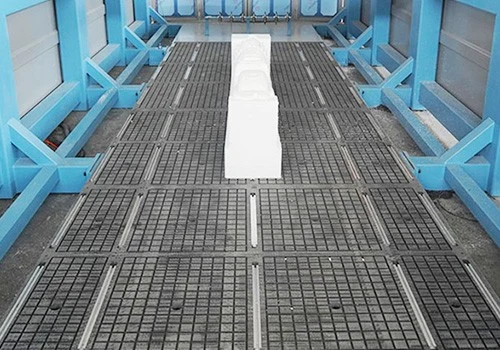

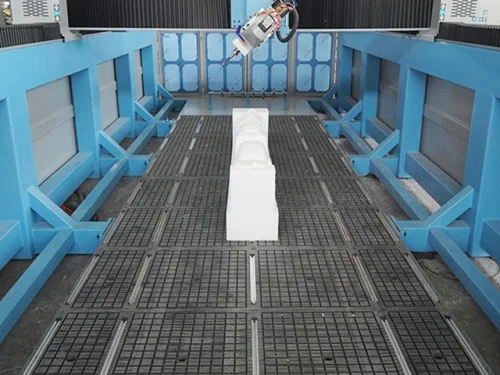

Vacuum suction tabletop with T-slot
Vacuum suction countertop with strong suction power, no board slippage, and each area can be controlled individually; additionally features T-slots, making it more convenient for processing different materials.

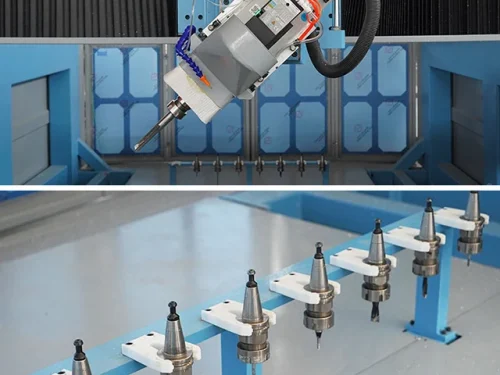

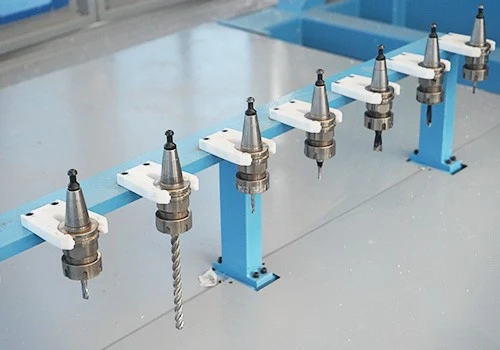

Inline tool magazine for tool change
Automatic tool-changing tool magazine, the number of tool magazines can be increased according to different processes (10 tools/12 tools).

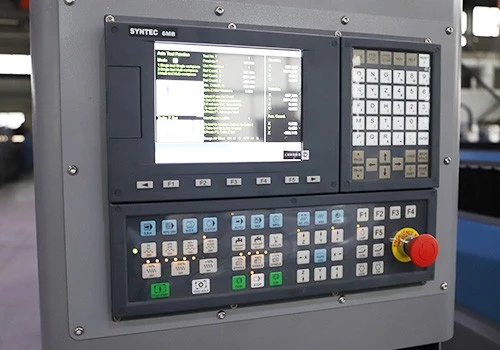

New Generation Control System
Jiabang standalone electric control cabinet, user-friendly design, Taiwan Xindai system, easy and convenient to operate.
CNC Planer Four-Axis Machining Center Parameters:
| Technical indicators |
parameter | |
| Configuration 1 | Configuration 2 | |
| Model | iGW-MC-2040 | iGW-MC-1530 |
| Control system | SYNTEC | DSP/Nc studio /syntec |
| Spindle | HQD 9.0kw ATC air cooling | |
| Speed Speed | 1800rpm | |
| Woring area | 2000*4000*900mm | 1500*3000*800mm |
| Repositioning Accuracy | 0.02mm | |
| Machine Body | Square Tube Welding Structure | |
| Guide Rails | Taiwan HIWIN | |
| Driver | Japan YASKAWA Servo Drive and Servo Motor | |
| Reducer | Japan SHIMPO | |
| Worktable | Aluminum profile +PVC | |
| Frequency Converter | Fuling | Fuling |
| Electrical Components | France SCHNEIDER | France SCHNEIDER |
OUR advantage
IGOLDENCNC employs more than 500 people worldwide. Equipped with an independent and strong core R&D team,
10+ years manufacturing experience
iGOLDENCNC’s laser machinery has been exported to more than 180 countries.
Strict Quality Control System
Which controls the product quality from raw materials, production, and delivery.
Productive Forces
The factory covers an area of 22,000 square meters with 3 production workshops
Product Quality
Each machine needs to go through 13 inspection processes from order to delivery.
24 hours full service
You can always enjoy comprehensive pre-sale services, free pre-sale consultation and free sample making from iGOLDENCNC.
