Products Description

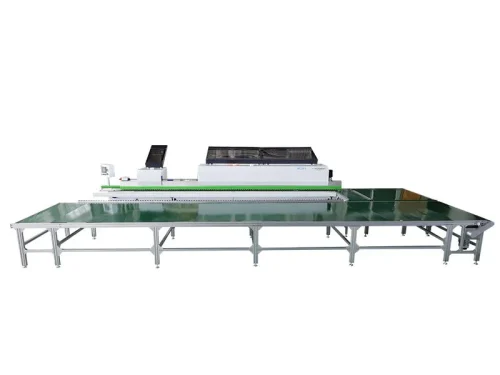

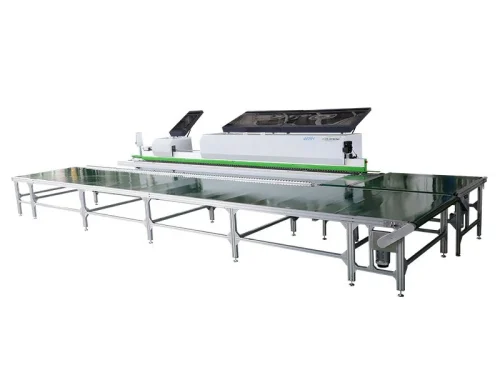

Da Ji Dong Edge Sealing Machine Rotary Line

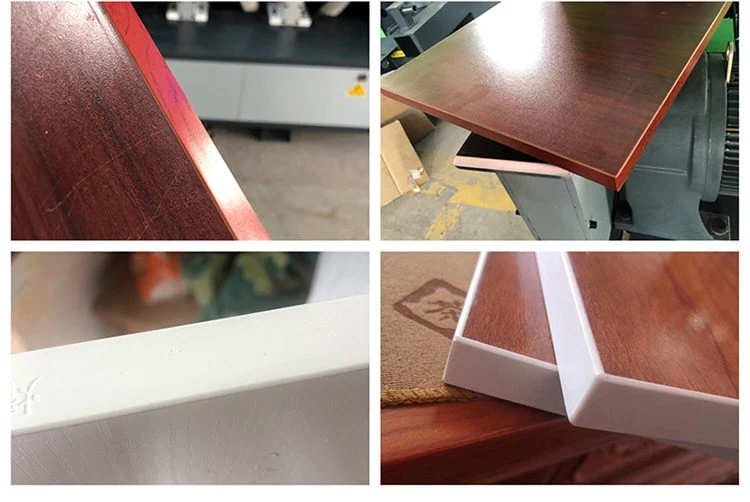

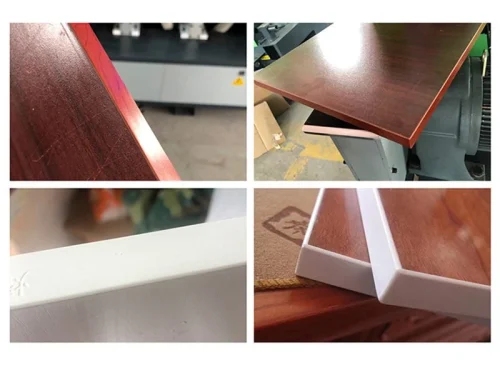

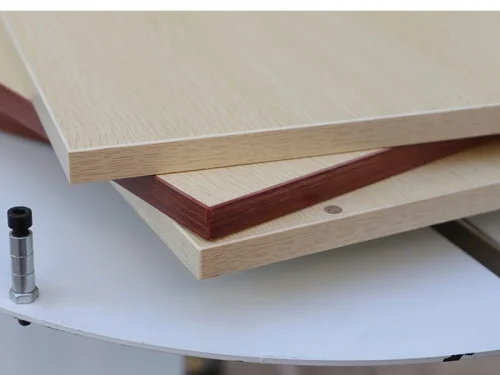

- Suitable for straight edge banding and trimming of medium-density fiberboard, blockboard, solid wood panels, particle board, polymer door panels, plywood, etc., this equipment operates stably, is reliable and durable, and is moderately priced, making it especially suitable for manufacturers of medium to large-sized furniture, cabinets, and other panel furniture.
Configuration Introduction
Application
Uses imported motors and high-quality electrical components.
High precision and high work efficiency.
Automatic and precise glue application program with integrated dual finishing.
Even glue application and stable conveying.
All working areas and specifications can be customized according to your requirements.

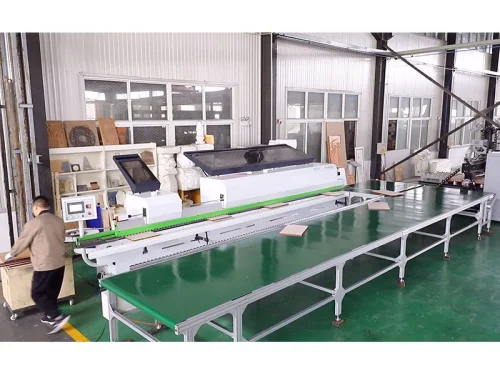

A rotary line device can be added, saving labor costs, allowing quick return on investment, meeting production line demands, fully automatic intelligent operation, greatly improving efficiency.

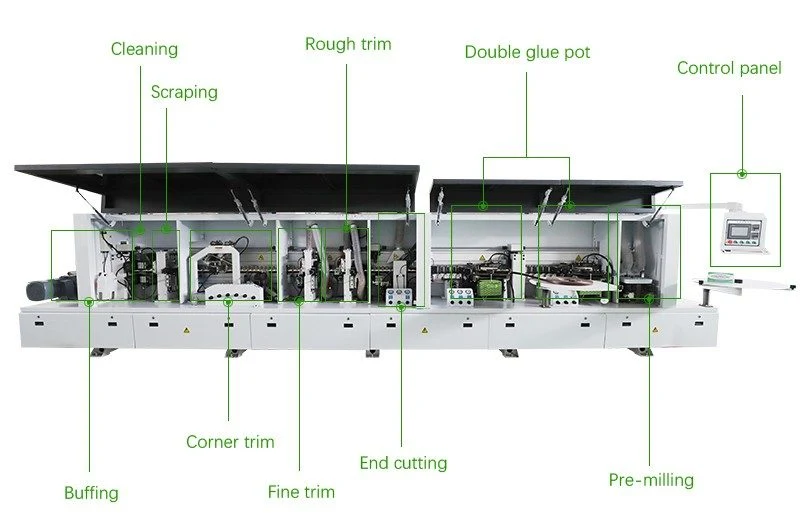

Product Details

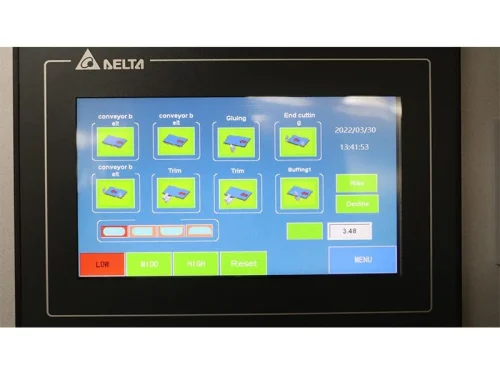

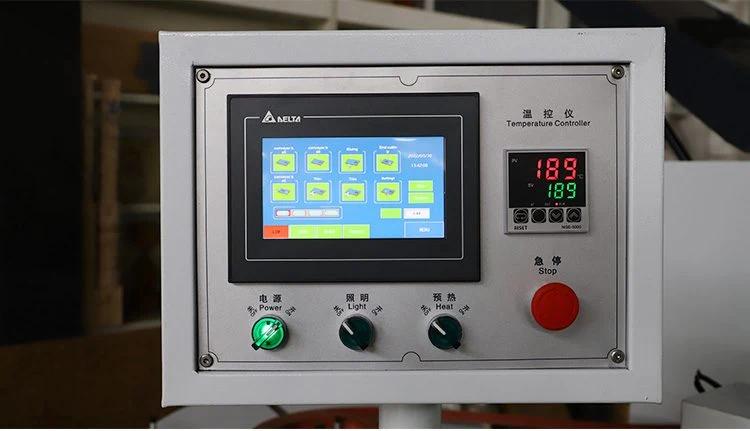

DEITA PLC control system
The independent LCD screen has a touch screen speed control function, and you can see theoperation process of the machine more clearly, real-time monitoring, real-time adjustment, andmore precise.
Pre-milling
When the edge-sealing surface of the plateis not flat, it can be milled first and then gluedand pressed.

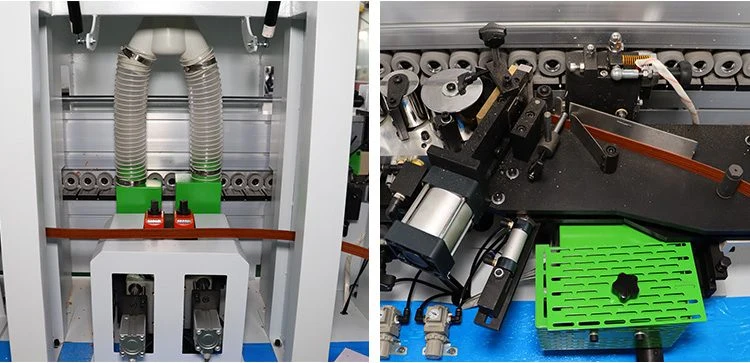

Gluing
Non-sticky pot, uniform sol, cylinder controlpressure roller, better tape effect.

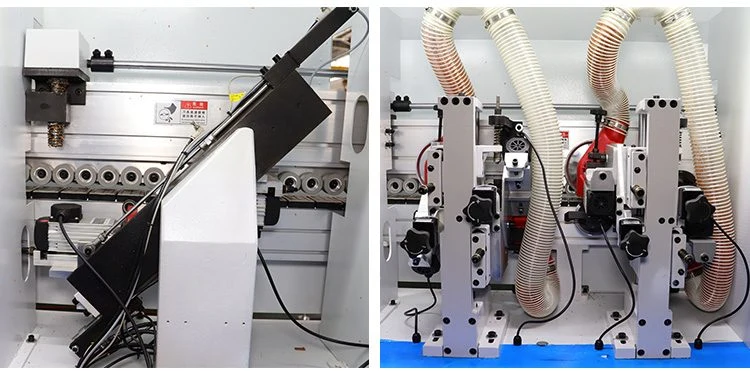

End cutting
Through the structure of automatic profilingand high-frequency high-speed motor, theredundant edge bands before and after are cutoff to ensure a smooth and smooth section.

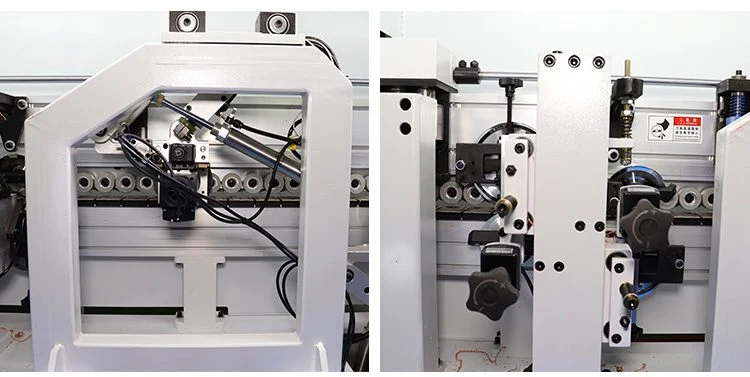

Rough trim and Fine trim:
which is used to trim the excess edge bandingmaterial on the upper and lower parts of theprocessed sheet edge band, so that the upperand lower parts of the trimmed sheet are
smooth and smooth.
Corner trim
The chamfering effect is repaired, and theedge banding effect is more round and smooth.
Scraping
It is used to eliminate the ripple marks causedby the non-linear motion cutting process of thetrimming.

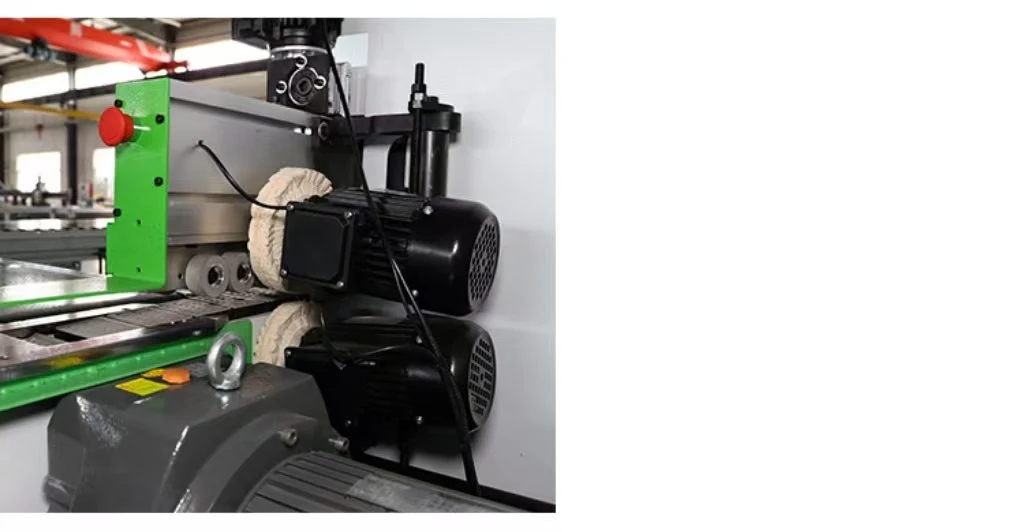

Buffing
Use a cotton polishing wheel to cleanthe polished plate to remove excess glueand make it smoother.
Parameter
| Description | Parameters |
|---|---|
| Function | Pre-milling, gluing ,end cutting, rough trimming,fine trimming, corner rounding , scraping, buffing |
| Conveyor | Automatic conveying |
| heet thickness | 10-60mm |
| Minimum processing width of sheet | 300*60mm |
| Minimum processing length of sheet | 100*80 |
| Edge banding width | 13-63mm |
| Feeding speed | 15~22m/min |
| Total power | 17.1kw |
| Dimensions | 6550*900*1600mm |
| Weight | 2600kg |
| Control System | Taiwan Delta |
| Working Voltage | 380V/50Hz |
