Products Description
Structural details
Application

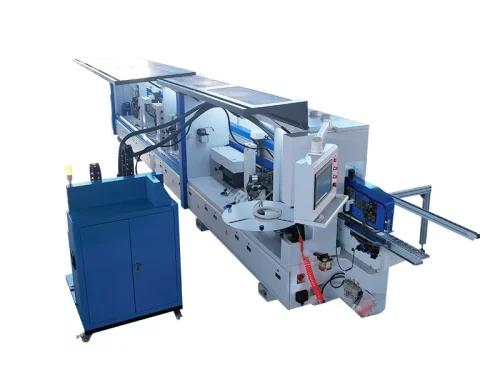

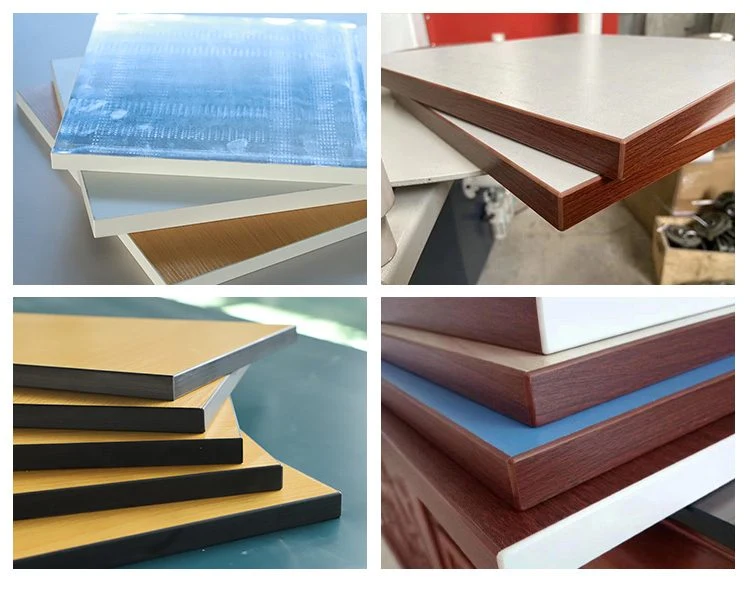

- The aluminum-wood edge banding machine is suitable for edge banding processing of various materials, including aluminum honeycomb furniture, PTP, medium-density fiberboard, blockboard, solid wood panels, particleboard, polymer door panels, plywood, and more. This versatility allows the equipment to meet the needs of different furniture manufacturing.

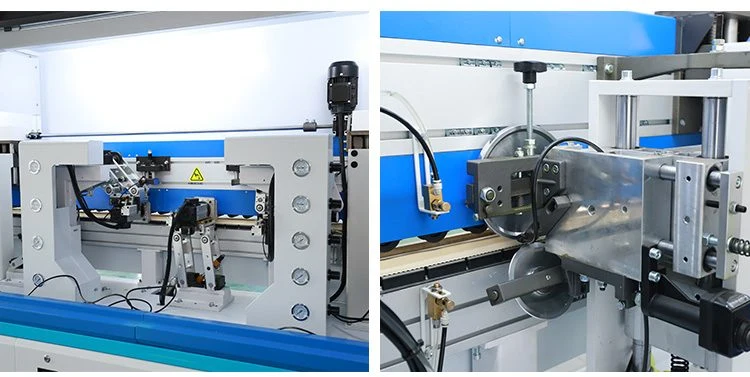

Product Details

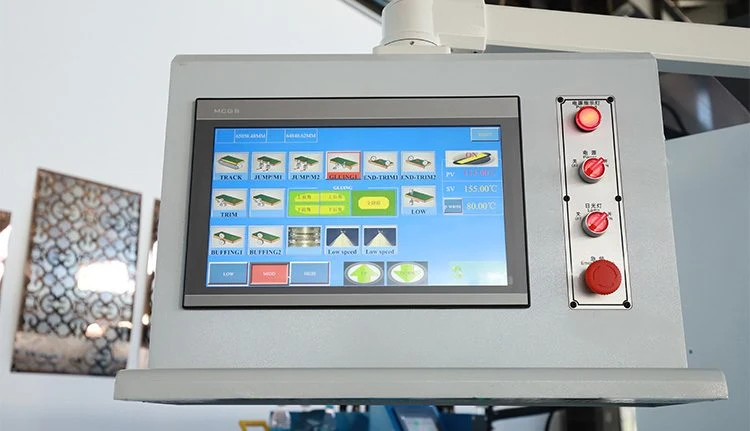

PLC control system
The independent LCD screen has a touch screen speed control function, and you can see theoperation process of the machine more clearly, real-time monitoring, real-time adjustment, andmore precise.
Pre-milling
When the edge-sealing surface of the plateis not flat, it can be milled first and then gluedand pressed.

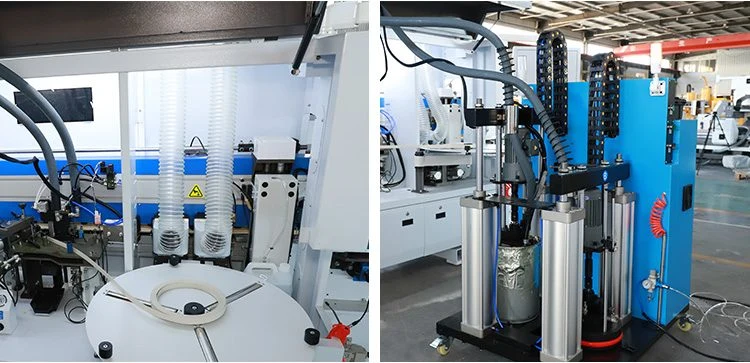

Gluing machine
Non-sticky pot, uniform sol, cylinder controlpressure roller, better tape effect..
Gluing
Non-sticky pot, uniform sol, cylinder control pressure roller, better tape effect.
End cutting
Through the structure of automatic profilingand high-frequency high-speed motor, theredundant edge bands before and after are cutoff to ensure a smooth and smooth section.

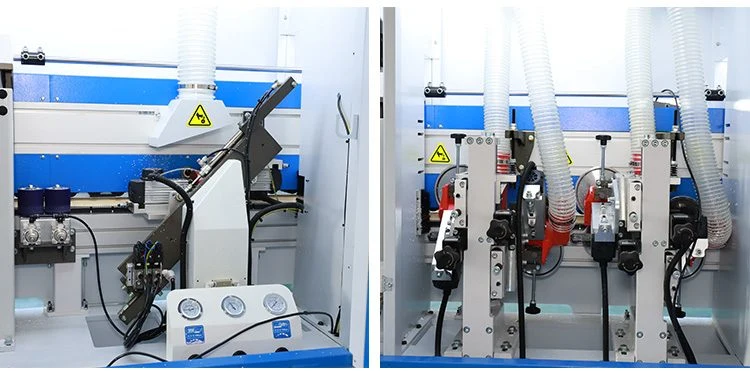

Rough trim and Fine trim:
which is used to trim the excess edge bandingmaterial on the upper and lower parts of theprocessed sheet edge band, so that the upperand lower parts of the trimmed sheet aresmooth and smooth.
Corner trim
The chamfering effect is repaired, and theedge banding effect is more round and smooth.
Scraping
It is used to eliminate the ripple marks causedby the non-linear motion cutting process of thetrimming
Parameter
| Description | Parameters |
|---|---|
| Dimension | 11500*950*1680MM |
| Weight | 3.8T |
| Gross power | 24KW |
| Feed rate | 12-15-18m/min |
| Edge band thickness | 0.3-3mm |
| Sheet thickness | 10-60mm |
| Sheet length | ≥150mm |
| Sheet width | ≥60mm(45MM narrow side can be customized) |
| Working pressure | 0.6-0.8MPa |
| The minimum board size. | 300（L）*60（W） |
| Function | 0.6MPa-0.8Mpa |
| Specific functions | Beam press feeding – baking lamp preheating – board pre-milling (diamond 4+4 large angle pre-milling cutter) – baking lamp – sixth-generation new sealing PUR special glue pot dual-color glue machine without cleaning (easy to clean, full Teflon coating, new flow channel design for convenient glue cleaning) – conventional pressing – first set of extended belt non-powered vertical shaft pressing (independent design) – front and back trimming (with pressure relief function, better for thin aluminum skin) – dual-wheel pressing – upper and lower rough trimming (upper and lower diamond four-tooth) – upper and lower fine trimming (upper and lower diamond six-tooth) – four-head tracking chamfering – upper and lower edge scraping (diamond scraper with directional blowing) – flexible edge scraping – wire breaking – post-cleaning device – 1 upper and lower polishing – 2 upper and lower polishing. |
