Products Description

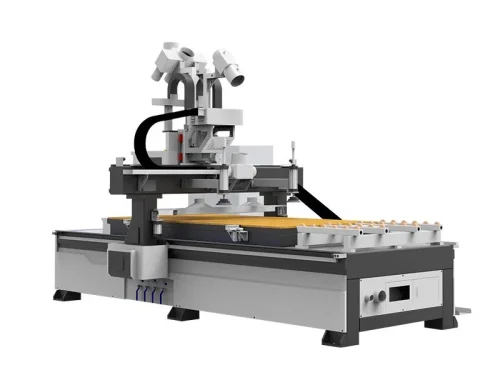

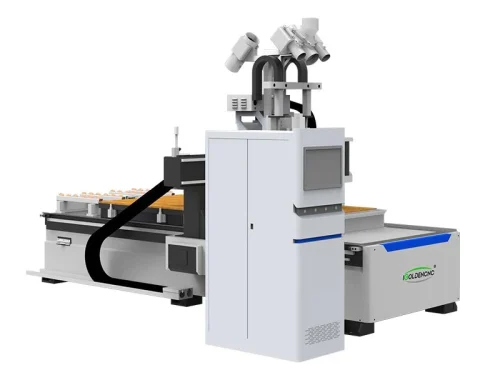

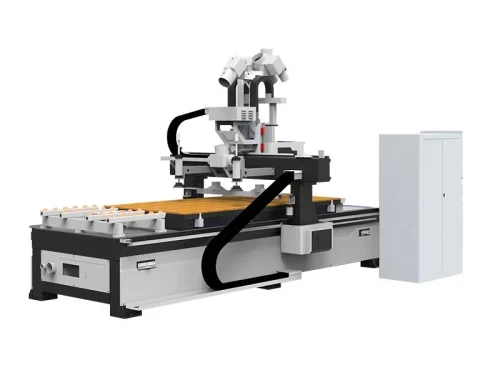

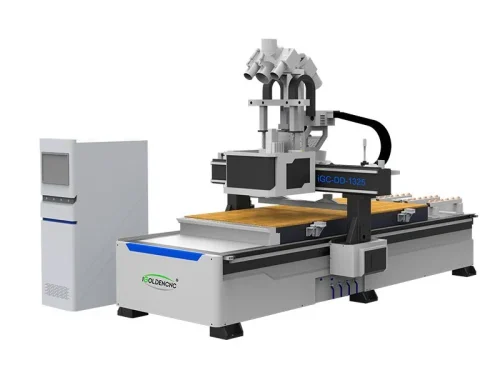

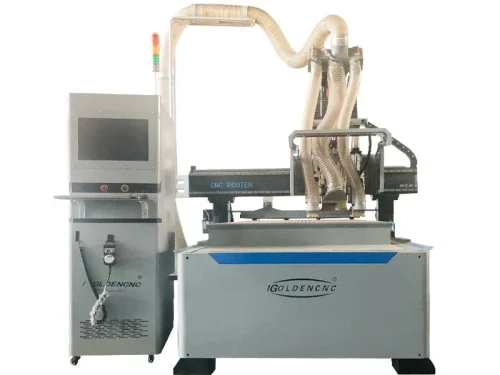

Double Spindle + Drilling Unit Kitchen Cabinets CNC Machine

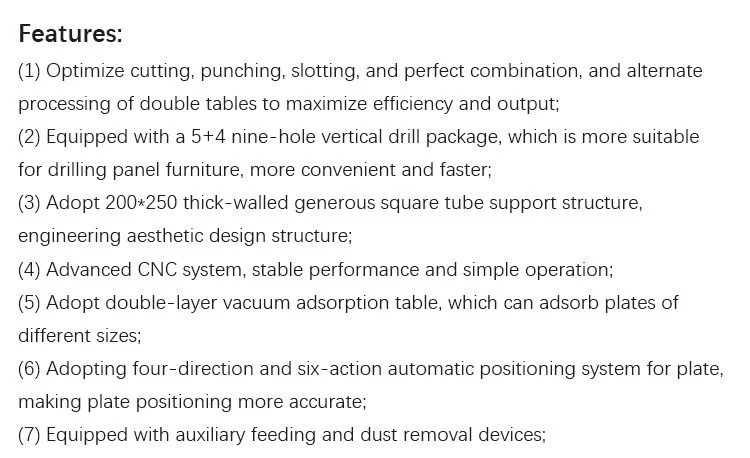

(1) Optimizes cutting, drilling, and grooving, perfectly integrating them into one, with dual worktops alternating processing to maximize efficiency output;
(2) Equipped with a 5×4 nine-hole vertical drill pack, more suitable for panel furniture drilling, making it more convenient and faster;
(3) Uses a 200*250 thick-walled square tube support structure with an engineering aesthetics exterior design;
(4) Advanced CNC system, stable performance, simple operation;

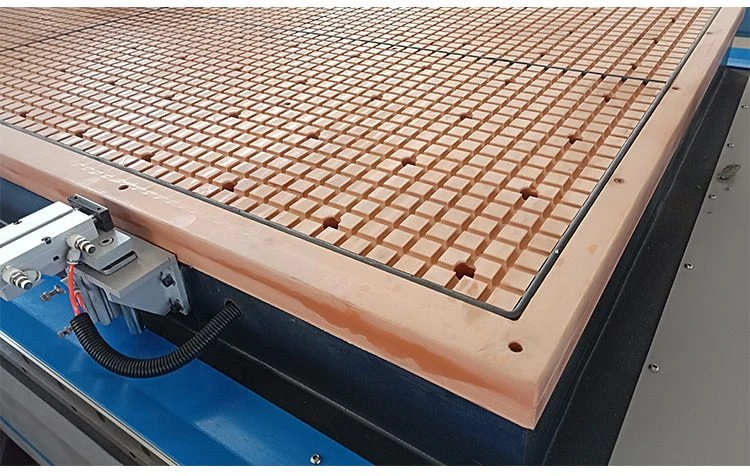

(5) Features a double-layer vacuum adsorption table, capable of holding panels of different sizes;
(6) Utilizes a four-direction, six-action automatic panel positioning system for more accurate panel placement;
(7) Equipped with auxiliary feeding and dust removal devices;
Application
(1) Cabinets, wardrobes, bank office furniture, computer desks, children’s furniture, panel furniture, office furniture;
(2) Production of hollow carved lattice and soft-pack background walls for decoration;
(3) Cutting and material preparation for panel furniture, slotting and drilling.
Product Details
Parameter
| Model | iGC-DD-1325 |
|---|---|
| Working area | 1300*2500*300mm |
| Machine Body | Square Tube Welding Structure |

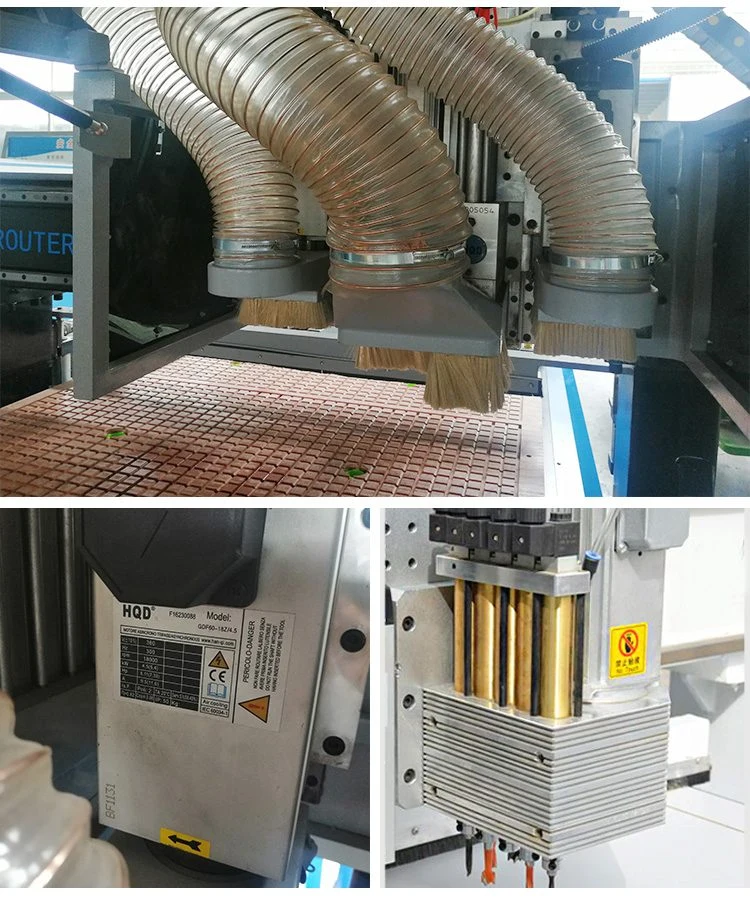

| Spindle | HQD 6.0kw Air Cooling*2+9 hole vertical drill |
| Speed Speed | 18000rpm |
| Positioning Accuracy | 0.05mm |
| Repositioning Accuracy | 0.02mm |
| Worktable |
PVC Vacuum Ddsorption Worktable + L-type Positioning Cylinder + Automatic Pusher + Feeding Roller + Secondary Dust Removal System |

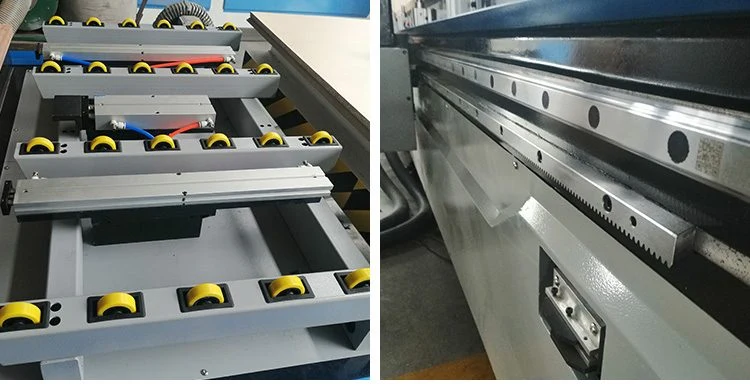

| Guide Rails | Taiwan HIWIN |
| Driver | Japan YASKAWA Servo Drive and Servo Motor |
| Reducer | Japan SHIMPO |
| Control System | Taiwan LNC |
| N.W./G.W. | 2700/3000kg |
OUR advantage
IGOLDENCNC employs more than 500 people worldwide. Equipped with an independent and strong core R&D team,
10+ years manufacturing experience
iGOLDENCNC’s laser machinery has been exported to more than 180 countries.
Strict Quality Control System
Which controls the product quality from raw materials, production, and delivery.
Productive Forces
The factory covers an area of 22,000 square meters with 3 production workshops
Product Quality
Each machine needs to go through 13 inspection processes from order to delivery.
24 hours full service
You can always enjoy comprehensive pre-sale services, free pre-sale consultation and free sample making from iGOLDENCNC.
