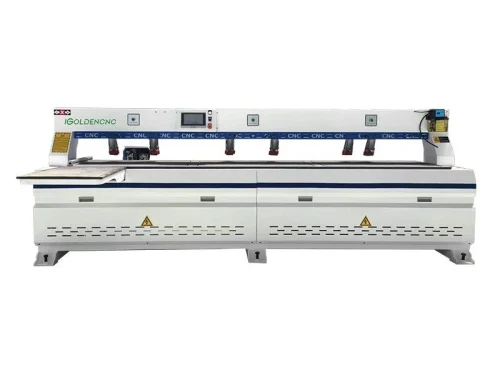

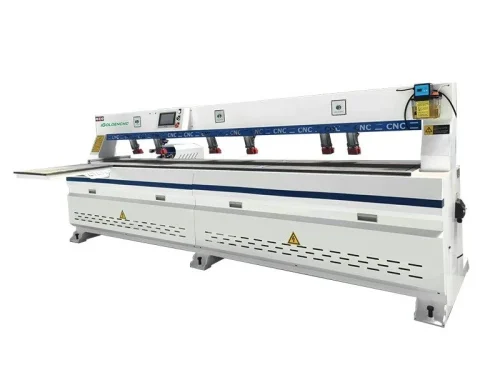

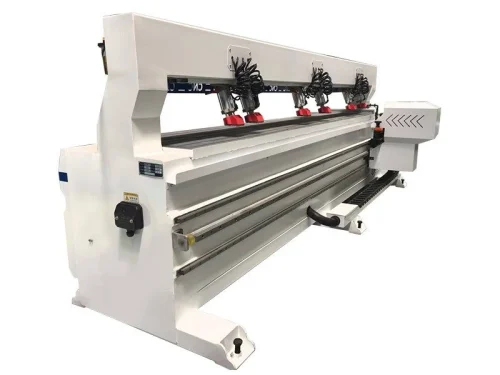

Double-Head Side Hole Machine

Double-Head Side Hole Machine

• The dual-spindle side-hole machine supports hardware fitting processes and can perform hole drilling using either QR code scanning or laser positioning. It is a five-sided drilling and milling machine, treated with aging and tempering to ensure stability during long-term high-speed operation.
• The machine is equipped with an American Banner laser probe, allowing for 100% leak-free drilling. It features a high-power spindle and servo motors.
• The XY axes use high-precision Taiwanese racks, and the guide rails use Taiwan Hiwin or PDF standards. High-flex shielded cables and fully enclosed drag chains are employed.
• The machine bed is reinforced, and the front end adopts a unique ‘L’-shaped design, suitable for processing both long and short panels.
• This machine is suitable for drilling side holes, dowel holes, step holes, side grooves, and hardware fitting on solid wood boards, fiberboards, particle boards, and other panel workpieces.

Application

◎ Capable of completing four types of hidden fittings with three-in-one side hole/wood dowel hole/blind hole/fixed slot/through slot and side hole drilling.;
◎ Equipped with American Banner laser probe, providing high drilling accuracy;
◎ Comes with dual-system dedicated barcode scanner, offering fast speed and high efficiency;
◎ Simple operation and easy to use, operators can use it without special training;
◎ High-pressure cylinder, accurately secures the panels, efficient and convenient;
◎ High-strength PVC tabletop, prevents errors caused by tabletop wear;
◎ Dedicated system, stable performance, good compatibility;
◎ Reinforced bed, with a unique “L” shape at the front, suitable for processing both long and short boards.

Product Details

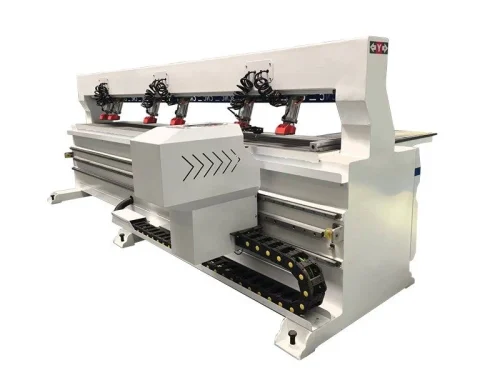

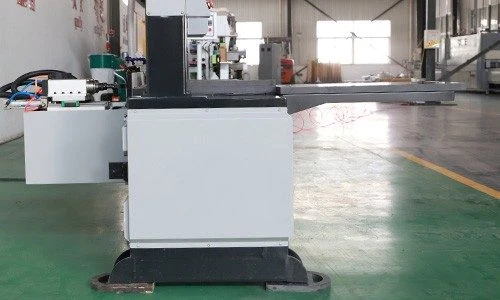

“L”-shaped design

The bed is reinforced, and the front end features a unique ‘L’-shaped design, suitable for processing long and short boards.

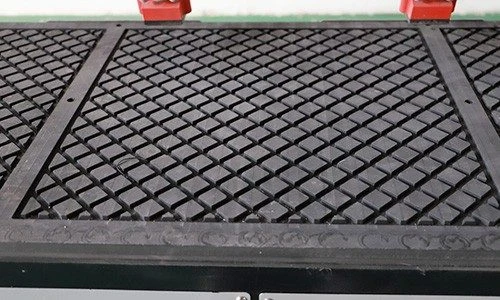

PVC countertop

PVC countertop, high hardness, not easily deformed, excellent stability.

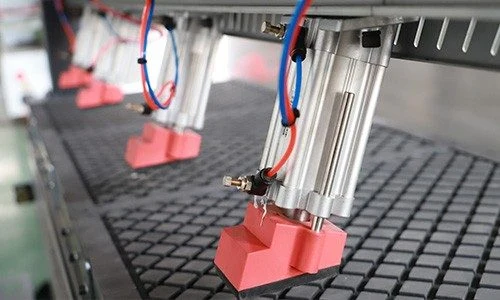

Cylinder

The compaction of the whole machine is fully cylinder-operated, making it easy to operate. The interval positioning stakes are suitable for materials of various sizes.

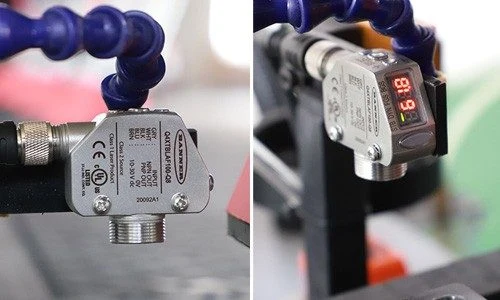

Bynar Laser, USA

This machine is equipped with a Banner laser probe from the United States, capable of achieving 100% leak-free punching.

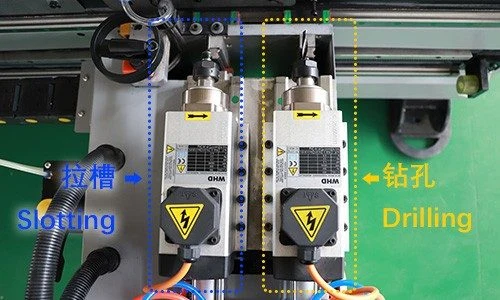

Dual spindle

Drilling and grooving, with multiple modes to choose from, improve processing efficiency

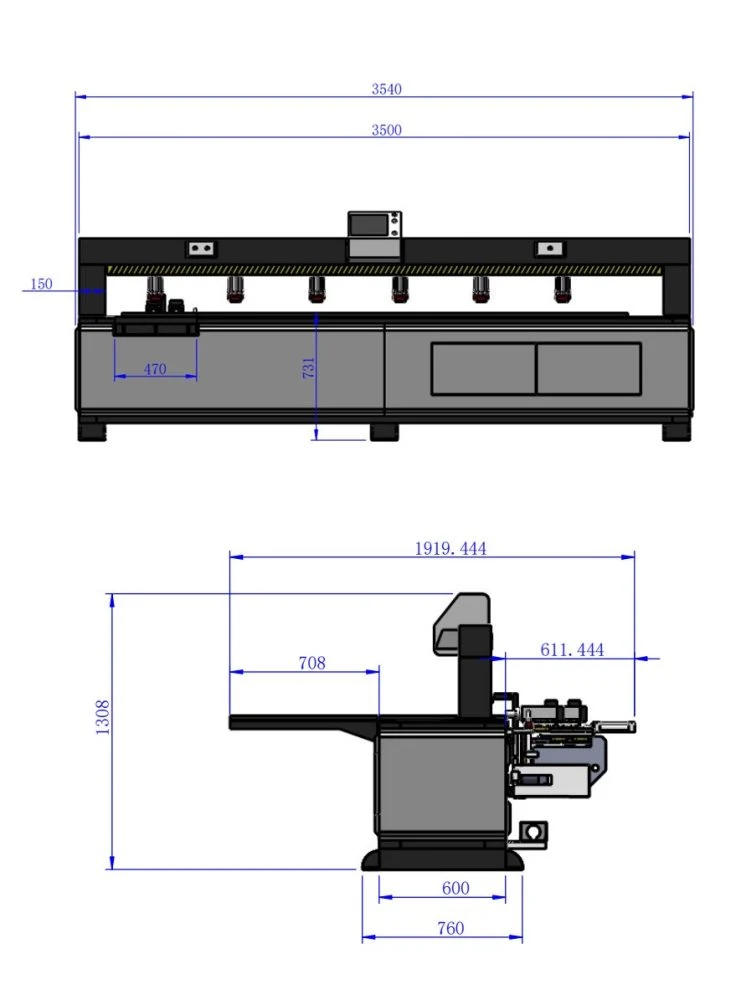

Parameter
