Products Description

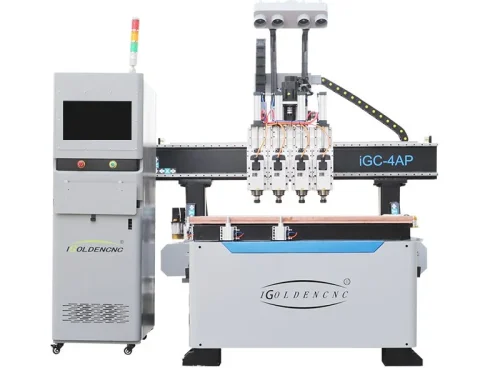

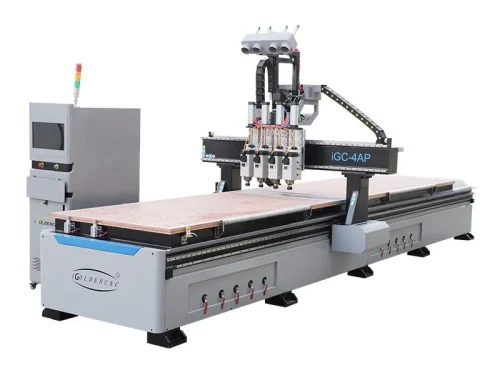

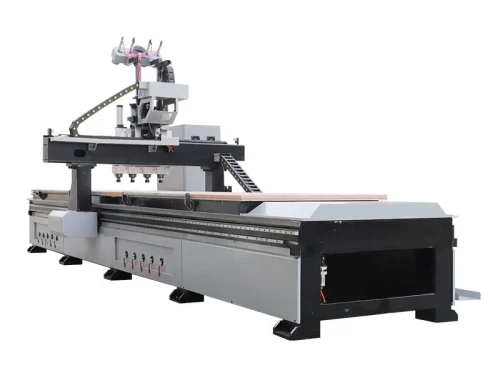

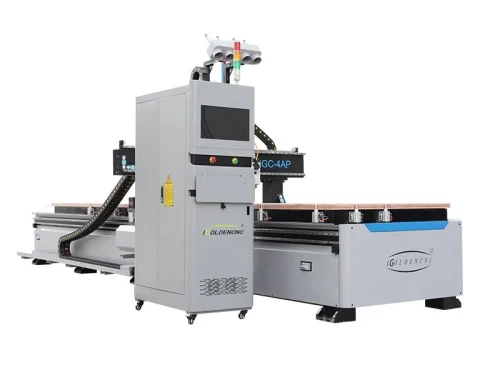

1325 Four-Process Cutting Machine, Dual Workstations
The equipment is compatible with edge banding machines, laminating machines, and other production lines, suitable for whole-house customization and various types of furniture manufacturing (cabinets, wardrobes, office furniture, panel furniture, etc.), and can complete complex processes such as cutting, grooving, engraving, and soft-wrapped feature walls, significantly saving labor costs.

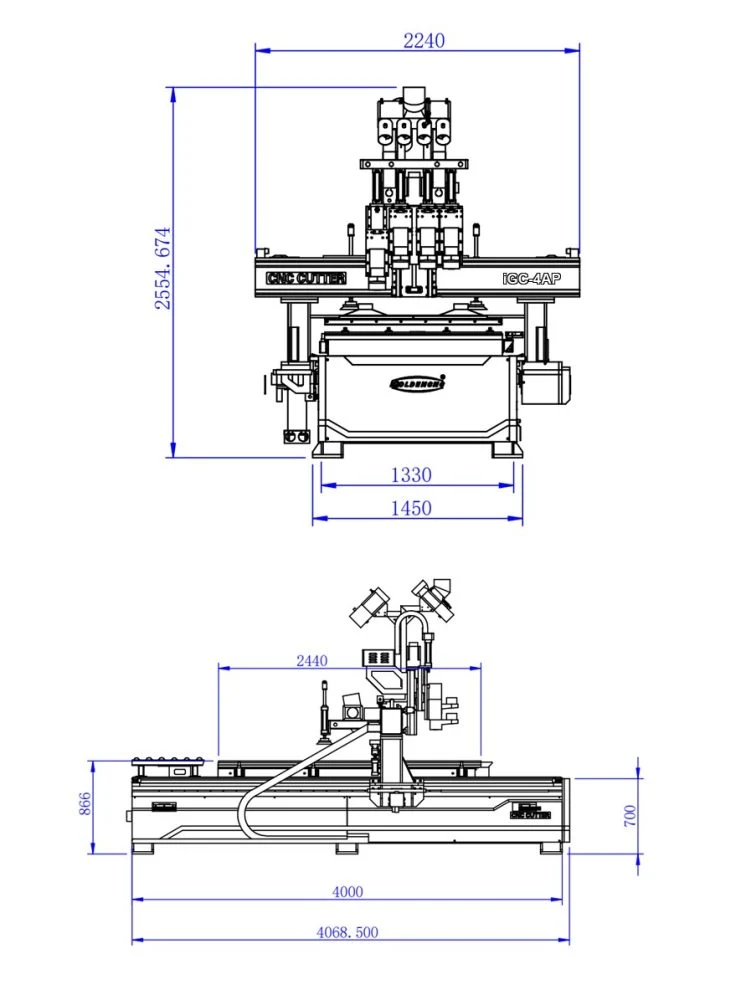

Product size
Product Details

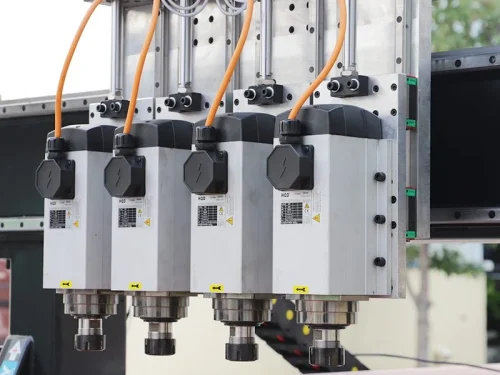

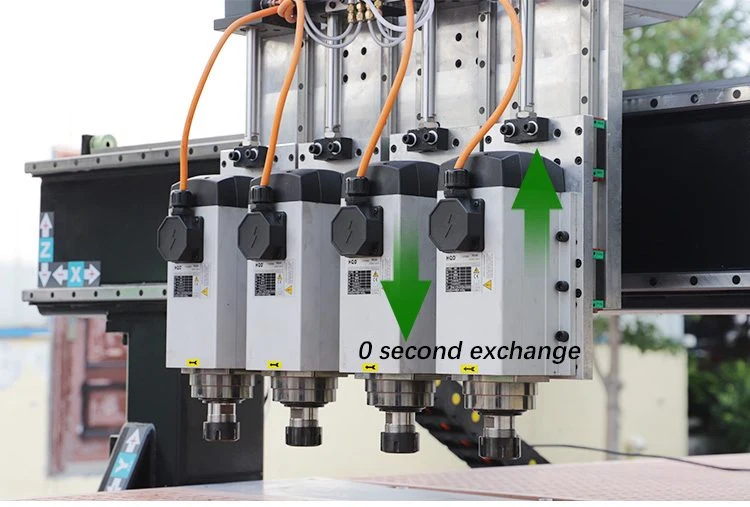

HQD air-cooled tool change spindles,6KW*2+4.5KW *2;Cooperating with the cutting machine,it can only be driven torealize 0 second tool changeandhigher efficiency production.

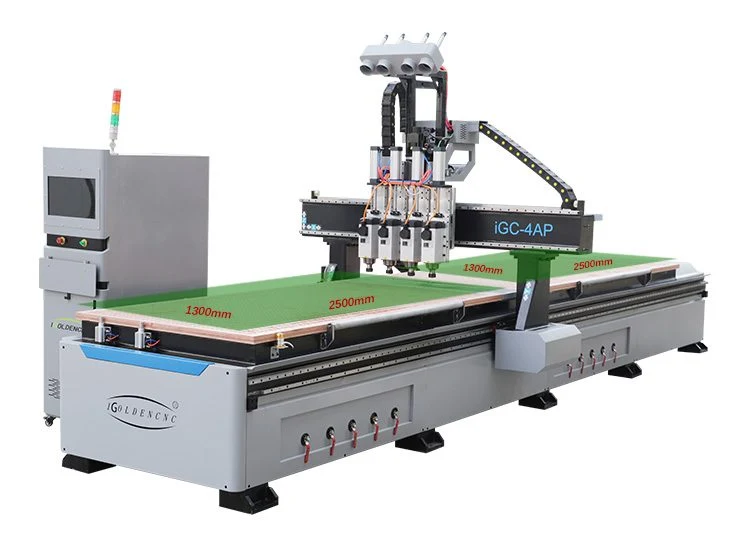

Double-station table,you can unload and cut at the same time，improve work efficiency.

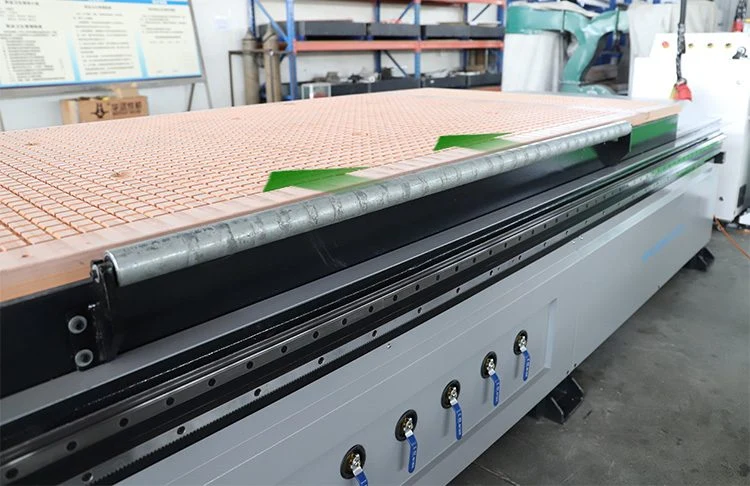

Feeding roller to increase the feeding speed.

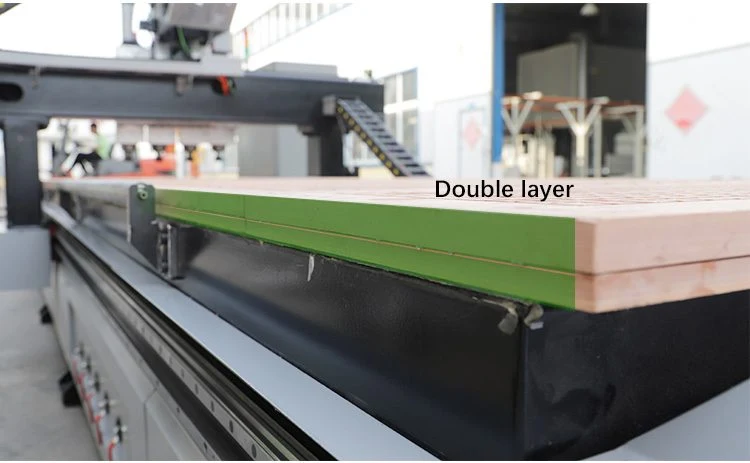

Class A hard double-layer vacuum adsorption table.

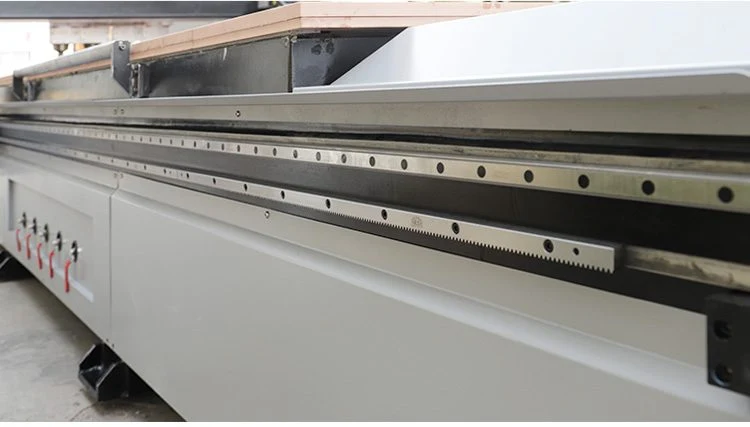

Taiwan high precision rack + HINWINguide rail.
Parameter
| Technical indicators | parameter |
|---|---|
| Model | iGC-4AP-1325 |
| Machine stroke | 1300*2500*200mm*2 stations |
| File format | G code |
| Workbench structure | Class A hard special vacuum adsorption table |
| Working voltage | 380V/50HZ |
| Bed | Heavy-duty stable bed, CNC gantry milling |
| Spindle | HQD 6KW air-cooled tool change spindles*2, 4.5KW tool change spindle*2 |
| Drive system | Japanese / Taiwan server motor drive |
| Control system | Taiwan LNC system + wireless handwheel |
| Rack | Taiwan high precision helical rack |
| Guide rail | Taiwan HIWIN square rail |
| Lead screw | Taiwan TBI lead screw |
| Electrical components | Schneider, France/ Omron, Japan |
OUR advantage
IGOLDENCNC employs more than 500 people worldwide. Equipped with an independent and strong core R&D team,
10+ years manufacturing experience
iGOLDENCNC’s laser machinery has been exported to more than 180 countries.
Strict Quality Control System
Which controls the product quality from raw materials, production, and delivery.
Productive Forces
The factory covers an area of 22,000 square meters with 3 production workshops
Product Quality
Each machine needs to go through 13 inspection processes from order to delivery.
24 hours full service
You can always enjoy comprehensive pre-sale services, free pre-sale consultation and free sample making from iGOLDENCNC.
