Products Description

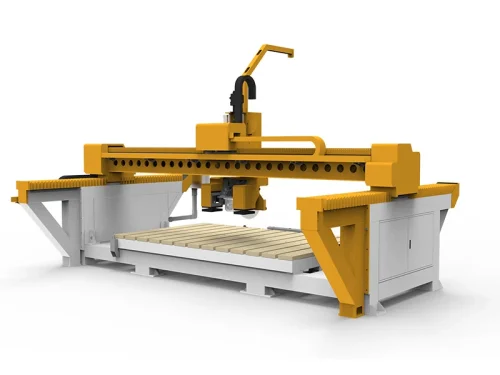

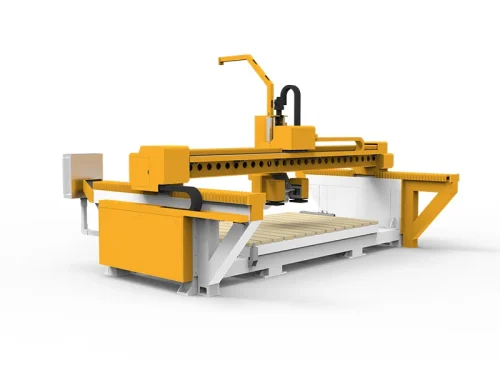

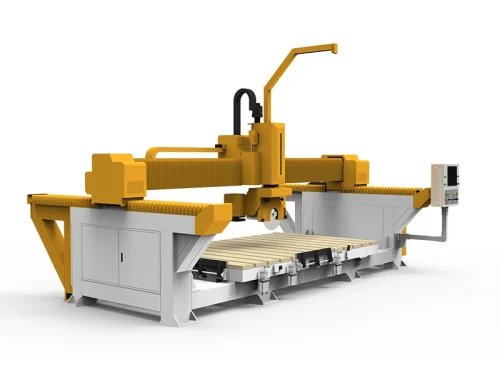

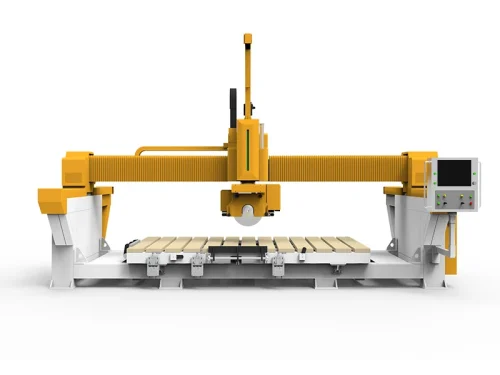

CNC stone cutting bridge saw for granite and marble
The Intelligent 4+1 bridge cutter is a fully functional processing equipment with a 360 degree rotation of the head. Saw blade with spindle can be cut, chamfering, digging and other multi-functional integration, intelligent operating system, simple and easy to learn; High quality motor, high precision, fast speed; Transverse, longitudinal, arc, circular, arbitrary Angle, shape cutting. The machine head can move and rotate freely. In addition to cutting modeling, it can also be used for large plate opening, 45 degree chamfering, opening basin hole, stove hole, oblique line cutting.
Suitable for quartzite, rock plate, artificial stone, granite, marble all kinds of large and small stone decoration engineering stone processing machinery. Save plate save time save worry save effort!

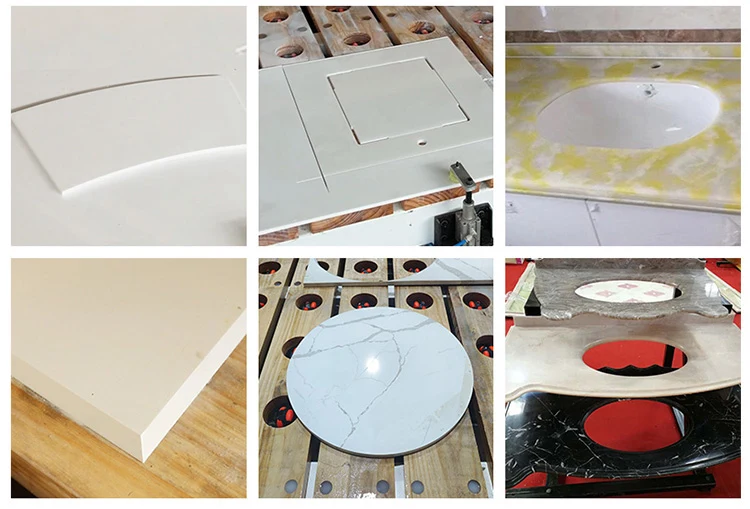

Application

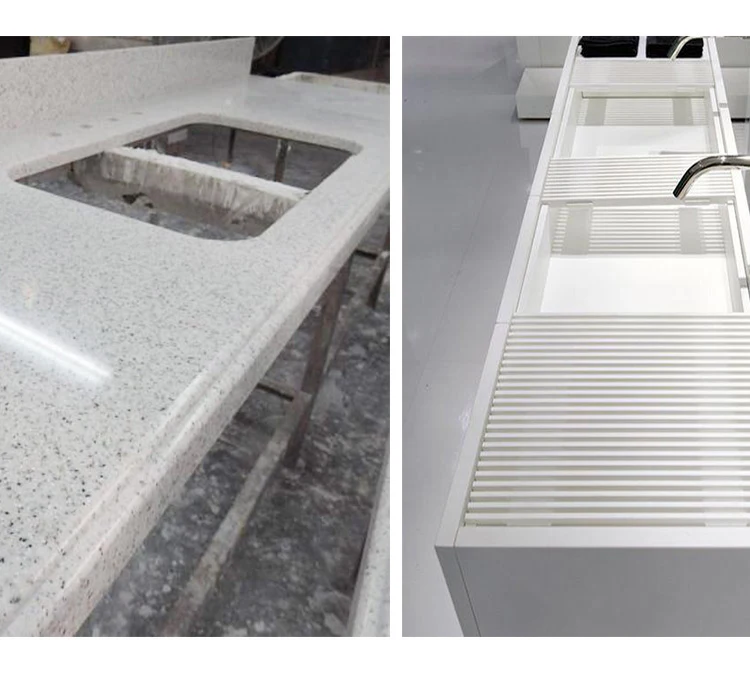

Stone Countertops: Accroding to custom sizes and designs required, it can precisely cut and shape slabs of granite, marble, or quartz.
Architectural Stone: It can cut architectural stone pieces for buildings, including exterior cladding, facade elements, columns, etc.
Flooring and Wall Tiles: They can cut large stone slabs into smaller tiles of uniform sizes, so it can creat visually appealing surfaces.
Monuments and Memorials: It can create intricate designs, lettering, and customized shapes for honoring individuals or events.
Furniture and Artistic Pieces: We can use it in artistic pieces, sculptures, and decorative elements from stone or wood materials.
Product Details

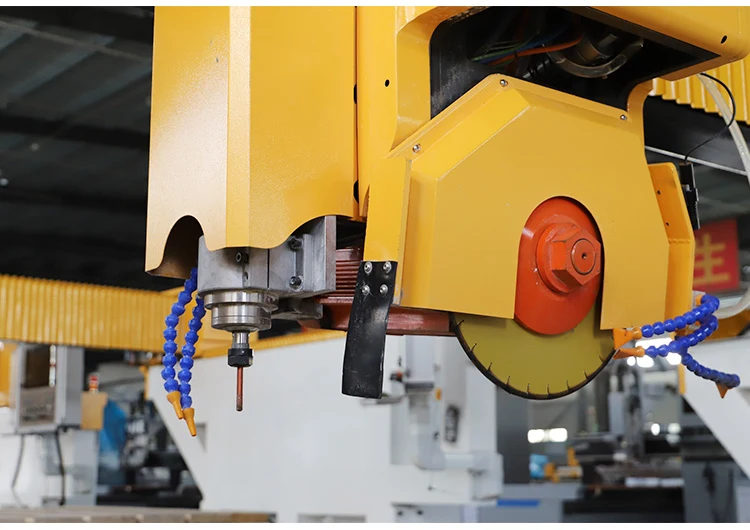

4+1 axis
The machine head automatically flips +360 degrees

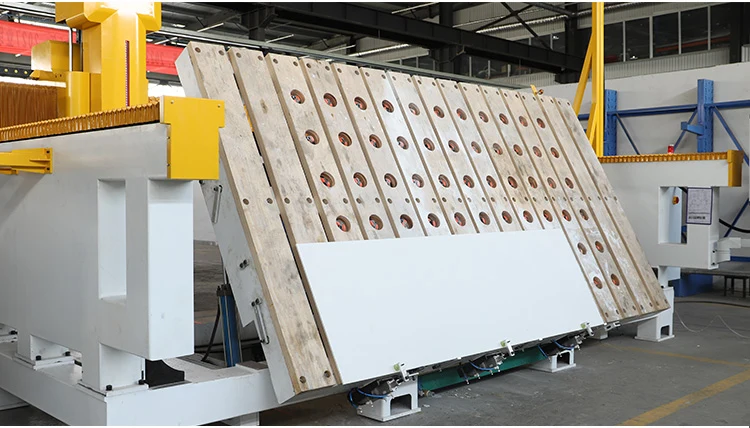

Automatic reproduction
Standard automatic copy function, the maximum can be turned over 80 degrees, convenient automatic loading and unloading.

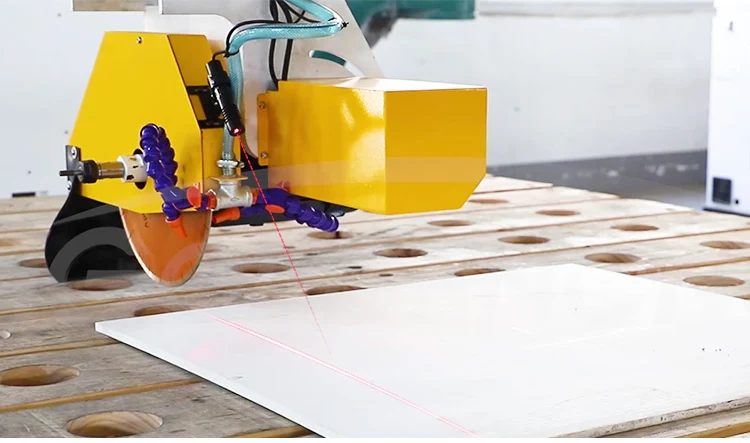

Laser positioning
Laser positioning function, more accurate standard, improve the accuracy.

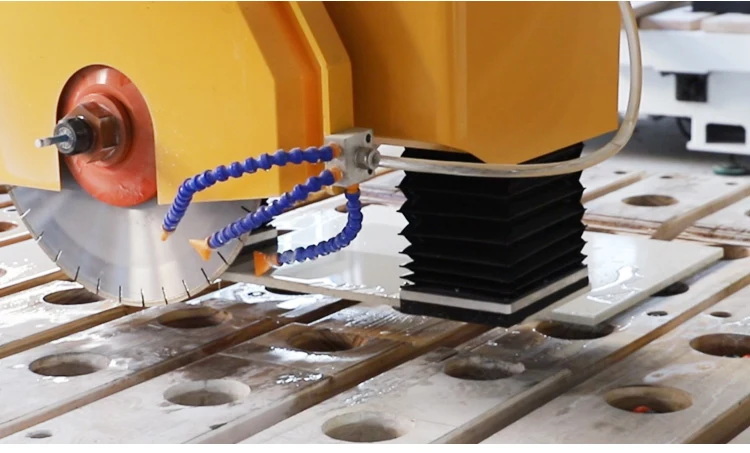

Suction cup displacement
The machine head can move the plate,which is more convenient.

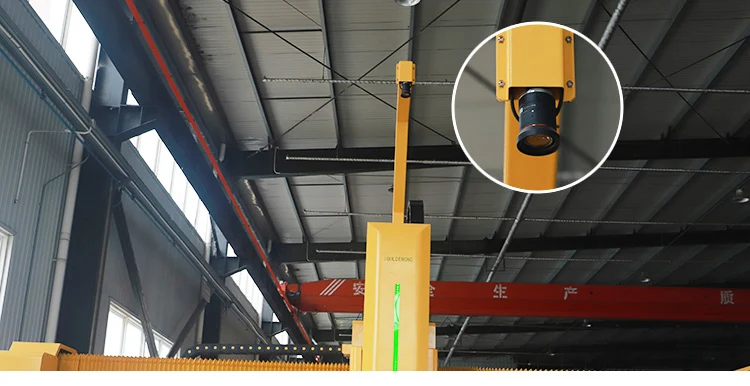

Photo layout function
After taking photos through the camera, it can be automatically typeset, saving time and effort, more accurate and efficient.

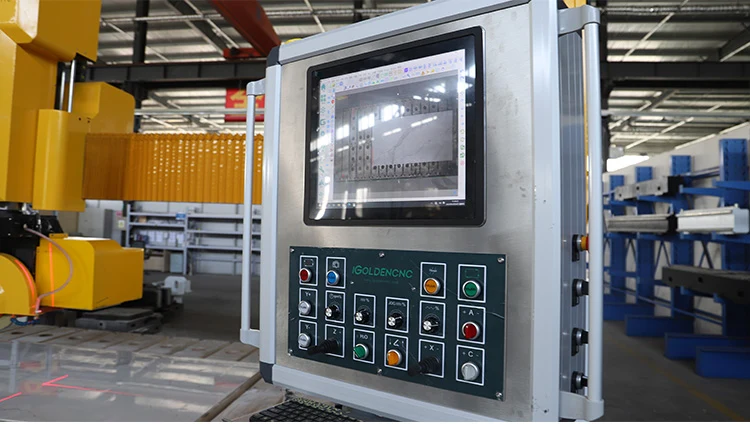

Automatic touch screen cutcam system
Professional CNC system, easy to set and machining, touch control, simple operation.
4 Axis CNC Bridge Cutting Machine Parameters :
| Technical indicators |
parameter | |
| Configuration 1 | Configuration 2 | |
| Model | iGS-B3220 | iGS-B3320（pro） |
| Control system | WEIHONG + WEIHONG motor | Cutcam+VEICHI motor |
| Spindle | 4.5kwWater cooling | |
| Optional power | 15kw/18.5kw/22kw | |
| Saw blade diameter | 350/400mm | 350/400/450mm |
| Lathe bed | Heavy duty welded bed | |
| Table | Flip table | |
| Gantry | Steel structure | |
| Rack | High density diagonal rack | |
| Guide rail | 30 guide rail | |
| Input power | 3 . 380V/220V 50-60Hz 10A | |
| Standard function | Handle; Rely on the ruler; | A hand wheel; Balancing cylinder; Rely on the ruler; blanking |
| Optional function | Motor power；Spindle power；Shift, Dust-free mounting measurement software | Motor power；Spindle power；Camera, Shift, Dust-free mounting measurement software |
