Products Description

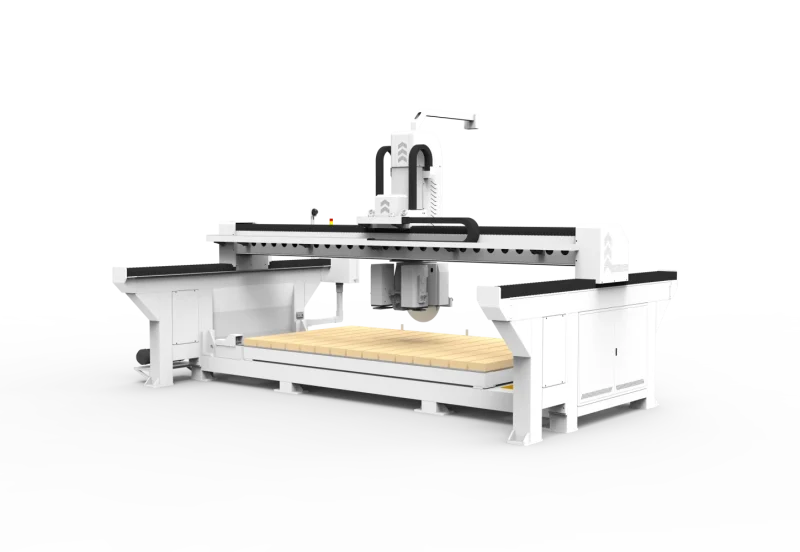

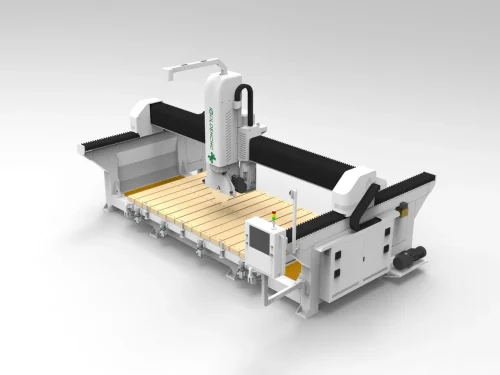

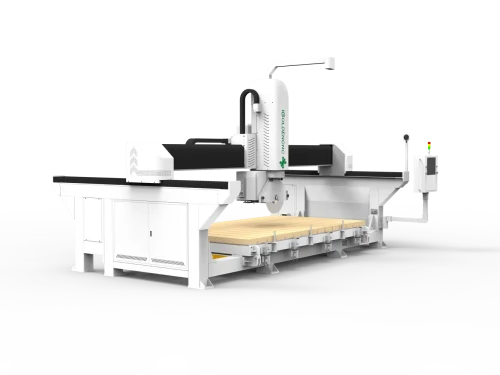

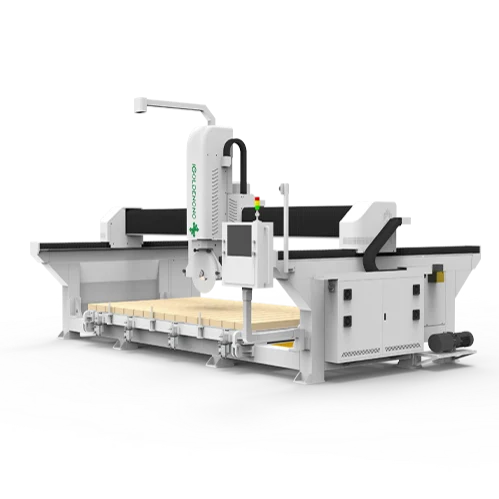

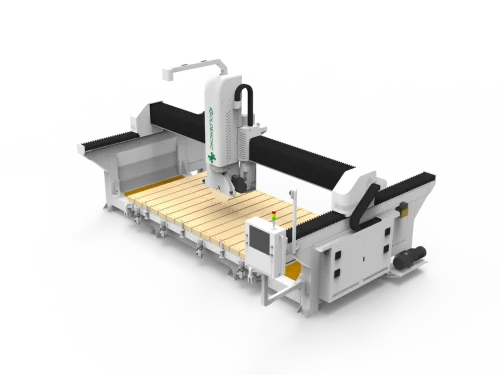

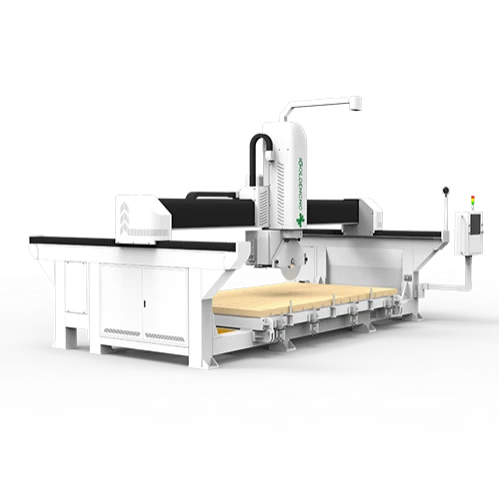

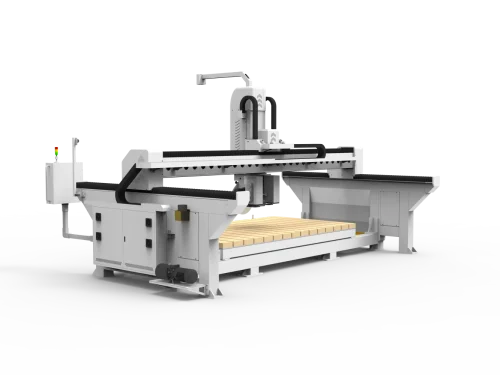

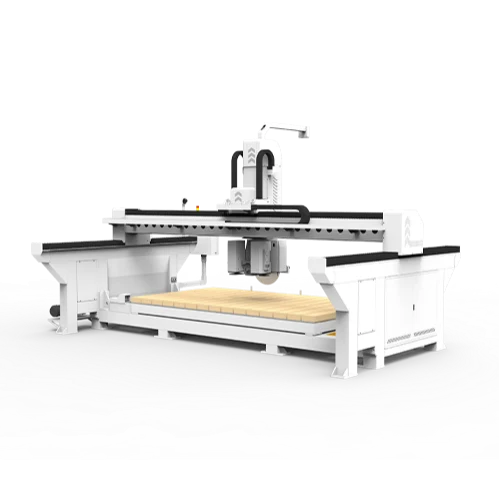

4+1 Axis Stone Bridge Saw
The IGS-B4+1 Axis Stone Bridge Cutting Machine is a high-end intelligent processing equipment, specially customized for the stone industry. This machine adopts an innovative 4+1 axis linkage structure, combined with a heavy-duty steel bed and military-grade precision transmission components, efficiently handling hard materials such as quartz, sintered stone slabs, granite, and marble. Its core design is based on the concepts of multifunctional integration and intelligent operation. Through a professional CNC system for unified control, it enables full-process machining from basic cutting to complex curved surface forming, significantly reducing labor dependence and providing a one-stop solution that saves material, time, and effort for small to medium-sized stone factories to large-scale interior decoration projects.
Application
Stone Countertops: Accroding to custom sizes and designs required, it can precisely cut and shape slabs of granite, marble, or quartz.
Architectural Stone: It can cut architectural stone pieces for buildings, including exterior cladding, facade elements, columns, etc.
Flooring and Wall Tiles: They can cut large stone slabs into smaller tiles of uniform sizes, so it can creat visually appealing surfaces.
Monuments and Memorials: It can create intricate designs, lettering, and customized shapes for honoring individuals or events.
Furniture and Artistic Pieces: We can use it in artistic pieces, sculptures, and decorative elements from stone or wood materials.
Product Details
4+1 axis
The machine head automatically flips +360 degrees
Automatic reproduction
Standard automatic copy function, the maximum can be turned over 80 degrees, convenient automatic loading and unloading.
Laser positioning
Laser positioning function, more accurate standard, improve the accuracy.
Suction cup displacement
The machine head can move the plate,which is more convenient.

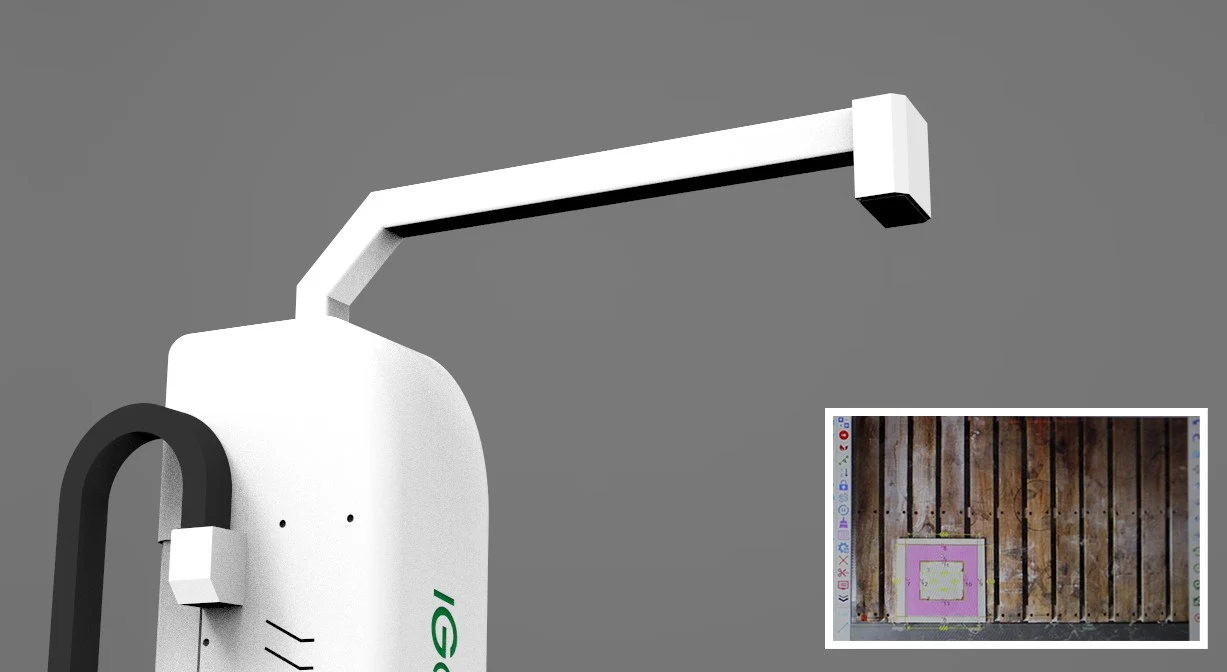

Photo layout function
After taking photos through the camera, it can be automatically typeset, saving time and effort, more accurate and efficient.
Automatic touch screen cutcam system
Professional CNC system, easy to set and machining, touch control, simple operation.
4 Axis CNC Bridge Cutting Machine Parameters :
| Technical indicators |
parameter | |
| Configuration 1 | Configuration 2 | |
| Model | iGS-B3220 | iGS-B3320（pro) |
| Control system | Jia Bang IGOLDENCNC | Jia Bang IGOLDENCNC |
| Spindle | 4.5kw Water cooling | |
| Optional power | 15kw/18.5kw/22kw | |
| Saw blade diameter | 350-400mm | 350-500mm |
| Lathe bed | Heavy duty welded bed | |
| Table | Flip table | |
| Gantry | Steel structure | |
| Rack | High density diagonal rack | |
| Guide rail | 30 guide rail | |
| Input power | 3 . 380V/220V 50-60Hz 10A | |
| Standard function | Handle; Rely on the ruler; | A hand wheel; Balancing cylinder; Rely on the ruler; blanking |
| Optional function | Motor power；Spindle power；Shift, Dust-free mounting measurement software | Motor power；Spindle power；Camera, Shift, Dust-free mounting measurement software |
OUR advantage
IGOLDENCNC employs more than 500 people worldwide. Equipped with an independent and strong core R&D team,
10+ years manufacturing experience
iGOLDENCNC’s laser machinery has been exported to more than 180 countries.
Strict Quality Control System
Which controls the product quality from raw materials, production, and delivery.
Productive Forces
The factory covers an area of 22,000 square meters with 3 production workshops
Product Quality
Each machine needs to go through 13 inspection processes from order to delivery.
24 hours full service
You can always enjoy comprehensive pre-sale services, free pre-sale consultation and free sample making from iGOLDENCNC.
