Products Description

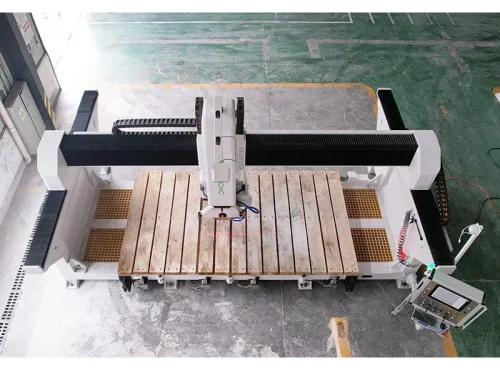

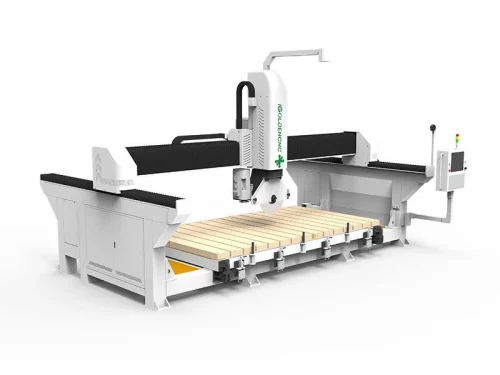

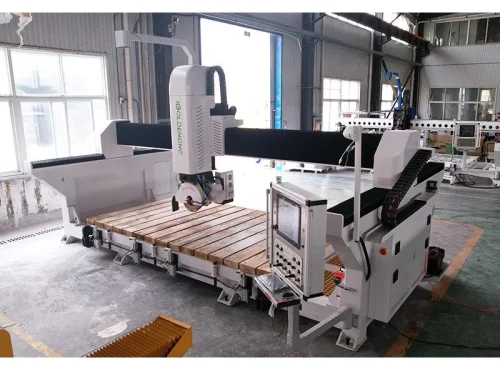

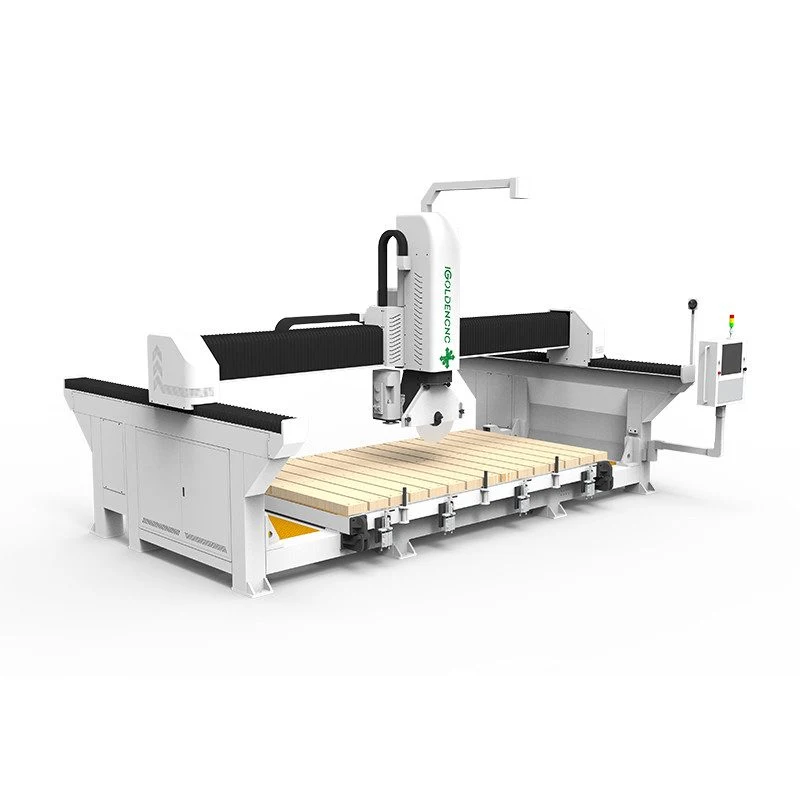

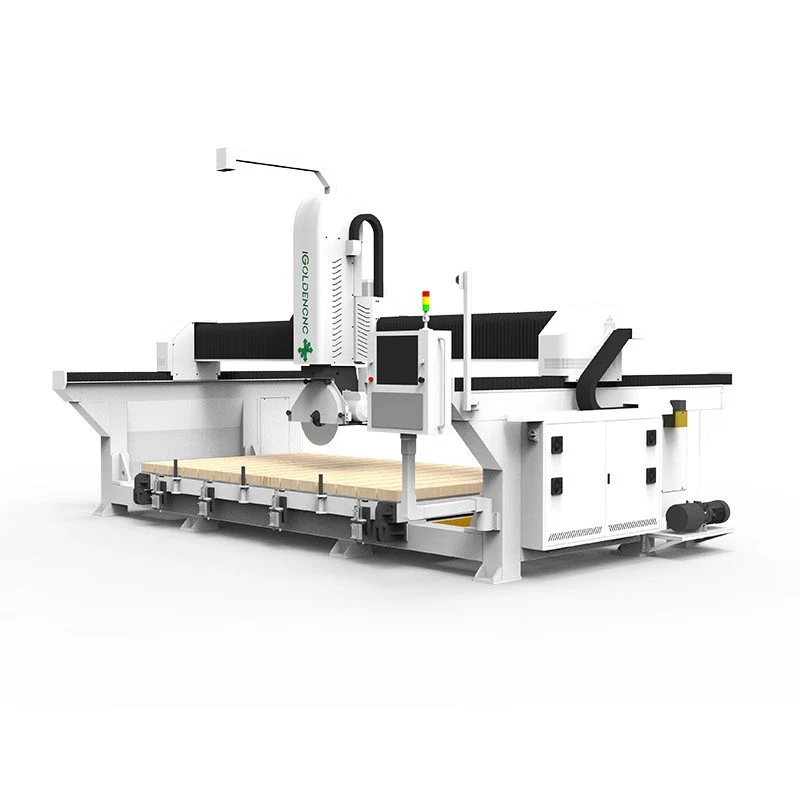

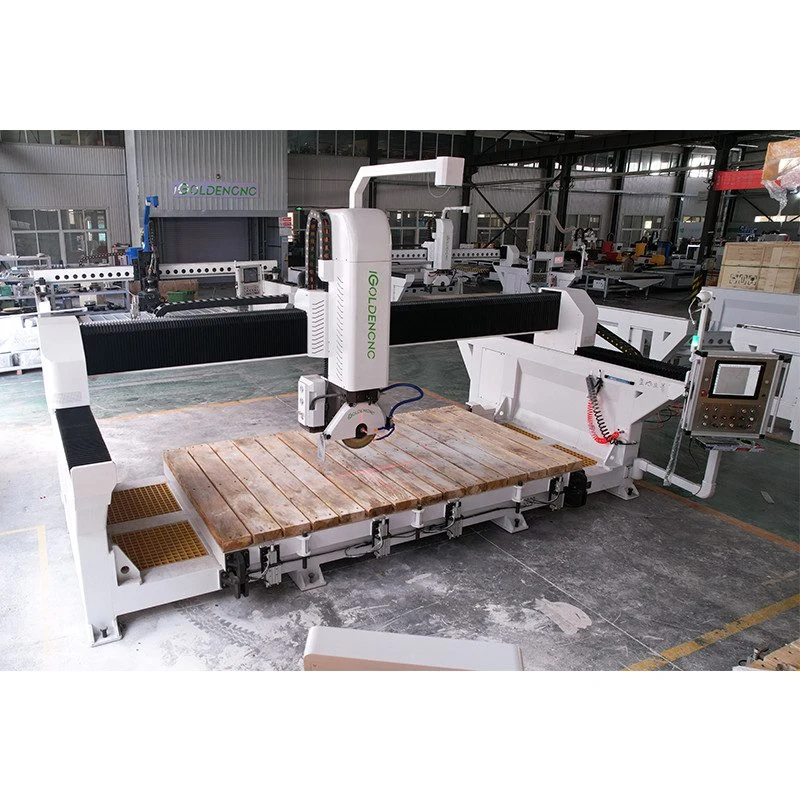

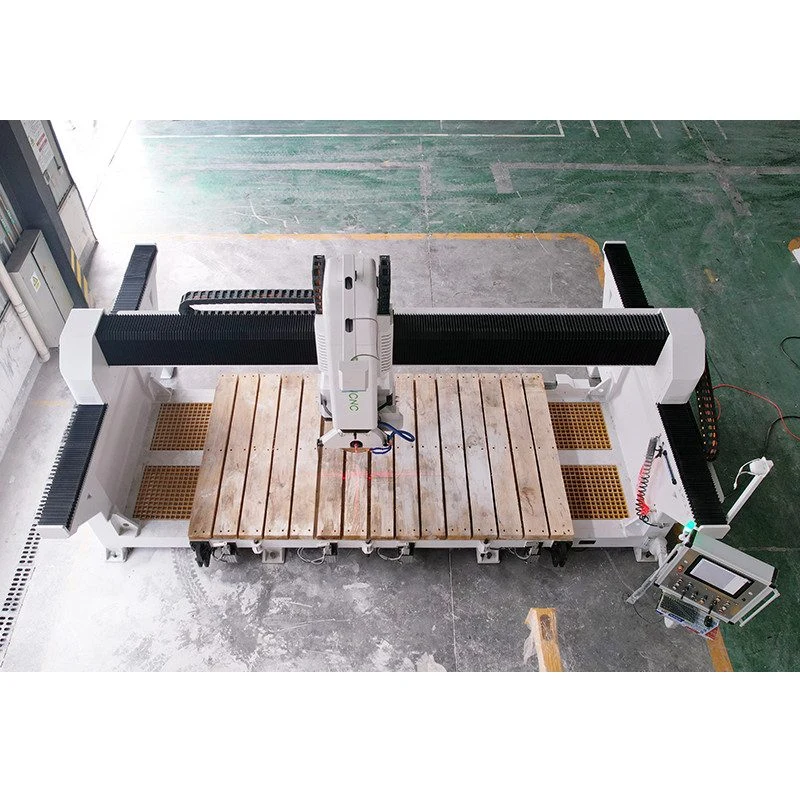

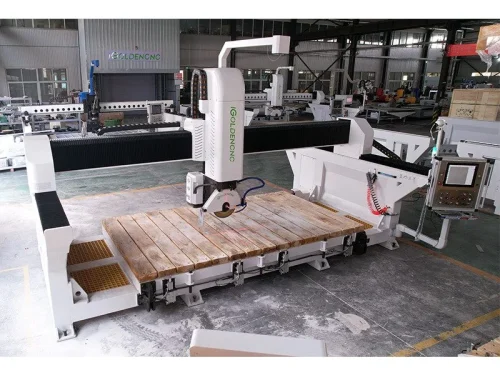

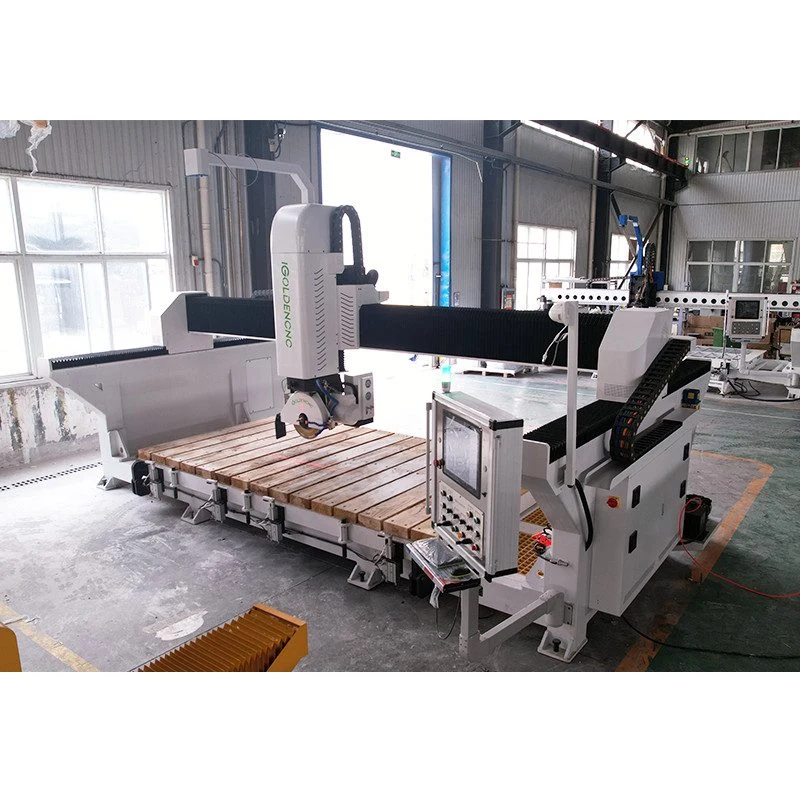

CNC Cutting Bridge Saw

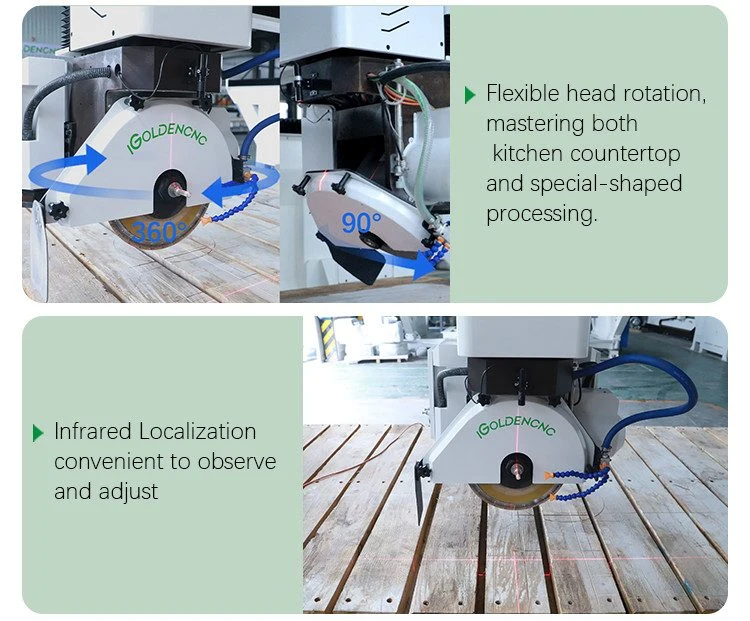

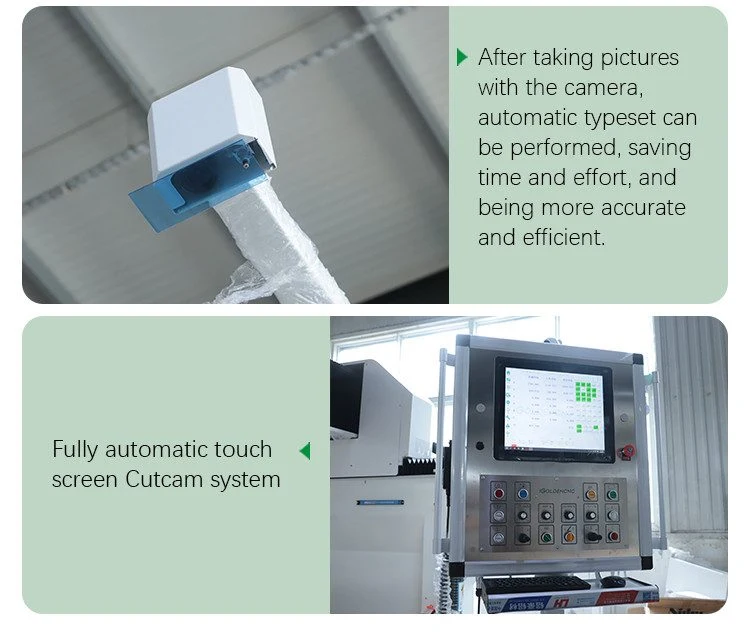

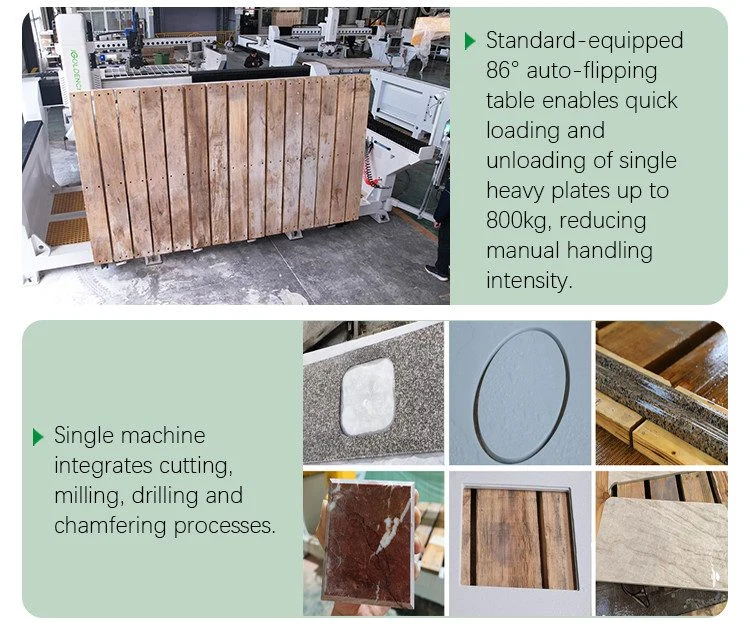

It has the function of taking photos, positioning and typesetting,automatic measurement of plate thickness and tool size, and the head can rotate 360 degrees.The machine head can move and rotate freely.Besides cutting modeling,it can also open material for large plate, 45 degree chamfering,open basin hole,stove hole,and slash line cutting

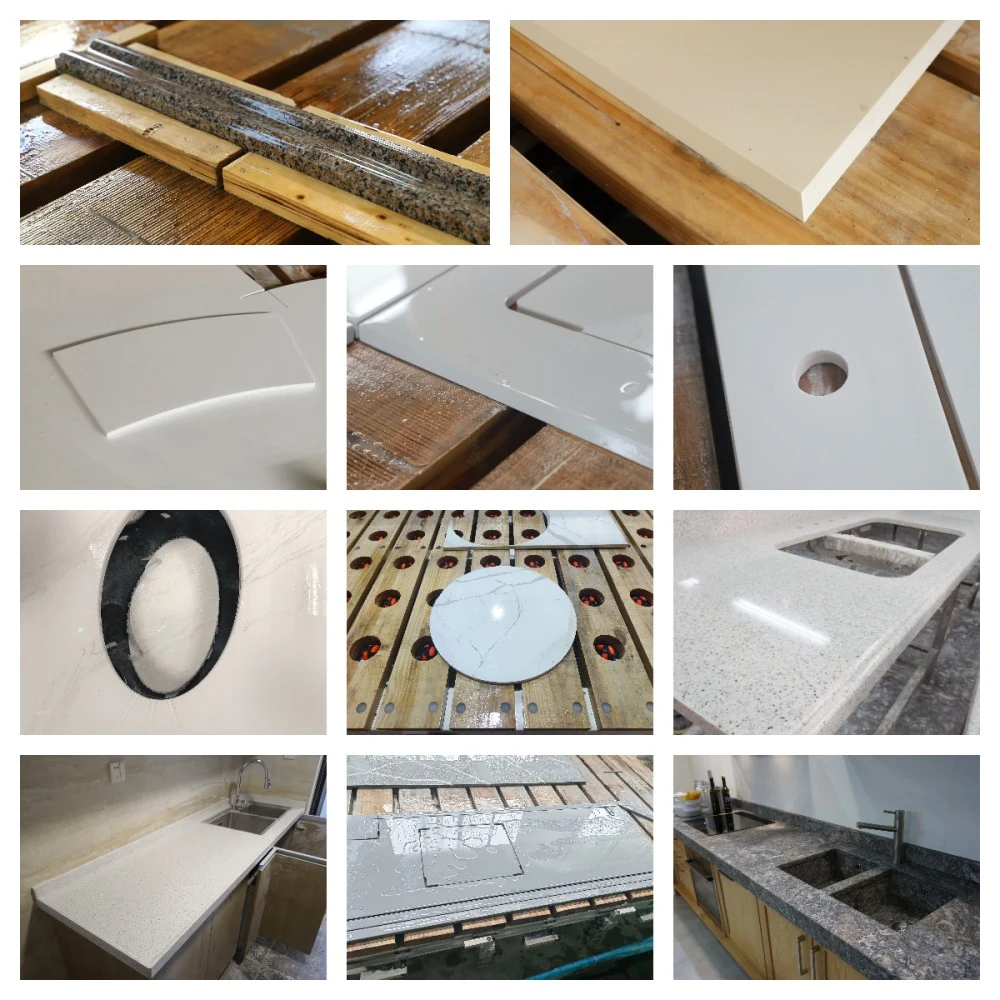

Application
- Decoration industry:special-shaped lines and relief carvings of stone background walls;
- Stone countertops with digging basin holes and European borders:suitable for cabinet artificial stone,quartz stone,granite,marble countertops and sinks, kitchen countertops,bathroom countertops,special-shaped bar counters, stone coffee table countertops,basin hole cutting,back-arc water forming And polishing,etc.
- 45-degree side cutting,90-degree right angle splicing and special-shaped processing;
- Drilling,grinding,trimming,carving,cutting,polishing and engraving of other special-shaped stones,ceramics,glass and ceramic stones..
Product details
Stone Bridge Saw Machine Parameter:
| Technical indicators | parameter |
|---|---|
| Model | iGS-B3620（Pro） |
| Stroke of X axis | 3600mm |
| Stroke of Y axis | 2000mm |
| Z-axis stroke 1 | 255mm（Blade Diameter 400mm） |
| A axis | 90° |
| C axis | 360° |
| Spindle (optional) | Standard 4.5kw water-cooled spindle (5.5kw optional) |
| Saw blade motor power | 7.5kw/11kw / 15kw/18.5kw |
| Blade Diameter | 350mm/400mm/450mm |
| Motor power | XYZ axis 1.8kw (Z-axis holding brake); A-axis 0.85kw; C axis 1.3kw |
| Input power | 3-phase AC 380V/220V 50-60Hz 10A |
