Products Description

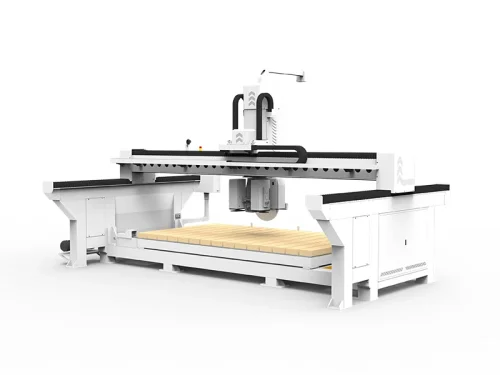

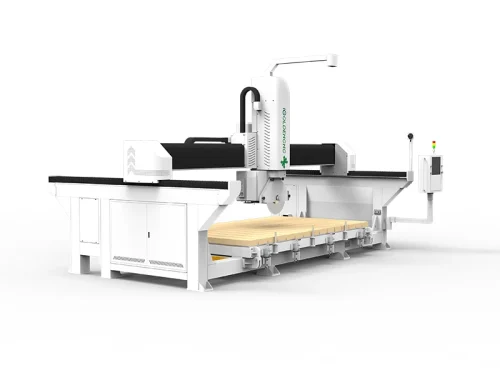

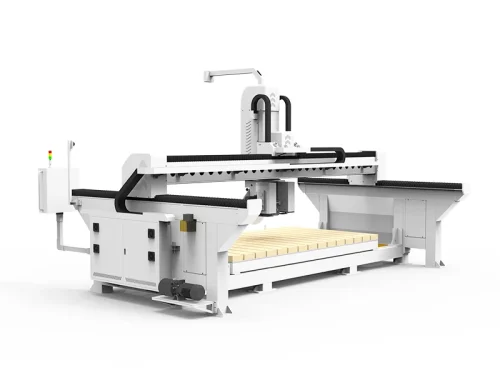

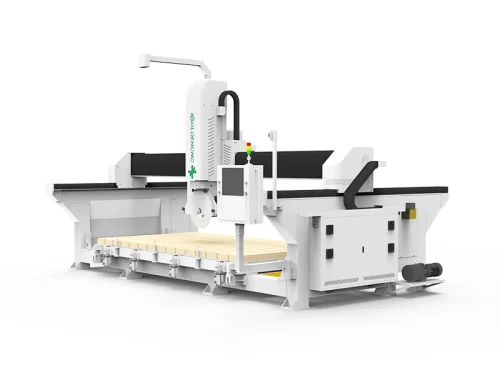

5+1-axis CNC bridge saw machine
The intelligent 5+1-axis bridge cutter is a versatile machining equipment featuring photo-guided layout positioning, automatic measurement of sheet thickness and tool dimensions, with a 360-degree swivel head. Integrated multifunctional operations including cutting, edge grinding, chamfering, and circularization. The intelligent operating system is user-friendly and easy to learn. High-quality motors ensure precision and speed, enabling crosswise, longitudinal, curved, circular, and custom-angle cuts. The head’s free movement and rotation allow not only shape-cutting but also large sheet material processing, 45-degree chamfering, pot/oven hole drilling, and diagonal seam cutting.
Application
- Decoration industry:special-shaped lines and relief carvings of stone background walls;
- Stone countertops with digging basin holes and European borders:suitable for cabinet artificial stone,quartz stone,granite,marble countertops and sinks, kitchen countertops,bathroom countertops,special-shaped bar counters, stone coffee table countertops,basin hole cutting,back-arc water forming And polishing,etc.
- 45-degree side cutting,90-degree right angle splicing and special-shaped processing;
- Drilling,grinding,trimming,carving,cutting,polishing and engraving of other special-shaped stones,ceramics,glass and ceramic stones..
Product details

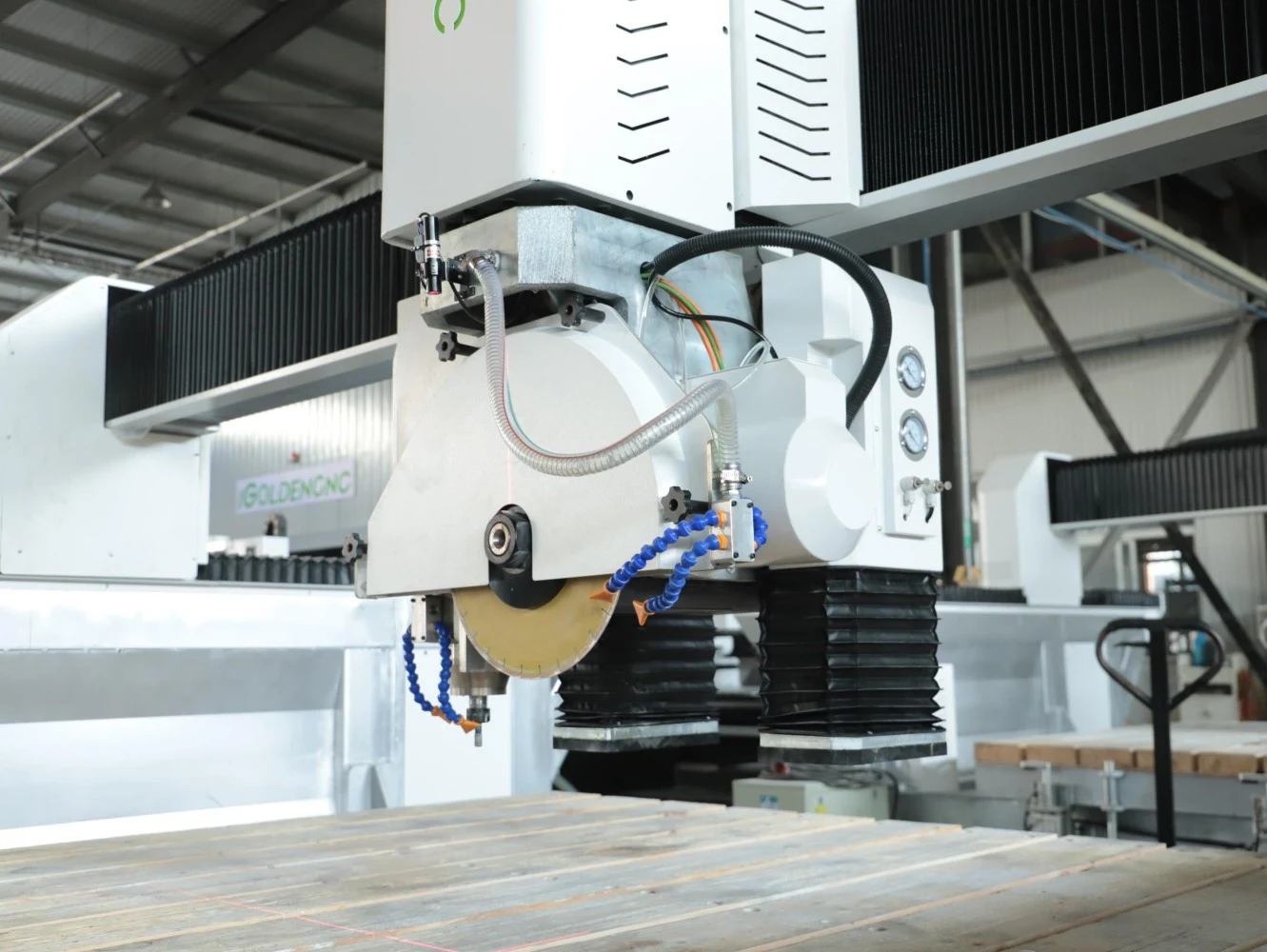

5+1 axis
The machine headautomatically flips+360 degrees

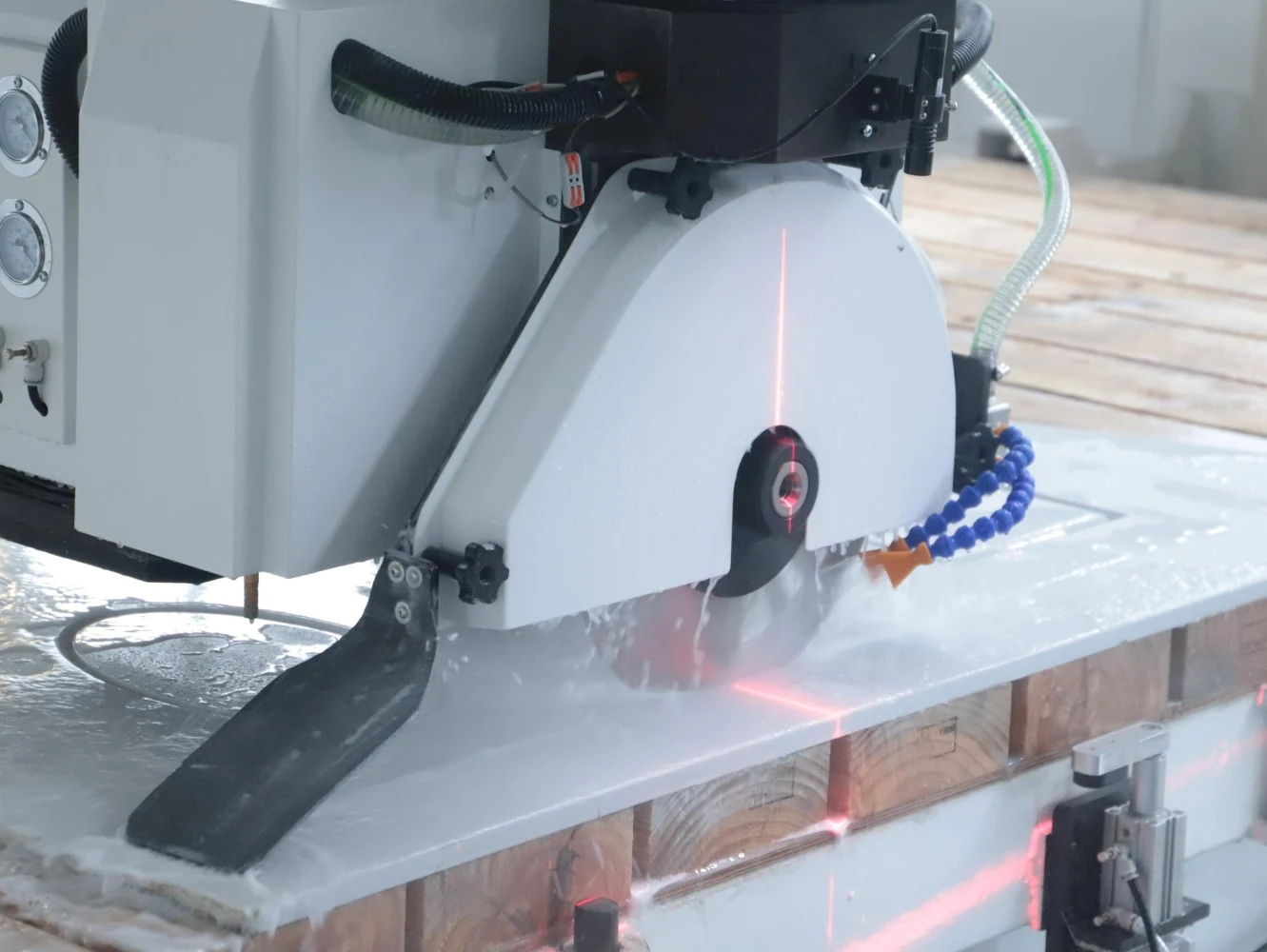

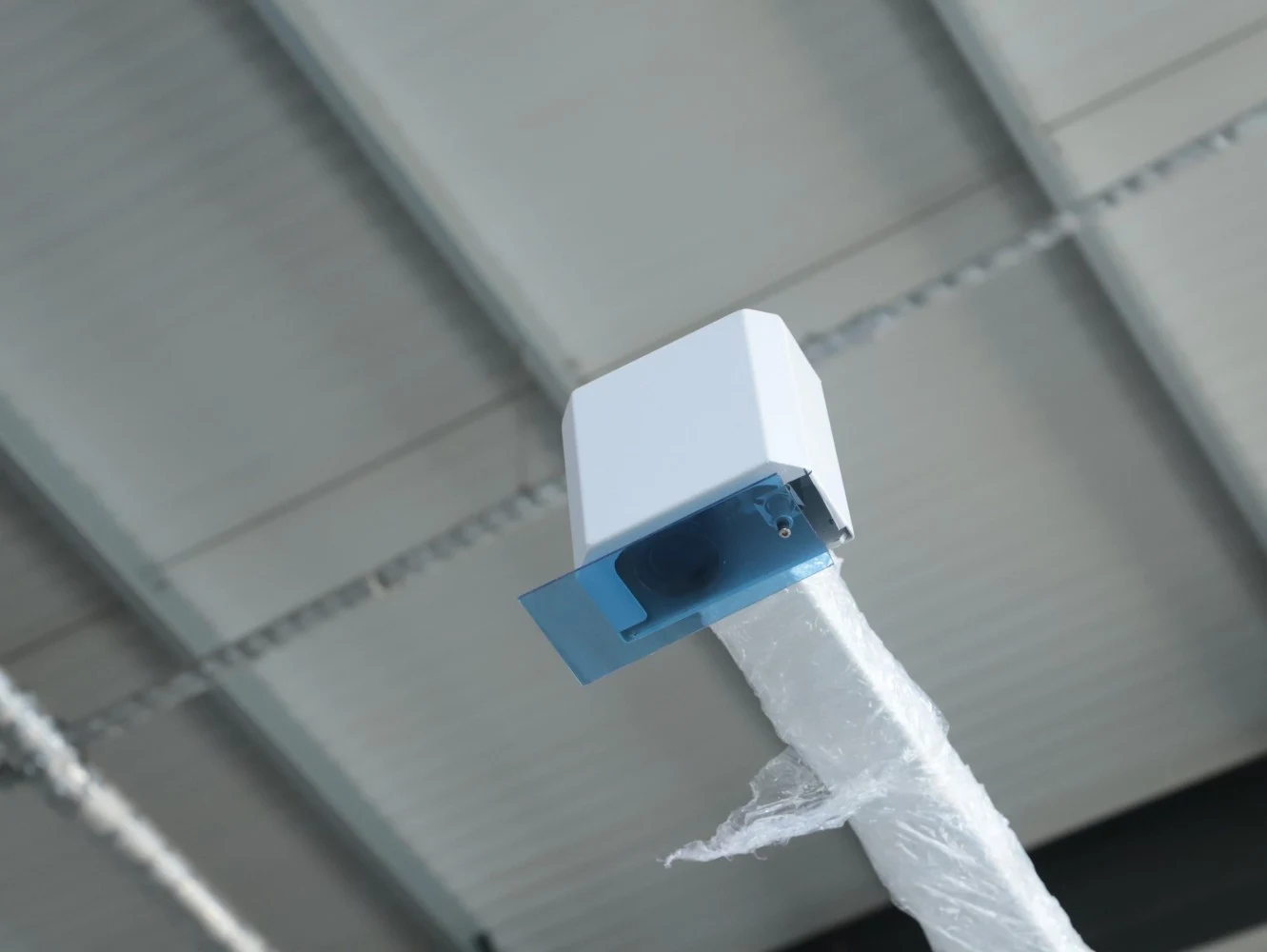

Laser positioning
Infrared Localizationconvenient to observeand adjust

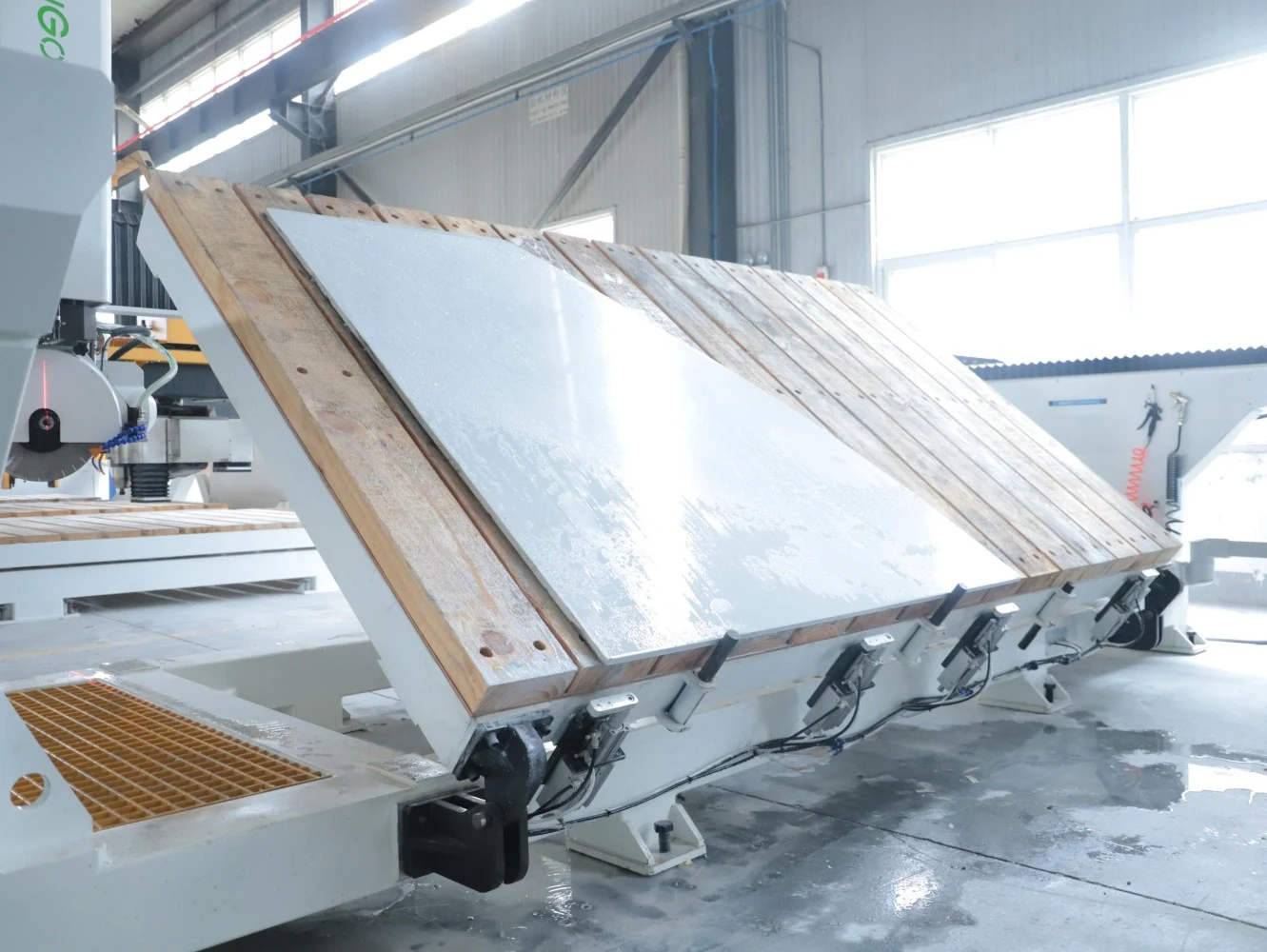

Automatic reproduction
The worktable can beturned left and rightfor easy loadingand unloading
Suction cup displacement（opention）
The machine head canmove the plate, which ismore convenient.
Photo layout function（opention）
After taking photos through the camera, it can be automatically typeset, saving time and effort, more accurate and efficient.

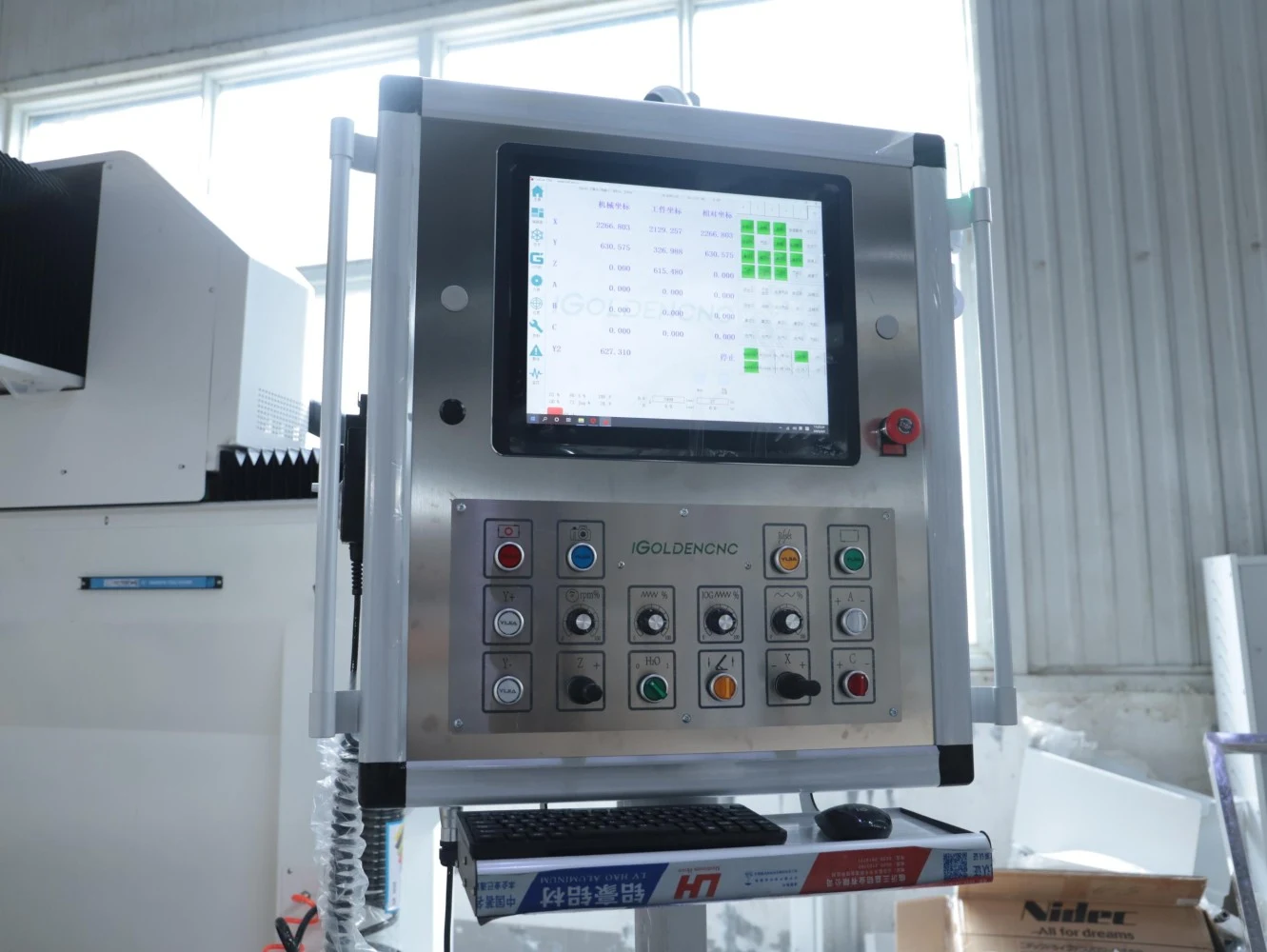

Automatic touch screen cutcam system
Fully automatic touchscreen IGOLDENCNCsystem

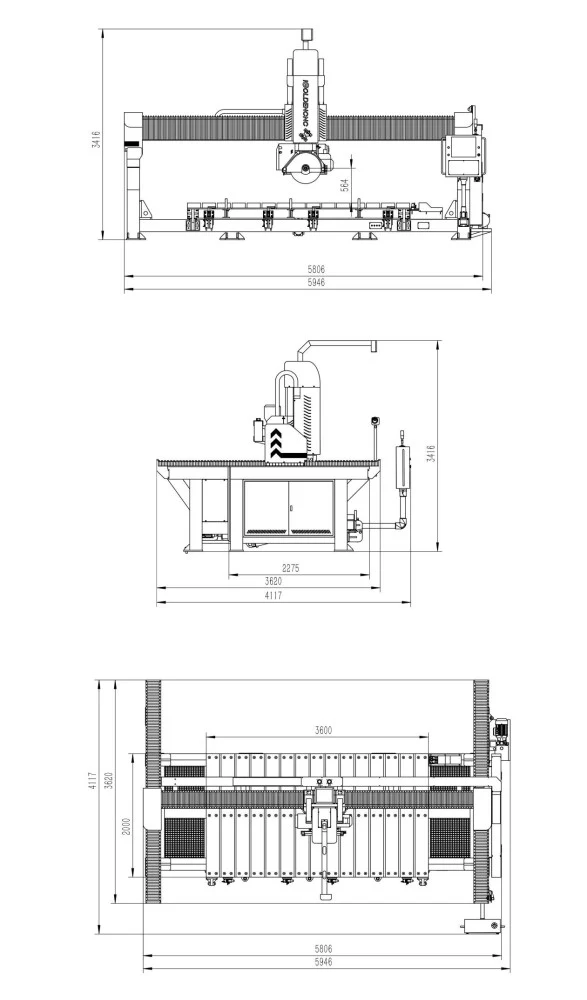

Stone Bridge Saw Machine Parameter:
| Technical indicators | parameter |
|---|---|
| Model | iGS-B3620（Pro） |
| Stroke of X axis | 3600mm |
| Stroke of Y axis | 2000mm |
| Z-axis stroke 1 | 255mm（Blade Diameter 400mm） |
| A axis | 90° |
| C axis | 360° |
| Spindle (optional) | Standard HQD 6kw air-cooled spindle |
| Saw blade motor power | 7.5kw/11kw / 15kw/18.5kw |
| Blade Diameter | 350mm/400mm/450mm |
| Guide rail | Taiwan HIWIN |
| Input power | 3-phase AC 380V/220V 50-60Hz 10A |

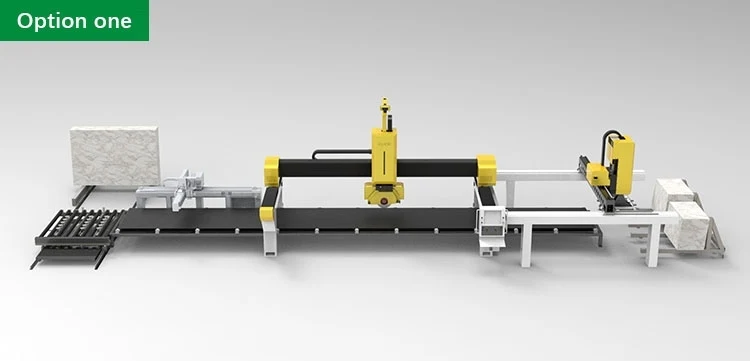

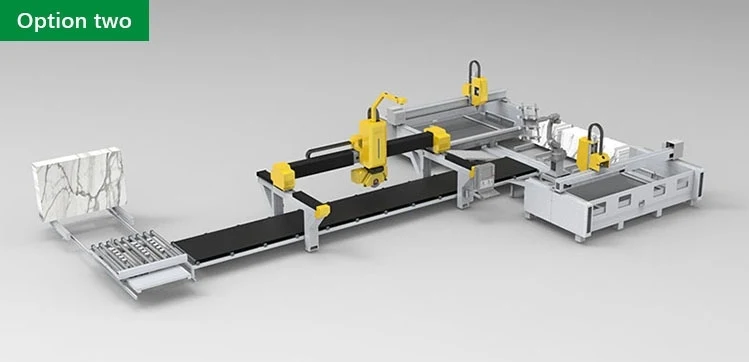

Add automatic connection solution
(Please consult relevant personnel for details)
