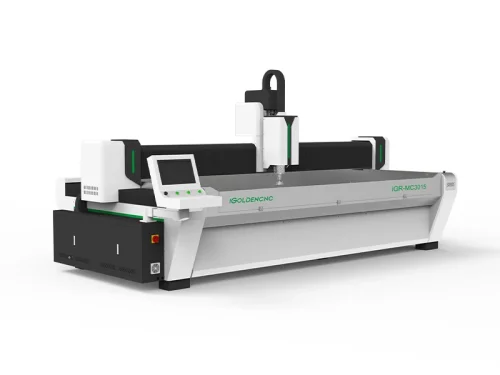

CNC Glass Processing Center

The machine uses a cantilever-style three-axis three-wheel drive structure design. The bed is made of high-quality steel and welded, then processed after quenching. The transmission parts use precision linear guides and servo motor drive, maximizing the machine’s accuracy and stability. The working spindle is equipped with a high-power high-speed motor. It features fast milling speeds, minimal radial runout, and high processing accuracy. Fully automatic CNC processing is employed, standard with 6 tools, and it can perform drilling, notching, and edge grinding and polishing on glass.

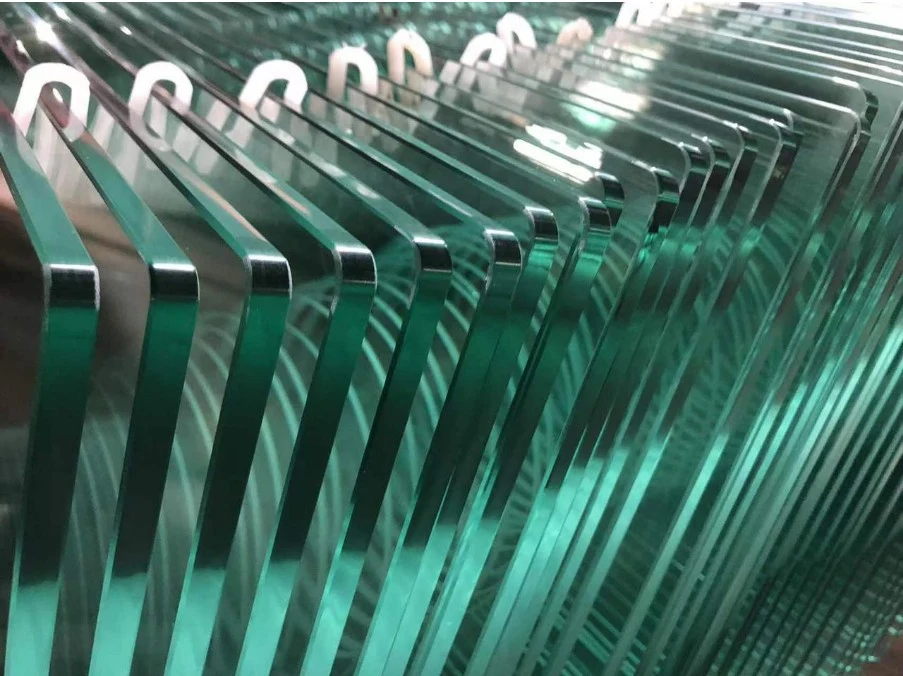

Suitable for processing automotive glass, furniture glass, door and window glass, shower glass, and other shaped glass!

Application

• 1. Suitable for processing automotive glass, furniture glass, door and window glass, shower glass, and other shaped glass.

圔

Product Details

11KW water-cooled main shaft

The use of powerful high-power spindle, cutting force, high efficiency, water circulation cooling, good heat dissipation, smooth and fast operation.

Professional glass operating system

Professional control system, fast and smooth processing, can be cut, drilling, hinge, shaped cutting, edging, glass polishing and other processing.

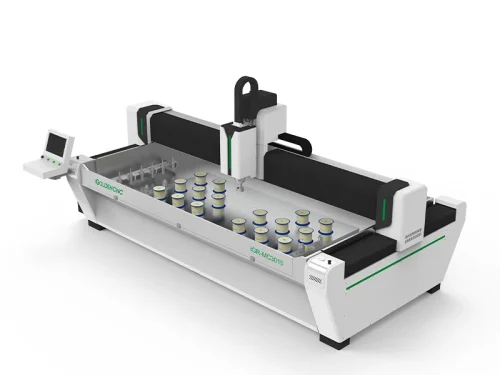

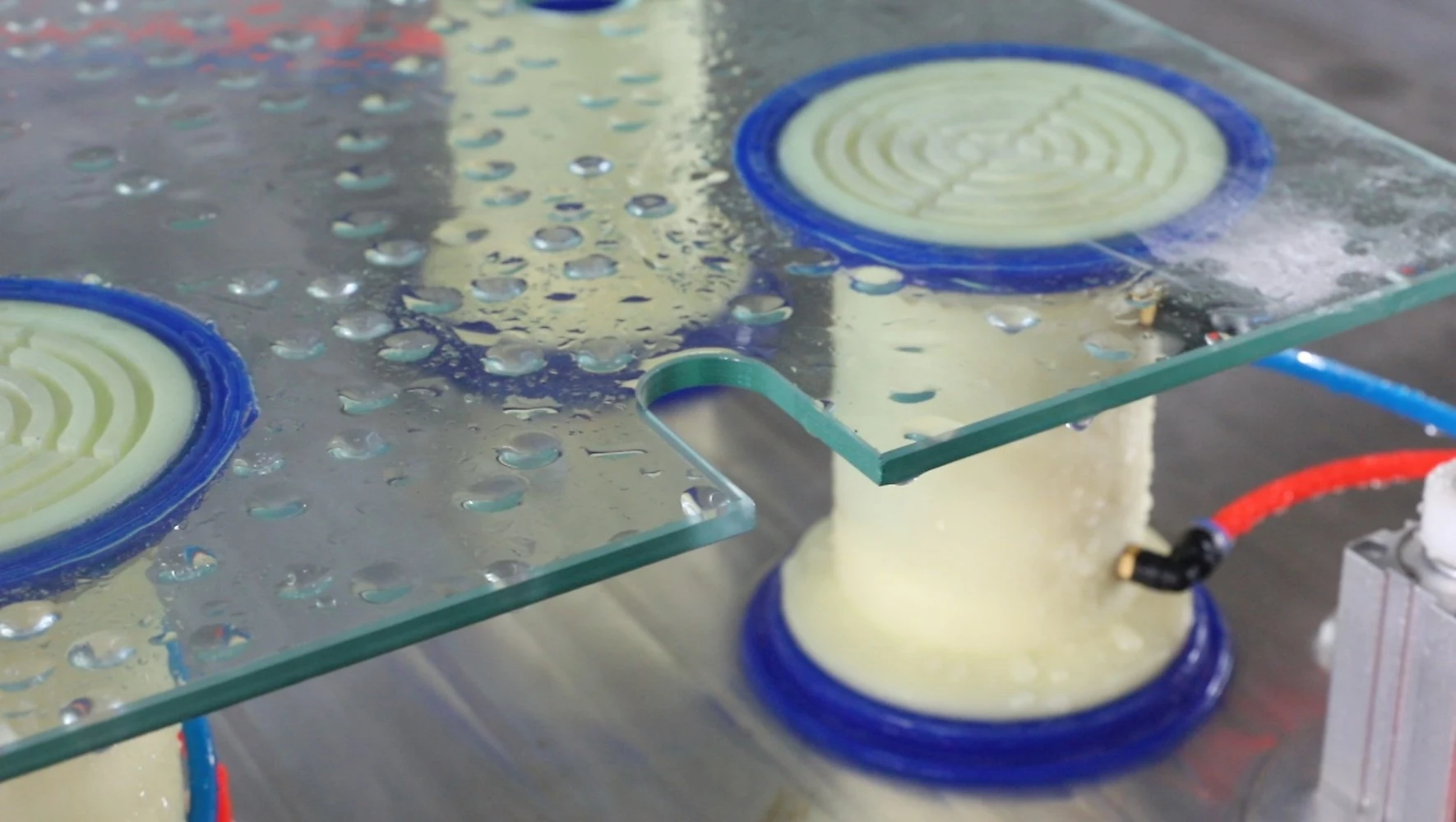

16 suction cups

The suction cup is made of silicone ring and nylon column table, high vacuum, large suction.

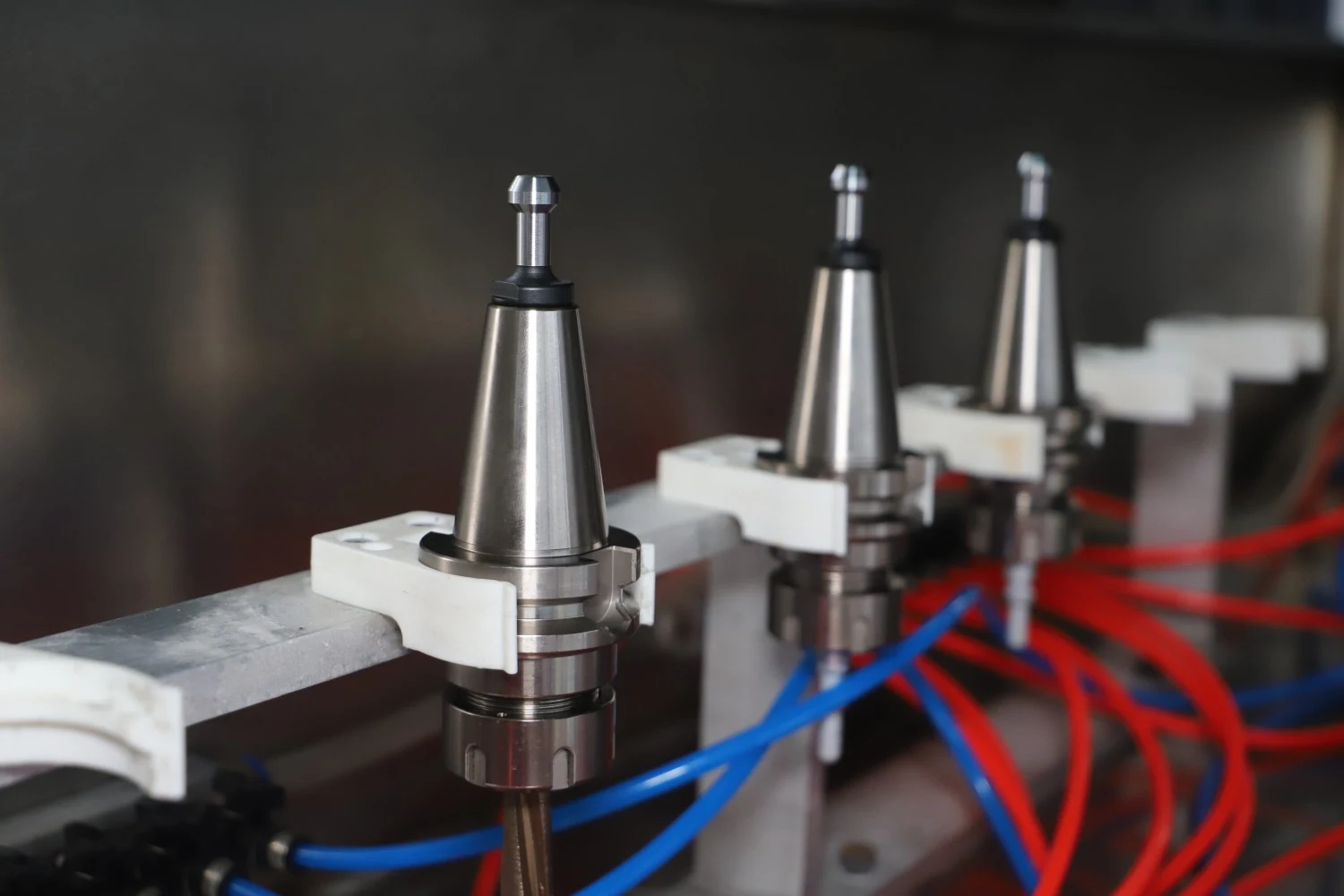

In-line tool changing tool library

The standard is equipped with 6 knives, which can be automatically changed according to different processes to improve processing efficiency.

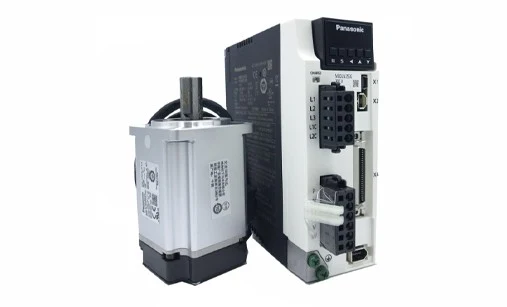

Panasonic servo motor

Good anti-interference ability, stronger stability, with high accuracy and response speed, to achieve stable operation.

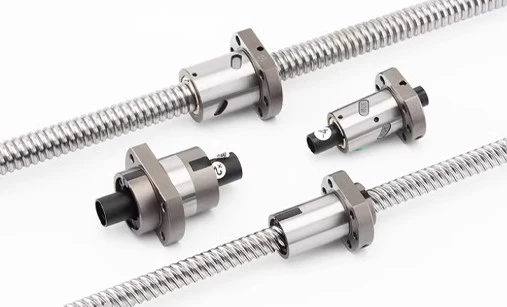

Taiwan TBI

Three-axis full screw drive, using Taiwan TBI screw, high quality, smooth, high positioning accuracy, high-speed silent.

 Parameters
