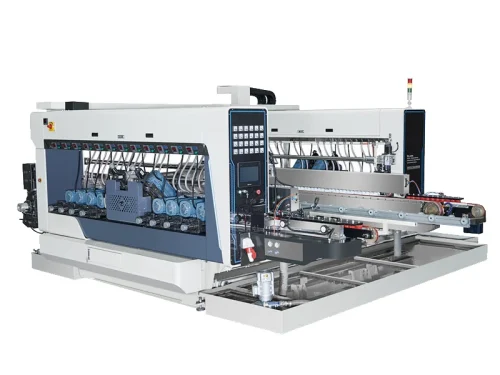

Products Description

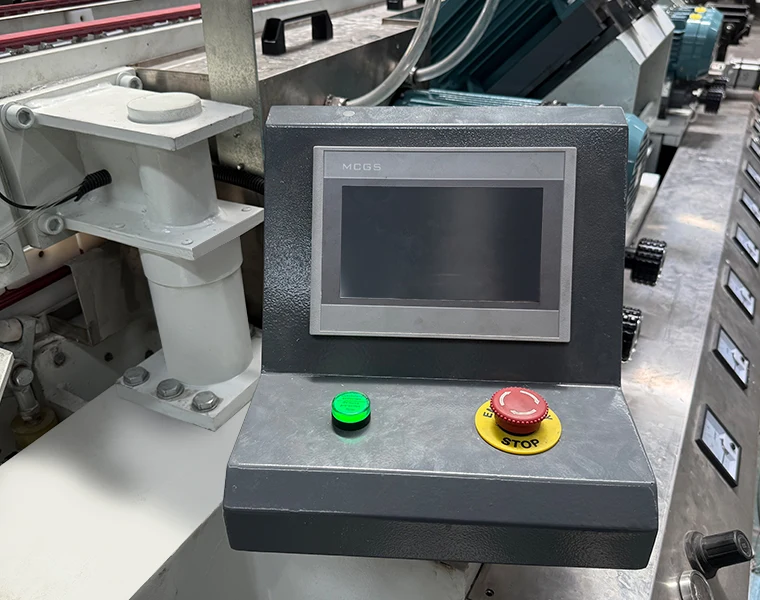

It can complete the grinding and polishing of the two straight edges and the upper and lower edges of the flat glass at one time. A film removal device or a safety device can be installed according to the customer’s require- ments. The width of the glass to be ground is adjusted by a ball screw and monitored by an encoder. With an advanced PLC control system, all parameters can be set on the screen, saving time and effort, and featuring a high degree of automation.
Application
Designed for deep processing of glass, the cleaning area and water systemare made of stainless steel, which is corrosion-resistant and has a longservice life. The floating transmission mechanism is suitable for 3-12mmglass, and the intelligent frequency conversion speed regulation is efficientand flexible. The unique drying design ensures the drying effect whilereducing energy consumption, effectively removes impurities on the glasssurface, and provides a clean substrate for processes such as insulatingglass lamination, helping to improve production efficiency and quality.
Product Details

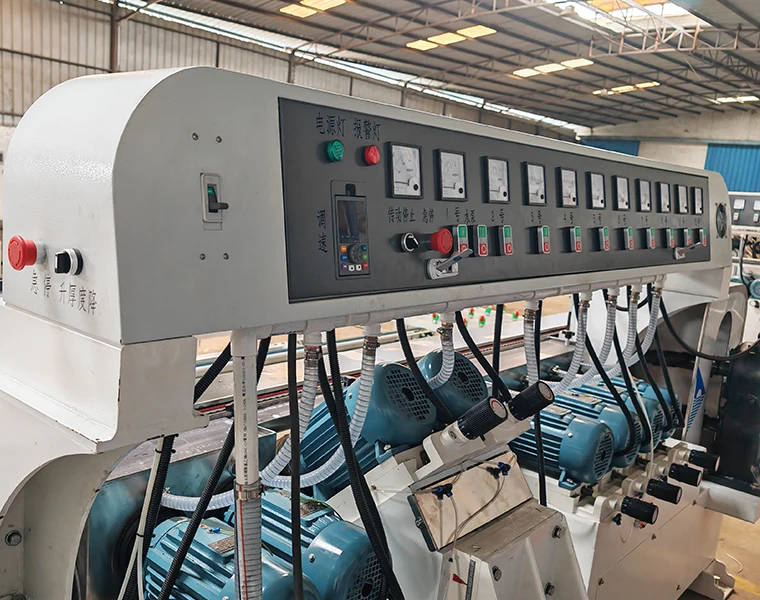

Improved efficiency
The daily production capacity of a single machine reaches 5,000 linear meters, which is 50% more efficient than traditional equipment.
Strong compatibility
Adapt to 3-45mm thick glass, support ultra-clear, tempered, coated and other materials.

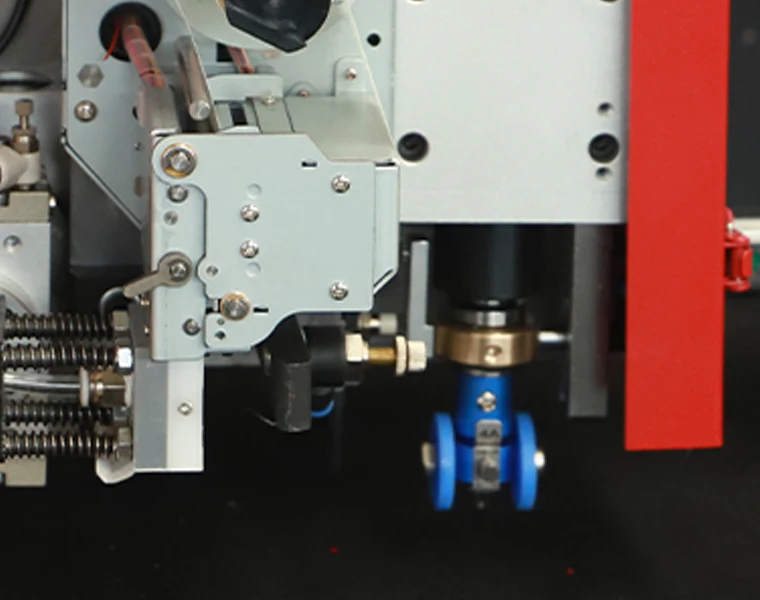

Precision guarantee
Polished with grinding wheels imported from Germany, the edge finish reaches mirror effect (Ra≤0.1μm), and the yield rate exceeds 98%.
Parameters
| Model | LQ1800x2440 |
| Maximum glass size | 1800x2440mm |
| Minimum glass size | 300x450mm |
| Cleaning thickness | 3-15mm |
| Cleaning speed | 2-8m/min |
| Transfer speed | 0-50m/min |
| Dimension(LxWxH) | 7・2×2.6×3.0M (Customizable) |
| 日ectric power | 380V 50Hz 10KW |
