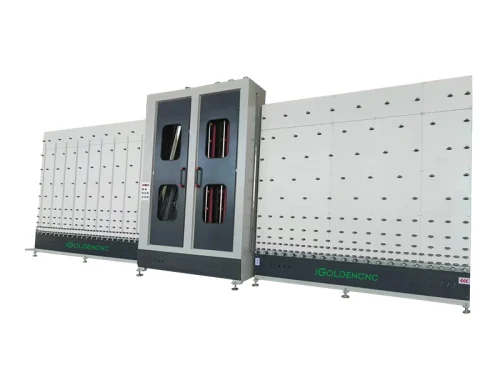

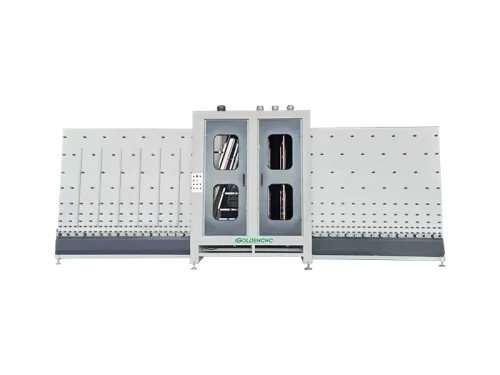

Products Description
Designed for deep processing of glass, the cleaning area and water systemare made of stainless steel, which is corrosion-resistant and has a longservice life. The floating transmission mechanism is suitable for 3-12mmglass, and the intelligent frequency conversion speed regulation is efficientand flexible. The unique drying design ensures the drying effect whilereducing energy consumption, effectively removes impurities on the glasssurface, and provides a clean substrate for processes such as insulatingglass lamination, helping to improve production efficiency and quality.
Application
Designed for deep processing of glass, the cleaning area and water systemare made of stainless steel, which is corrosion-resistant and has a longservice life. The floating transmission mechanism is suitable for 3-12mmglass, and the intelligent frequency conversion speed regulation is efficientand flexible. The unique drying design ensures the drying effect whilereducing energy consumption, effectively removes impurities on the glasssurface, and provides a clean substrate for processes such as insulatingglass lamination, helping to improve production efficiency and quality.
Product Details

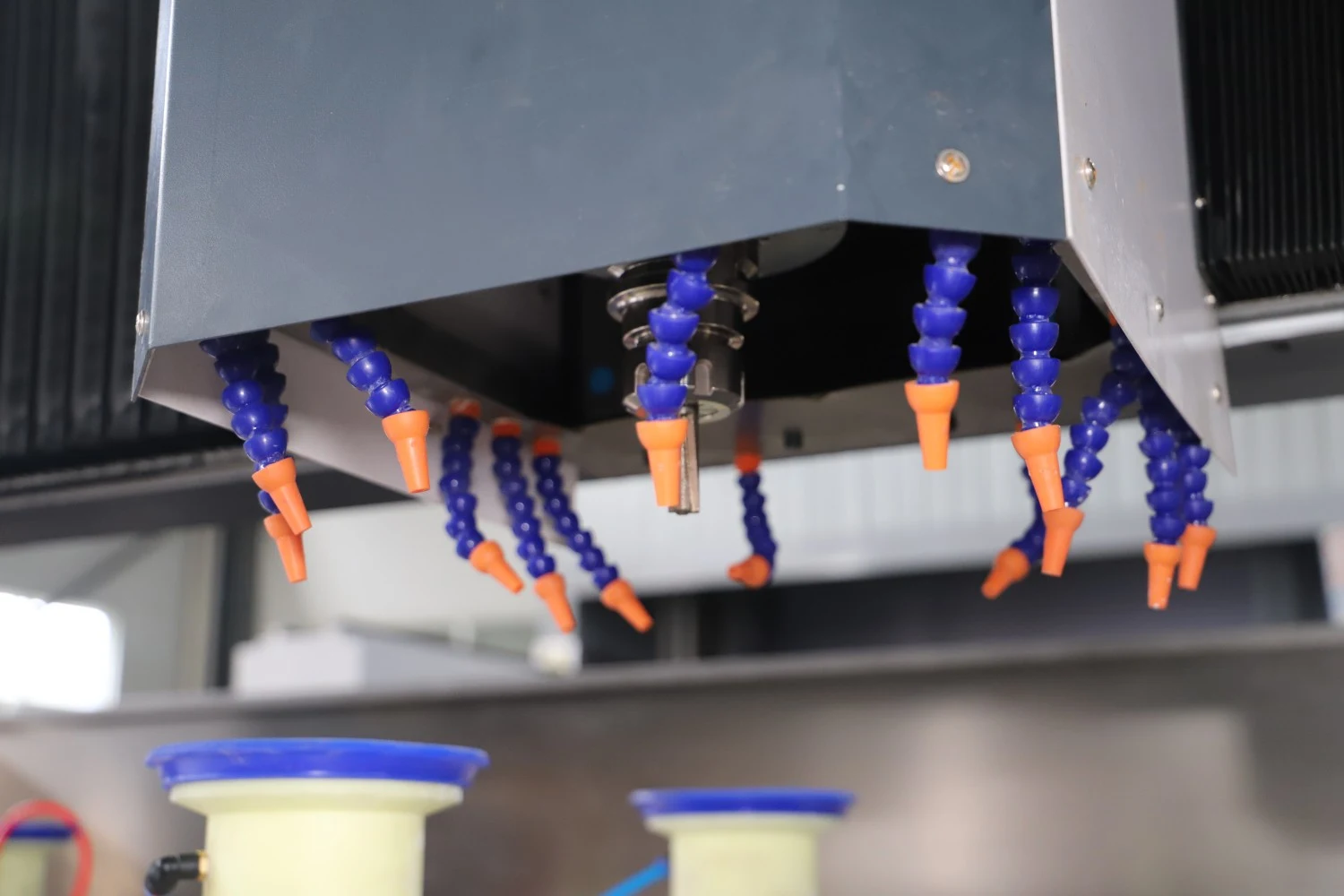

11KW water-cooled main shaft
The use of powerful high-power spindle, cutting force, high efficiency, water circulation cooling, good heat dissipation, smooth and fast operation.

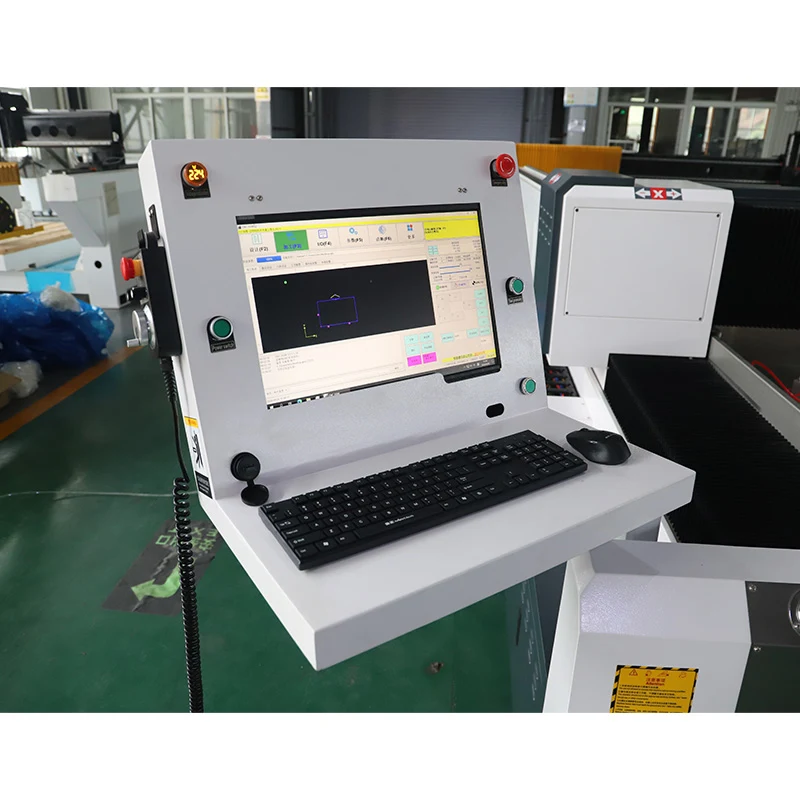

Professional glass operating system
Professional control system, fast and smooth processing, can be cut, drilling, hinge, shaped cutting, edging, glass polishing and other processing.

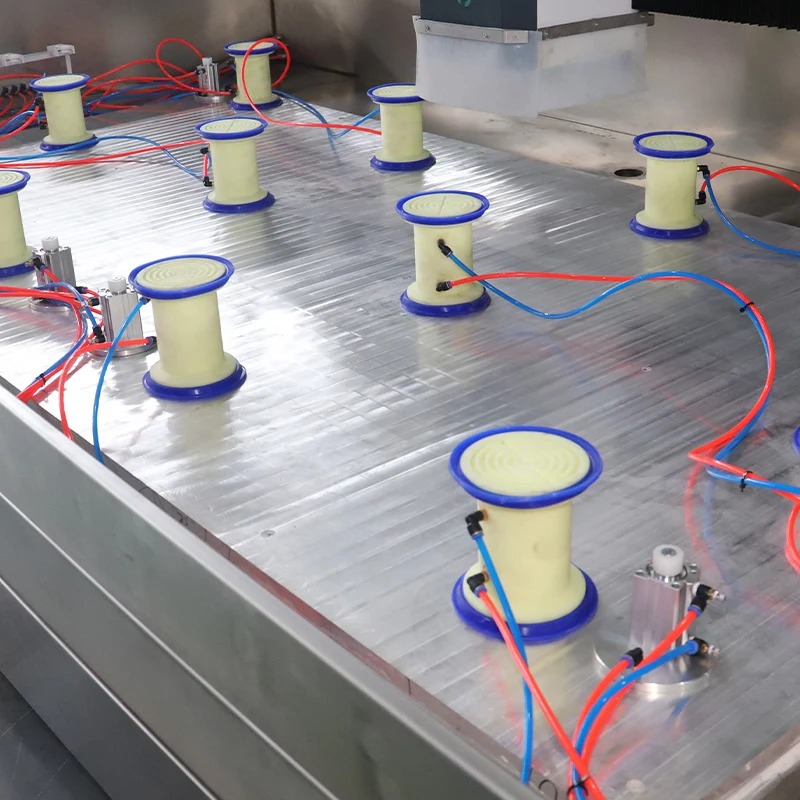

16 suction cups
The suction cup is made of silicone ring and nylon column table, high vacuum, large suction.
6 positioning cylinders
Aluminum alloy cylinder, hard oxidation, good sealing effect, high efficiency, reliable positioning, long service life.
.
In-line tool changing tool library
The standard is equipped with 6 knives, which can be automatically changed according to different processes to improve processing efficiency.
Panasonic servo motor
Good anti-interference ability, stronger stability, with high accuracy and response speed, to achieve stable operation.
Parameters
| Model | LQ1800x2440 |
| Maximum glass size | 1800x2440mm |
| Minimum glass size | 300x450mm |
| Cleaning thickness | 3-15mm |
| Cleaning speed | 2-8m/min |
| Transfer speed | 0-50m/min |
| Dimension(LxWxH) | 7・2×2.6×3.0M (Customizable) |
| 日ectric power | 380V 50Hz 10KW |
