Products Description

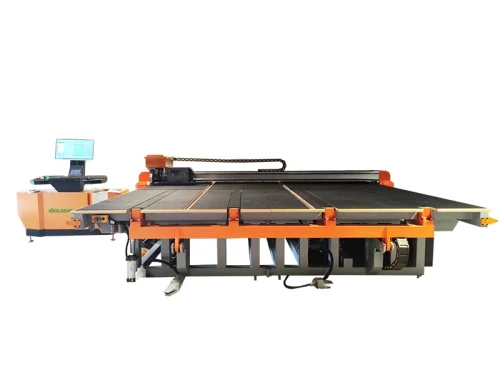

The lever-type glass cutting machine, with its efficient mechanical structure and intelligent cutting system, provides glass processing companies with a high-precision, highly stable solution. By optimizing production processes and reducing overall costs, this equipment helps customers quickly increase capacity and market competitiveness in the construction, furniture, automotive, and other industries, achieving sustainable development and profit growth.
Application
- The production line is fully PLC controlled and equipped with touch screenoperation, which is convenient and accurate. The frequency conversionspeed regulation conveys the glass and can identify coated and Low-Eglass. The wind knife automatically adjusts according to the thickness ofthe glass, and the back of the 04 section is hollowed out for easy wiping ofthe back.
The plate pressing section is controlled by a servo motor roller screw, withaccurate positioning and stable pressing. lt can produce double-layer andtriple-layer insulating glass, efficiently adapt to various needs, and helpimprove production efficiency and quality.
圔
Product Details

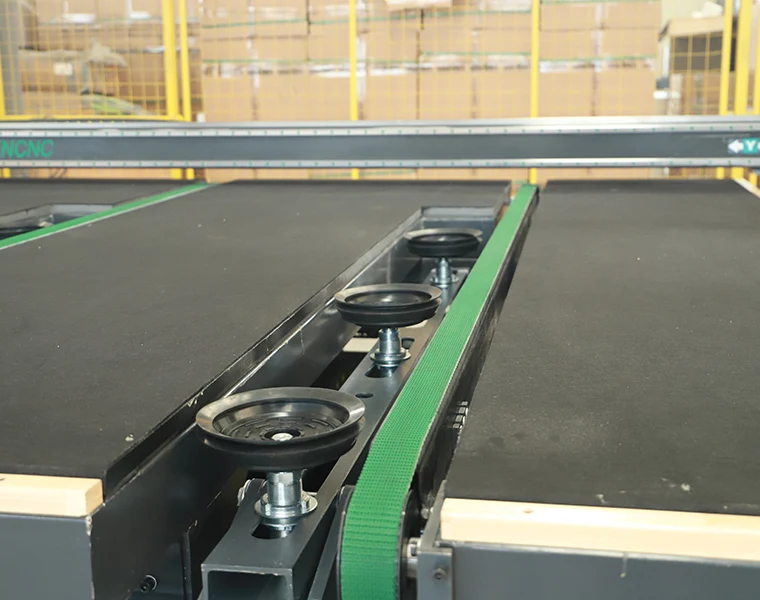

Glass conveyor belt
The glass is transported to the appropriate cutting position through three synchronous conveyor belts combined with the air flotation system, and can also be connected to the air flotation breaking table for breaking

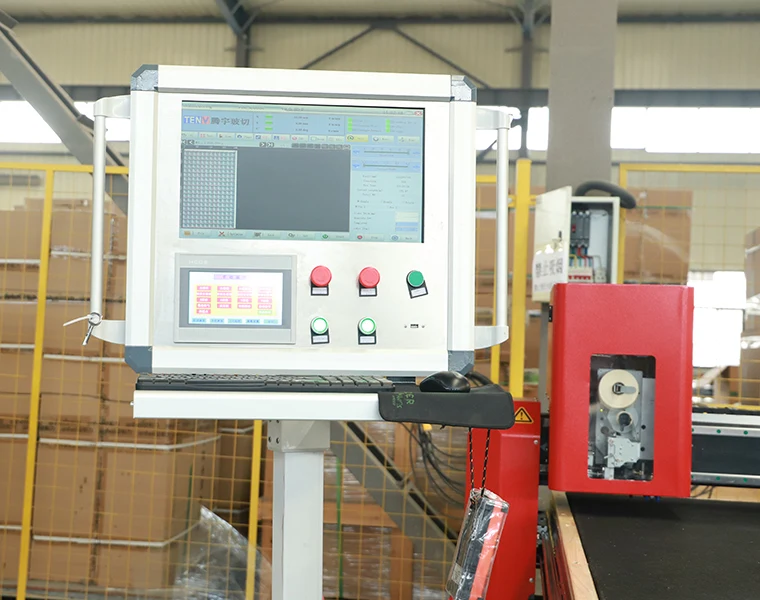

Professional glass operating system
Professional glass cutting control system, to achieve straight and shaped glass automatic cutting, greatly improve the efficiency of glass cutting.
Glass cutting head
The pressure of the cutting head is controlled by the electromechanical integrated precision pressure valve, and the uniform output pressure of the cylinder makes the cutting head perfectly fit to the glass surface,
Parameters
| Model | IGA-W |
| Widest Fabricated Glass Dimension | 1150mm |
| Cutting Thickness | 2.3mm-12mm |
| The minimum size for glass processing | 220mm*220mm |
| Maximum power | 13.8KW |
| Floor Area | 4000mm*2100mm*1020mm |
| Weight | 800KG |
| The number of feeding rubber rollers | 9 |
| The number of discharging rubber rollers | 18 |
| Fan power | 0.75KW |
| Power of the drive motor | 0.55KW |
| Power of the water pump | 0.45KW |
| Power of the brush motor | 0.75KW |
