Products Description

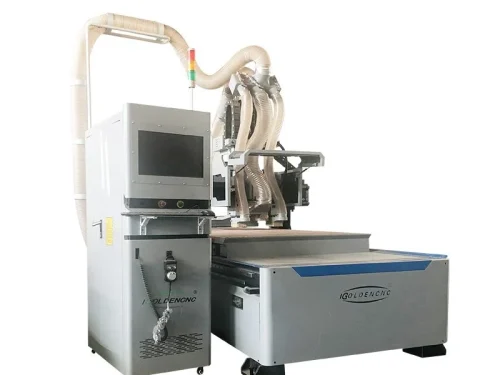

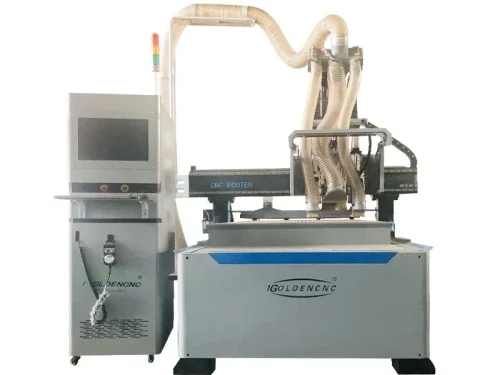

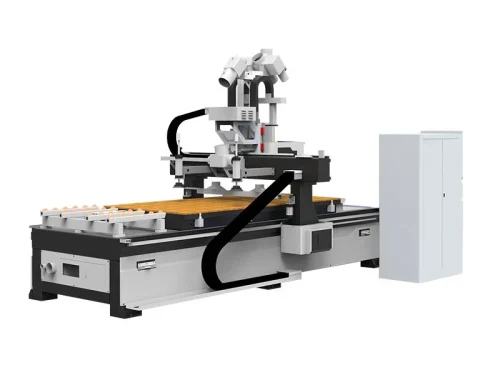

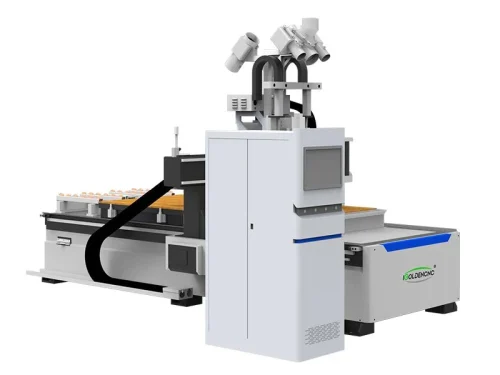

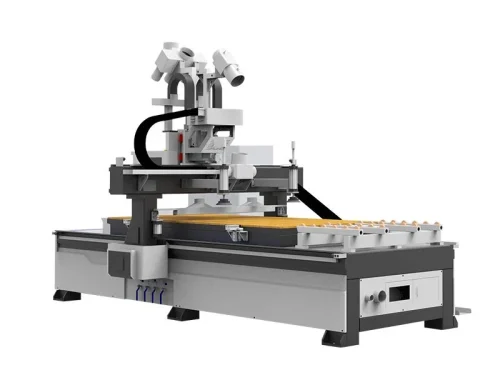

1325 Double Spindle Drilling and Milling Machine
(1) Optimize cutting, punching, slotting, and perfect combination, and alternateprocessing of double tables to maximize efficiency and output;
(2) Equipped with a 5+4 nine-hole vertical drill package, which is more suitablefor drilling panel furniture, more convenient and faster;
(3) Adopt 200+250 thick-walled generous square tube support structure,engineering aesthetic design structure;
(4) Advanced CNC system, stable performance and simple operation;
(5) Adopt double-layer vacuum adsorption table, which can adsorb plates ofdifferent sizes;
(6) Adopting four -direction and six-action automatic positioning system for plate,making plate positioning more accurate;
(7) Equipped with auxiliary feeding and dust removal devices;
Application
(1) Cabinets, wardrobes, bank office furniture, computer desks, children’sfurniture, panel furniture, office furniture;
(2) Making hollow lattices and soft-packed background walls fordecoration;
(3) Cutting the board furniture, slotting and arranging holes;
Product Details
Dual-tube vacuum system
The dual-tube design achieves dust classification filtration, increasing suction by 40%; the high-power motor delivers continuous output, completely eliminating dust from engraving and cutting.
High-precision positioning cylinder
Uses industrial-grade pneumatic positioning technology to achieve millimeter-precision locking
Second-level response—the cylinder acts instantly, and the plate automatically locks upon contact with the table, reducing manual adjustment time;
Automatic Loading and Unloading Platform
Significant Reduction in Labor Costs — Completely replaces 2-3 manual handlers, enabling 24-hour continuous production, reducing labor costs by 70%;
Exponential Efficiency Increase — Processing and loading/unloading occur simultaneously, equipment utilization exceeds 90%, and production capacity increases by 200%;
Tool Holder
High-rigidity alloy structure prevents tool runout, ensures no looseness when changing tools, and increases lifespan by 50%; maintenance-free design thoroughly solves the problem of unstable manual tool installation accuracy.
Automatic Tool Setter
No manual intervention, ±0.01mm precise tool length measurement, 50% improvement in tool change efficiency; intelligent collision detection to eliminate the risk of broken tools.
Parameter
| Technical indicators | parameter |
|---|---|
| Model | iGC-DD-1325 |
| Working area | 1300*2500*300mm |
| Machine Body | Square Tube Welding Structure |
| Spindle | HQD 6.0kw Air Cooling*2+9 hole vertical drill |
| Speed Speed | 18000rpm |
| Positioning Accuracy | 0.05mm |
| Repositioning Accuracy | 0.02mm |
| Worktable | PVC Vacuum Ddsorption Worktable + Worktable Guide Rails Driver Reducer Control System |
| Guide Rails | Taiwan HIWIN |
| Driver | Japan YASKAWA Servo Drive and Servo Motor |
| Reducer | Japan SHIMPO |
| Control System | Taiwan LNC |
| N.WIG.W. | 2700/3000kg |
OUR advantage
IGOLDENCNC employs more than 500 people worldwide. Equipped with an independent and strong core R&D team,
10+ years manufacturing experience
iGOLDENCNC’s laser machinery has been exported to more than 180 countries.
Strict Quality Control System
Which controls the product quality from raw materials, production, and delivery.
Productive Forces
The factory covers an area of 22,000 square meters with 3 production workshops
Product Quality
Each machine needs to go through 13 inspection processes from order to delivery.
24 hours full service
You can always enjoy comprehensive pre-sale services, free pre-sale consultation and free sample making from iGOLDENCNC.
