Products Description

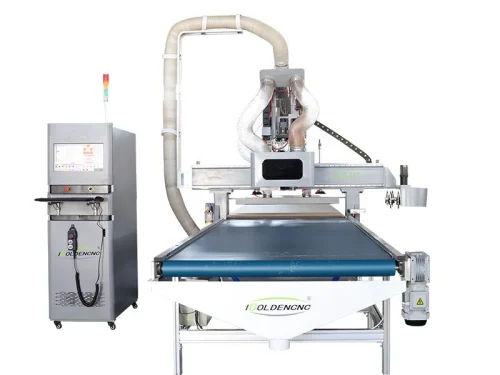

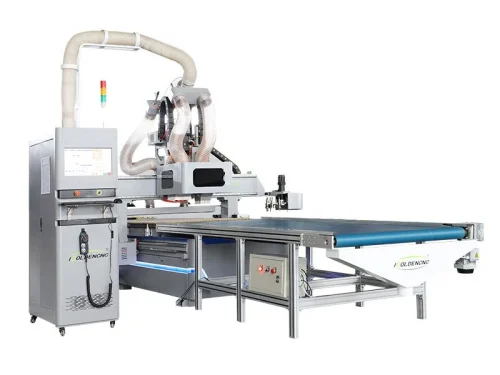

1325-Disc Tool Change Drilling Machine Automatic Loading and Unloading
The ATC nesting CNC machine with disc tool changer is equipped with a 9.Okvair-cooled spindle, and independent operation. Usually used in conjunction withlabelling coding machines and automatic loading and unloading platforms.High speed, high precision, high efficiency and stability. It is suitable forprocessing various cabinet doors and wooden doors.
Application
>Furniture industry: panel furniture, cabinets, sliding doors, soft bags,office furniture, wooden doors, whole house customization, etc.
>Wooden products: speakers, game cabinets, computer tables, sewingmachine tables, musical instruments;
>Sheet metal processing: insulation parts, plasticized workpieces; pcb;inner body of motor vehicles, bowling track; carbonized mixturessuch as anti-fold special board, epoxy resin, abs, pp, pe;
>Decoration industry: engraving and cutting of acrylic, PVC, MDF,plexiglass, plastic, and copper and aluminum soft metal plates.
Product Details

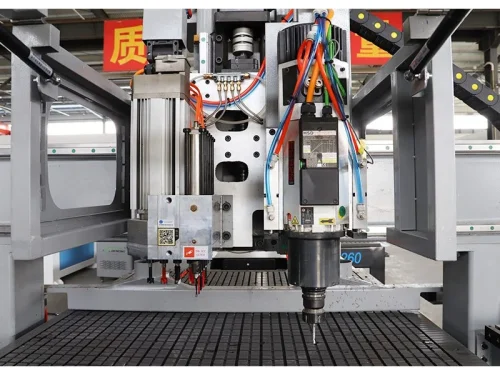

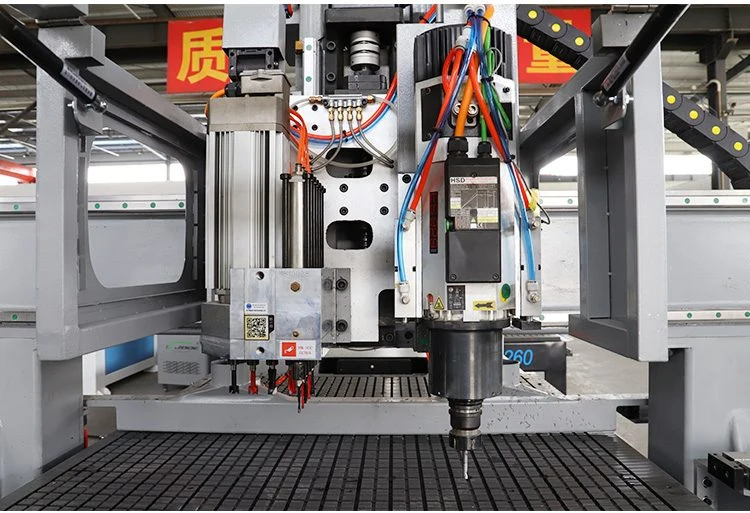

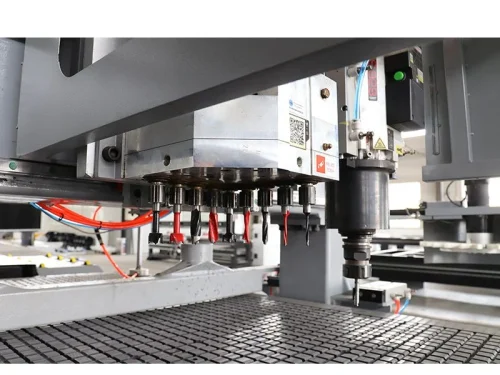

9.0kw ATC air-cooling and 5+4 row drill package

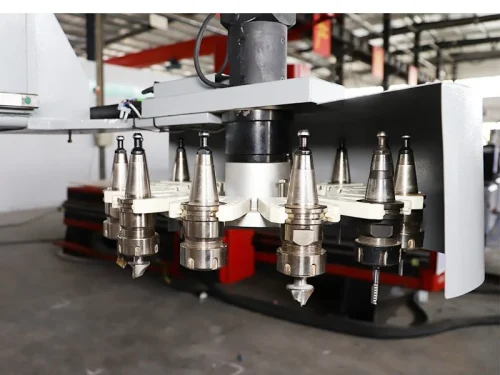

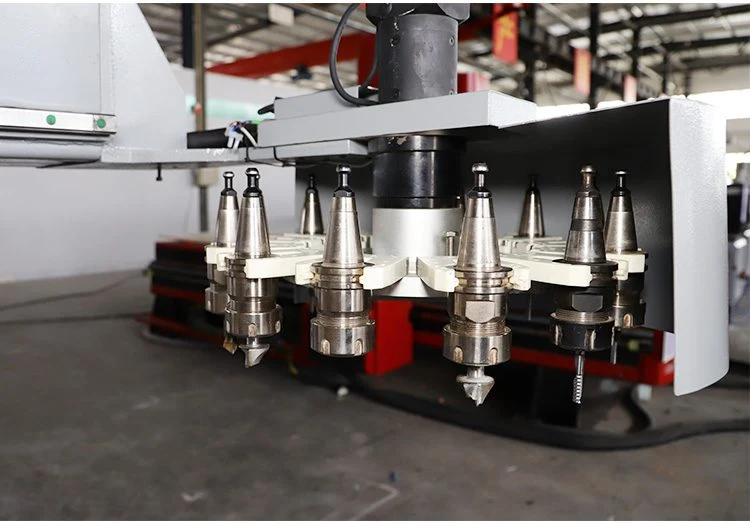

Disc magazine, 10 tool changers

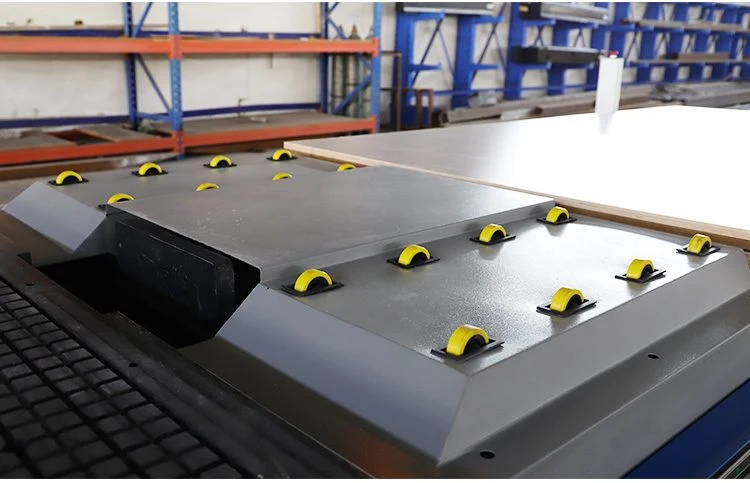

Auxiliary roller for easy feeding

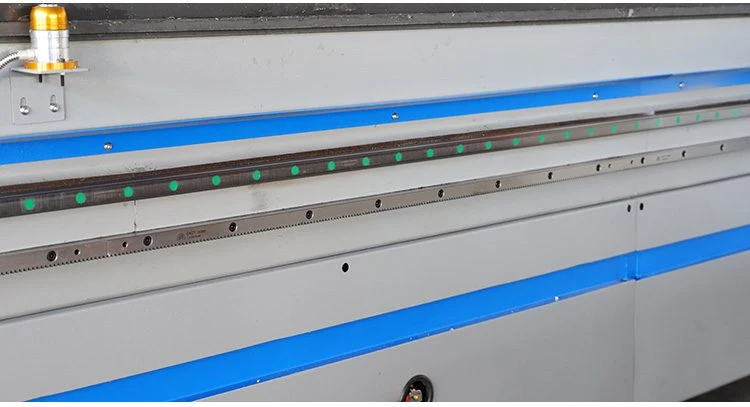

Taiwan high precision rack + HINWINguide rail
Add to automatic loading and unloading device to improve work efficiency.
Parameter
| Technical indicators | parameter |
|---|---|
| Model | iGC-DT-1325 |
| Working area | 1300*2500mm |
| Max. working speed | 60000mm/min |
| Max. Working Speed | 30000mm/min |
| Spindle Power | 9.0kw ATC air-cooling + 5+4 row drill package |
| Positioning Accuracy | 0.03mm |
| X, Y Axis Transmission | Rack |
| Z Axis Transmission | Ball screw |
| Repositioning Accuracy | 0.02mm |
| Working Voltage | 380V/50Hz |
| Inverter | FULING 11kw |
| Vacuum pump | 7.5KW |
| Dust collector | 5.5kw |
OUR advantage
IGOLDENCNC employs more than 500 people worldwide. Equipped with an independent and strong core R&D team,
10+ years manufacturing experience
iGOLDENCNC’s laser machinery has been exported to more than 180 countries.
Strict Quality Control System
Which controls the product quality from raw materials, production, and delivery.
Productive Forces
The factory covers an area of 22,000 square meters with 3 production workshops
Product Quality
Each machine needs to go through 13 inspection processes from order to delivery.
24 hours full service
You can always enjoy comprehensive pre-sale services, free pre-sale consultation and free sample making from iGOLDENCNC.
