Products Description

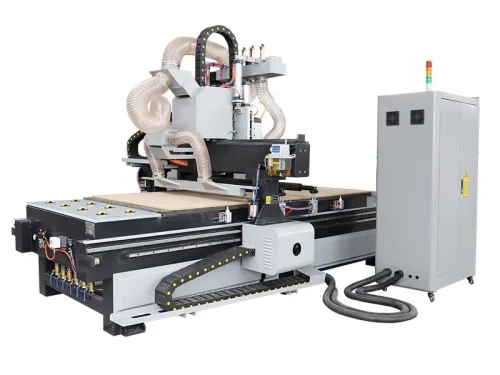

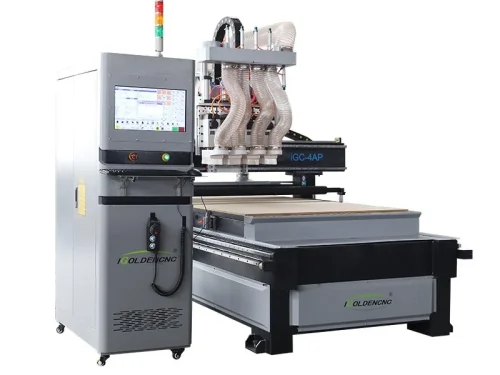

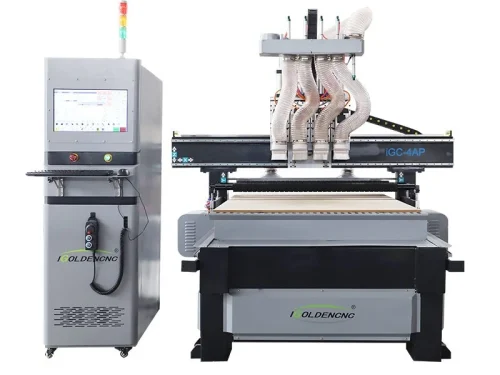

Four-process cutting machine press wheel
The equipment is compatible with edge banding machines, laminating machines, and other production lines, suitable for whole-house customization and various types of furniture manufacturing (cabinets, wardrobes, office furniture, panel furniture, etc.), and can complete complex processes such as cutting, grooving, engraving, and soft-wrapped feature walls, significantly saving labor costs.
Application
(1) Cabinets, wardrobes, bank office furniture, computer desks, children’sfurniture, panel furniture, office furniture;
(2) Making hollow lattices and soft-packed background walls fordecoration;

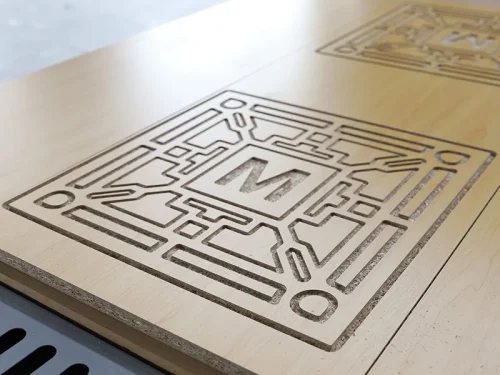

(3) Cutting the board furniture, slotting and arranging holes;
Product Details

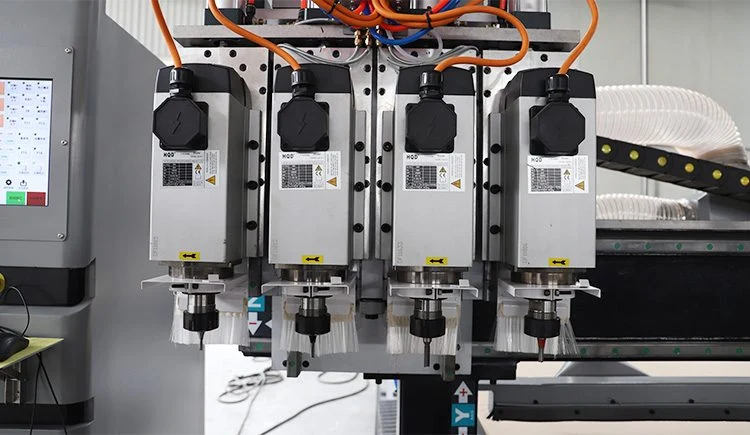

The tool change speed is fast, and the tool can be changed in seconds, which improves the processing efficiency.

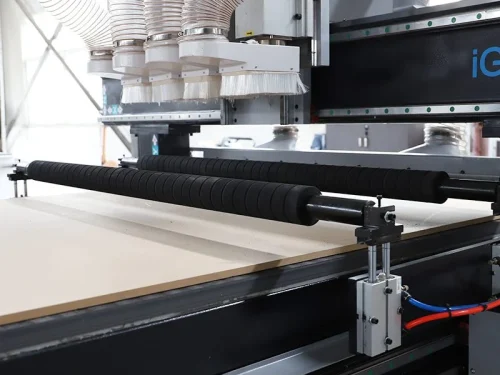

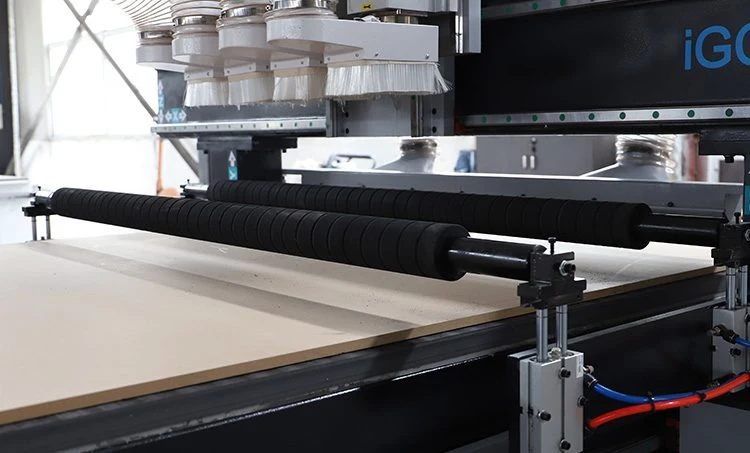

The sub-wheel design can better ensure the stability of the board.

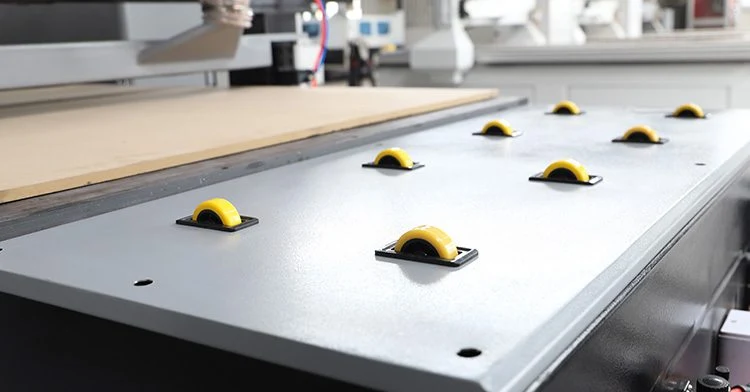

Auxiliary rollers, easy loading.

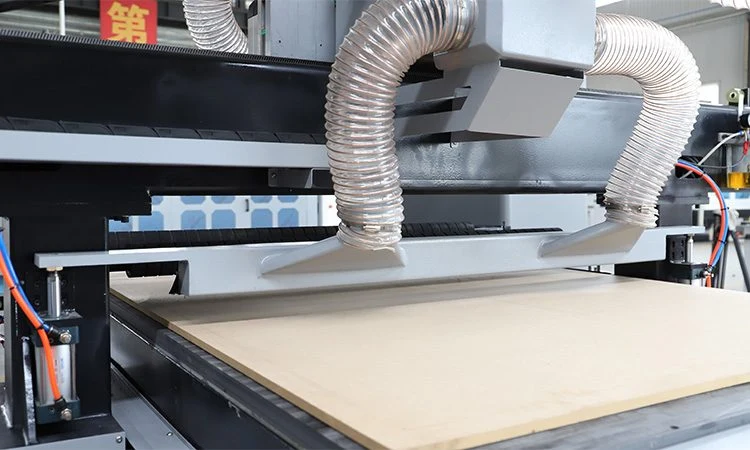

Pushing device, convenient for unloading.

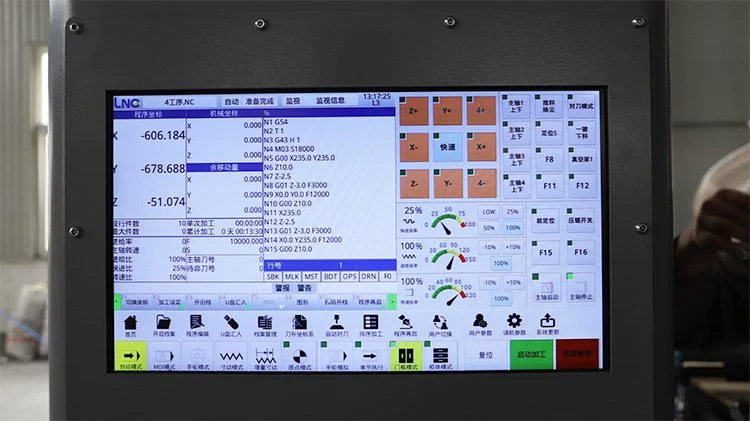

LNC CNC control system
Parameter
| Technical indicators | parameter |
|---|---|
| Machine stroke | 1300mm *2500mm |
| X axis travel | 1300mm |
| Y axis travel | 2500mm |
| Z axis travel | 200mm |
| File format | G code |
| Workbench structure | A-grade hard special vacuum adsorption table + Pressure roller |
| Operating Voltage | 380V/50HZ |
| Bed frame | Heavy-duty stable bed |

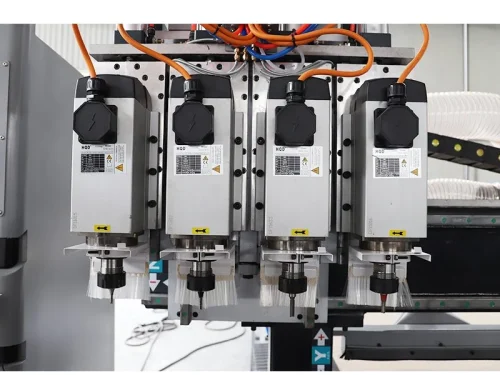

| Spindle | HQD 6KW air-cooled tool change spindle*2 + 4.5KW *2 |
| Drive System | Servo motor drive |
| Control System | Taiwan LNC + wireless handwheel |
| Rack | Taiwan high precision rack |
| Guide | Taiwan HIWIN+Original Slider |
OUR advantage
IGOLDENCNC employs more than 500 people worldwide. Equipped with an independent and strong core R&D team,
10+ years manufacturing experience
iGOLDENCNC’s laser machinery has been exported to more than 180 countries.
Strict Quality Control System
Which controls the product quality from raw materials, production, and delivery.
Productive Forces
The factory covers an area of 22,000 square meters with 3 production workshops
Product Quality
Each machine needs to go through 13 inspection processes from order to delivery.
24 hours full service
You can always enjoy comprehensive pre-sale services, free pre-sale consultation and free sample making from iGOLDENCNC.
