Products Description

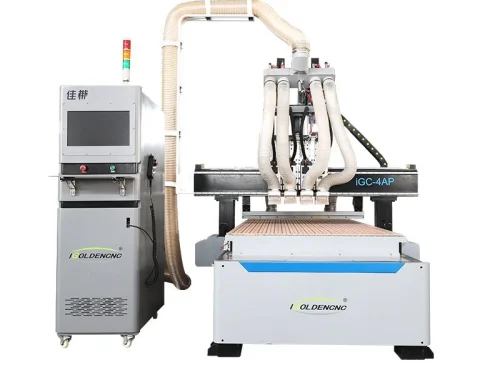

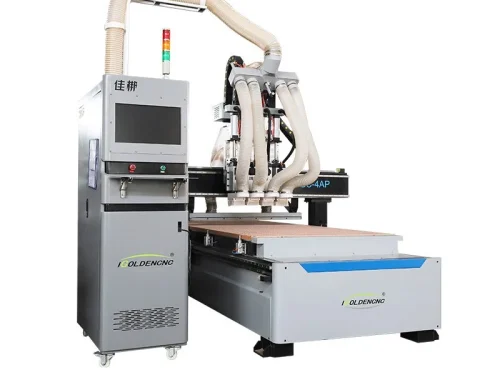

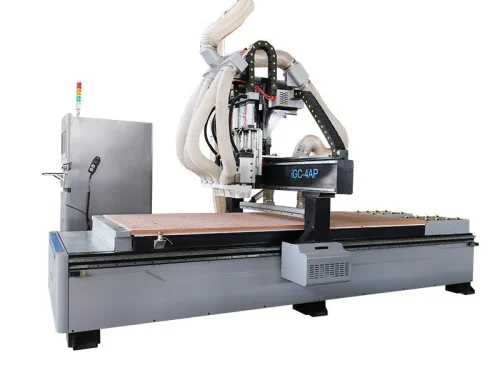

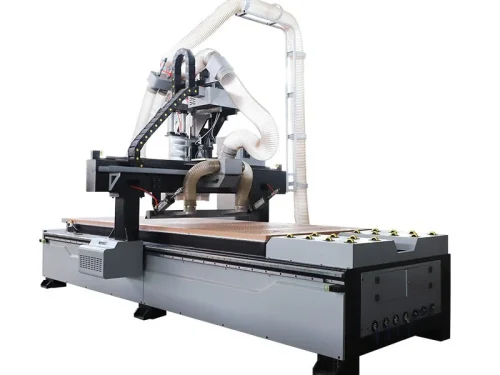

1325-Four-Process Cutting Machine
Can be used with edge banding machines, laminating machines, side drilling machines, and other equipment for whole-house custom processing; suitable for the production and processing of various furniture: cabinets, wardrobes, office furniture, computer desks, children’s furniture, panel furniture, cutting, grooving and drilling, decorative hollow frame, soft bag background wall production, etc.
Product size
Product Details

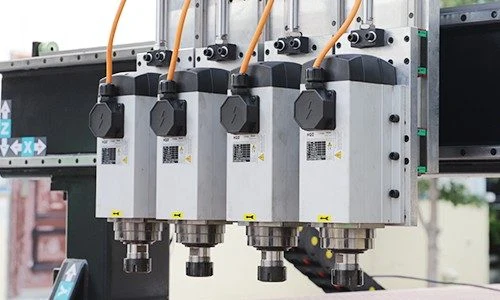

Air-cooled automatic tool-changing spindle
High rotational accuracy, low vibration, low noise, good heat dissipation, grease lubrication resistant to high temperatures, durable, and long-lasting.

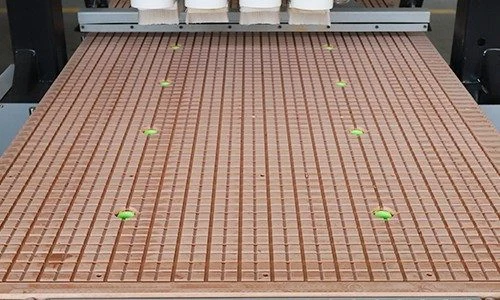

Vacuum suction countertop
Vacuum suction countertop, strong suction, no board slipping, each area can be controlled separately.

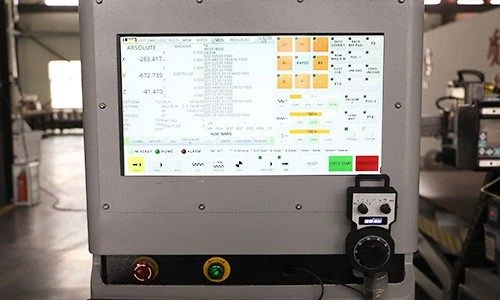

Baoyuan Control System Handwheel
Jiabang standalone electric control cabinet, humanized design, Taiwan Baoyuan system, simple and convenient operation.

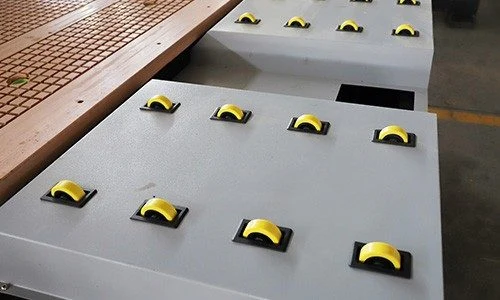

Auxiliary feeding rollers
Assists with feeding materials, easy and convenient.

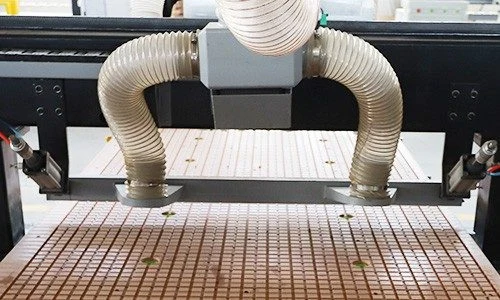

Pushing Material & Vacuum Device
Standard feeding device saves time and effort; high dust removal efficiency and strong suction.
Parameter
| Technical indicators | parameter |
|---|---|
| Model | iGC-4AP-1325 |
| Working area（X,Y,Z） | 1300*2500*250mm |
| Max. empty speed | 60000mm/min |
| Max. working speed | 30000mm/min |
| Spindle Power | HQD 6.0kw air cooled tool change spindle*4 |
| Spindle speed | 18000rpm |
| positional accuracy | 0.05mm |
| X,Y axis drive | Rack |
| Z axis drive | Ball screw |
| Repeated positioning accuracy | 0.02mm |
| Command language | G Code |
| Port | USB |
| Working voltage | AC220V/380V, 50Hz |
OUR advantage
IGOLDENCNC employs more than 500 people worldwide. Equipped with an independent and strong core R&D team,
10+ years manufacturing experience
iGOLDENCNC’s laser machinery has been exported to more than 180 countries.
Strict Quality Control System
Which controls the product quality from raw materials, production, and delivery.
Productive Forces
The factory covers an area of 22,000 square meters with 3 production workshops
Product Quality
Each machine needs to go through 13 inspection processes from order to delivery.
24 hours full service
You can always enjoy comprehensive pre-sale services, free pre-sale consultation and free sample making from iGOLDENCNC.
