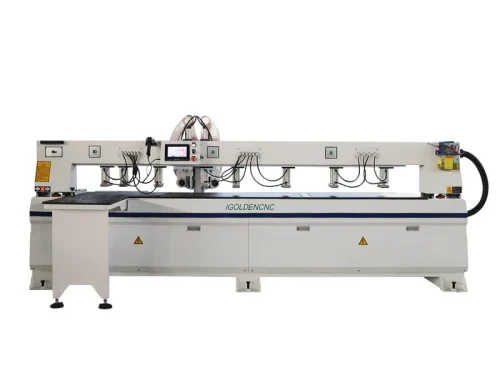

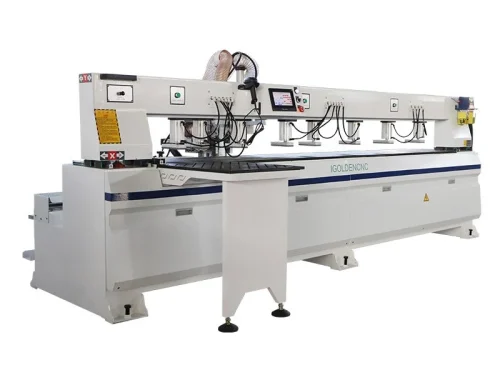

Four-process handle-free side hole machine

Four-process handle-free side hole machine

• Supports invisible hardware processing, with two methods for drilling: QR code scanning drilling and laser positioning drilling. Equipped with a five-sided drilling and milling machine, and undergoes aging and tempering treatment to ensure the stability of high-speed operation over long periods.

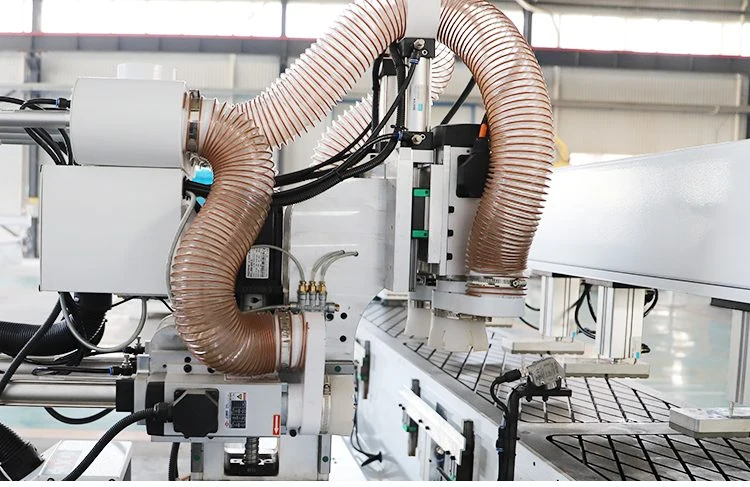

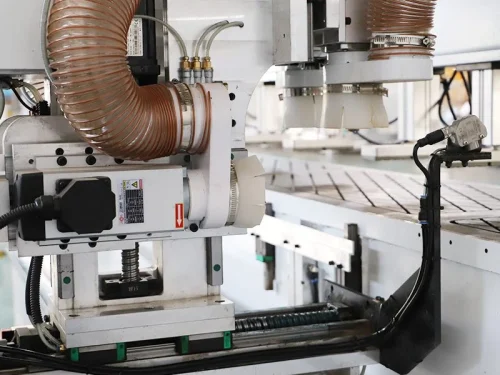

• This machine is equipped with an American Banner laser probe, capable of achieving 100% leak-free drilling. High-power spindle, servo motor. XY axes use high-precision Taiwan rack, guide rails use Taiwan Hiwin or PDF, with high-flex shielded wires, and a fully enclosed drag chain.
• The machine bed is reinforced, with a unique ‘L’ shape design at the front end, suitable for processing both long and short panels.
• Main functions: 3-in-1/slotting/all kinds of hardware handles, handle-less designs, and various invisible hardware (such as Mudi, Lock, Lamino, etc.).

Application

◎Main Functions: 3-in-1 / Grooving / Various Hardware Handles, Handle-Free, Various Hidden Accessories (Mu Deyi, Le Kou, Lamineo, etc.) / Scan Code Processing;
◎Using American Banner laser probes, high drilling accuracy;

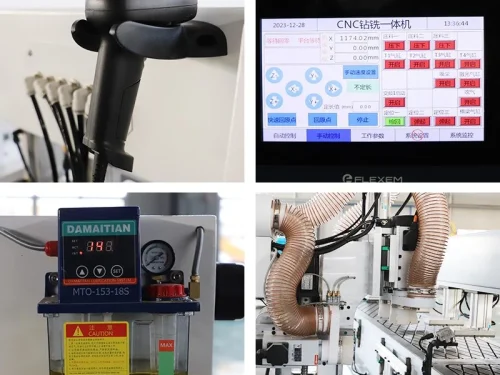

◎Equipped with dual-system dedicated barcode scanners, featuring fast speed and high efficiency;
◎Simple operation and easy to use, operators can use it without special training;
◎High-pressure cylinders, accurately fix the panels, efficient and convenient;
◎High-strength PVC tabletop, prevents errors caused by table wear;
◎Dedicated system, stable performance, good compatibility;
◎Bed body weighted, with a unique “L” shaped design at the front, suitable for processing long and short panels.

Product Details

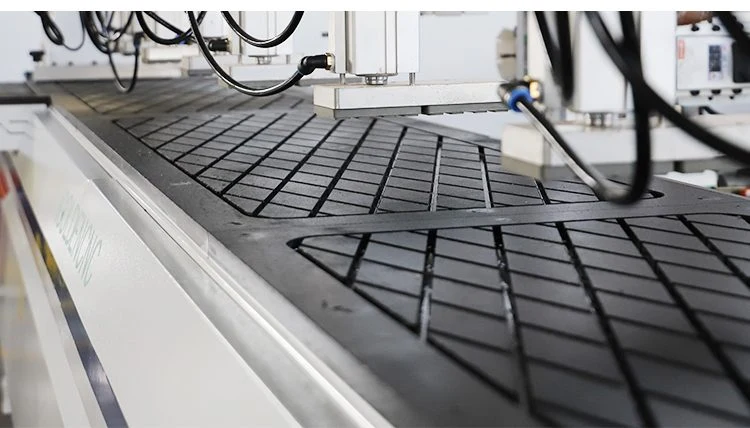

PVC adsorption table
Safe and stable, Long-lasting.

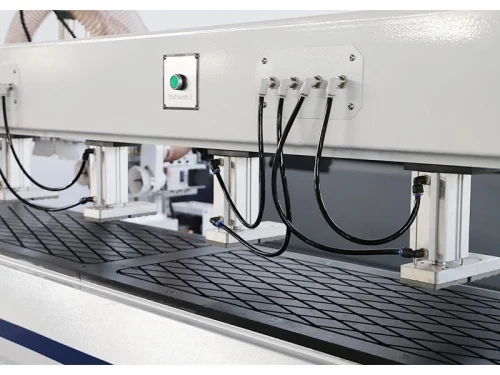

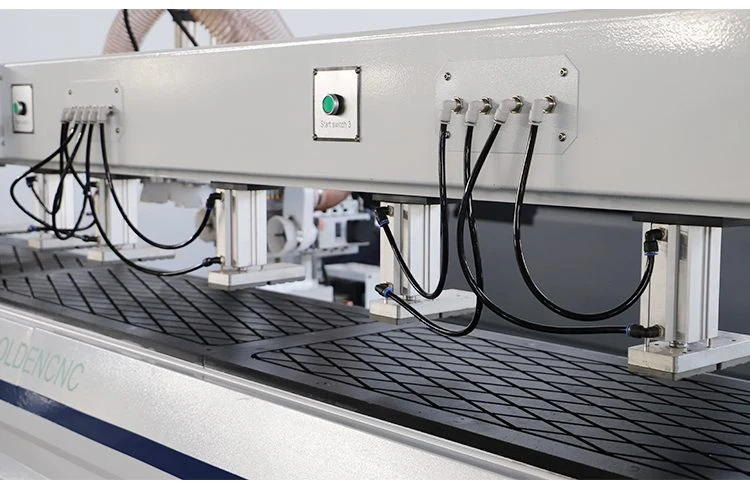

Full cylinder operation
The compaction of the whole machine is full cylinder operation,which is easy to operate. Interval positioning piles are suitable forplates of various sizes.

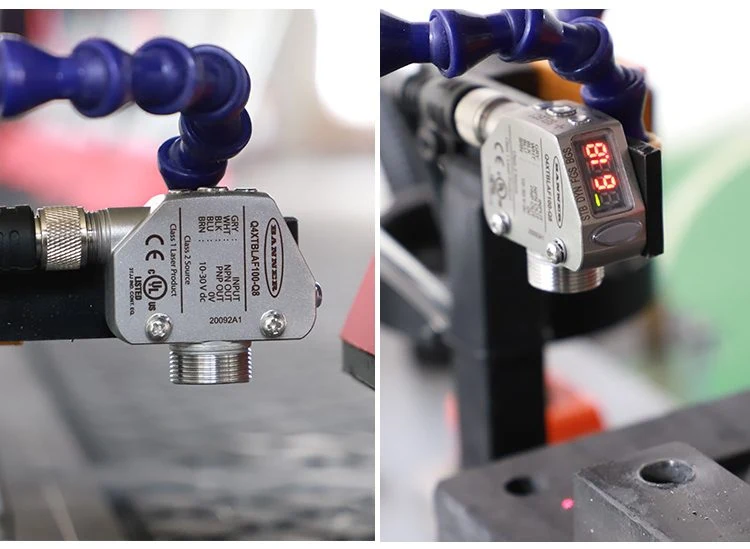

BANNER laser probe
Using high-quality laser probes to achieve 100% leak-free drilling.

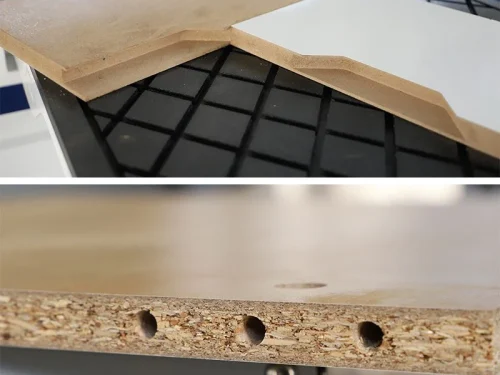

Four-process design

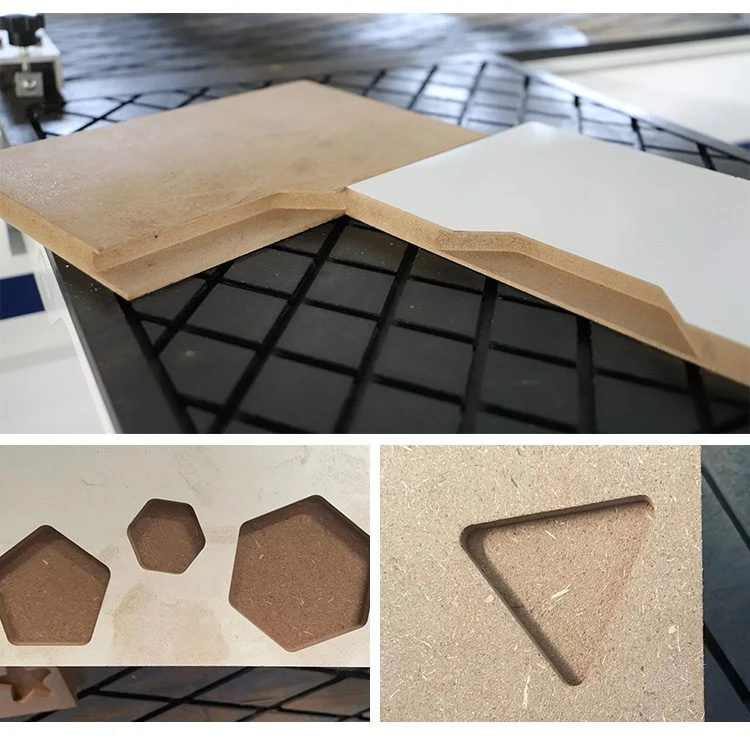

Main functions: 3-in-1 / pull slot/all kinds of hardware handle, handlefree, all kinds of invisible parts.

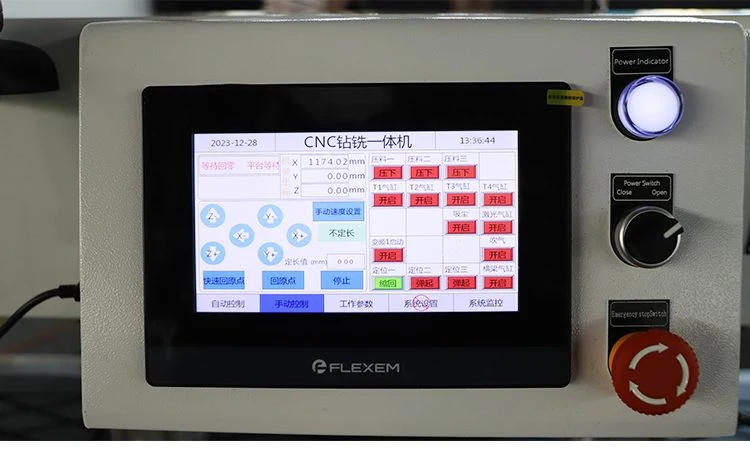

Touch screen interface
Easy to use and easy to operate.

Parameter
