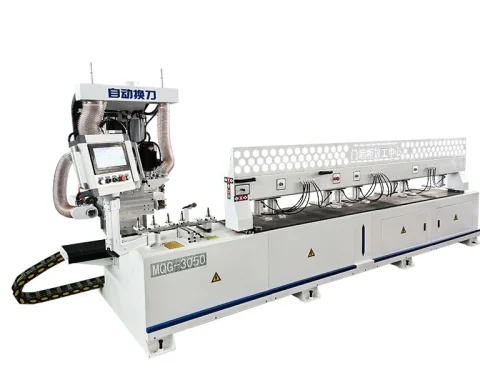

Inline Tool-Changing Wall Cabinet Machining Center

Inline Tool-Changing Wall Cabinet Machining Center

• Inline automatic tool changing, efficiency boost with standard 8–12 tool straight-line magazine, quickly changes tools as the gantry moves, completing tool changes within seconds without stopping for manual tool replacement, greatly reducing non-processing waiting time; can continuously perform multiple processes such as cutting, drilling, slotting, engraving, and milling, suitable for mixed batch and small batch custom production.

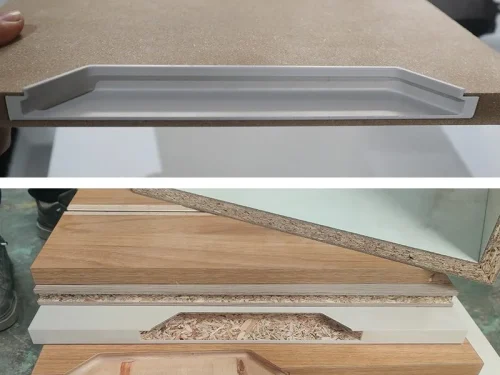

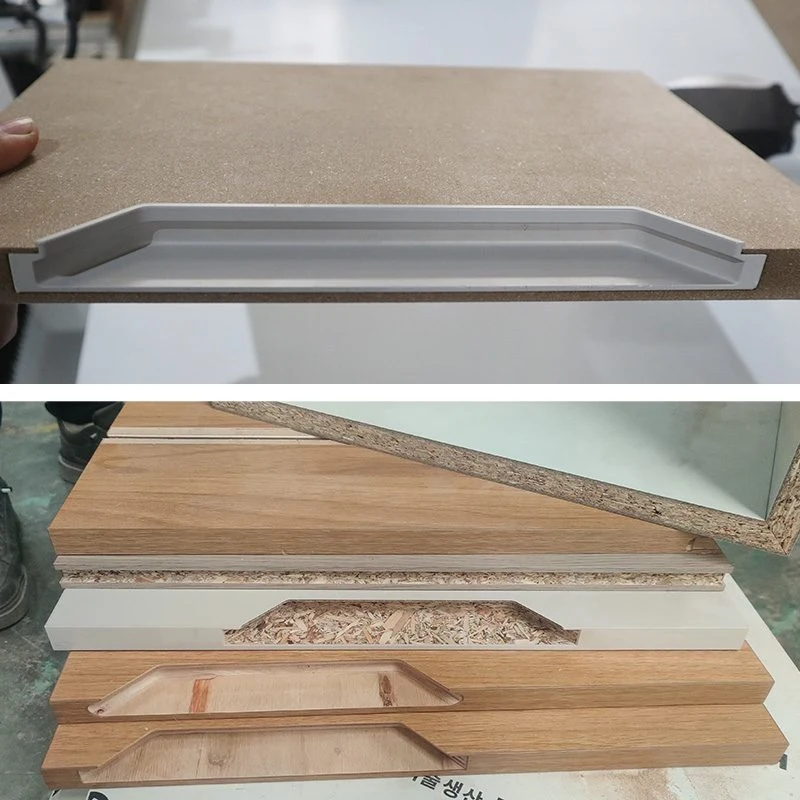

• Integrated machining, full coverage of processes, one-stop completion of cutting, drilling, slotting, relief carving, handle-free (J/C type / 45° miter cut), hardware hole positions (hinge / straightener), invisible connectors (Lamino), etc., replacing multiple equipment combinations, with one machine covering the entire process, reducing production line complexity and space usage.
• High precision and high stability, full steel welded frame + tempering treatment, strong rigidity and not easy to deform; imported linear guides and dual nut ball screws ensure smooth motion and repeat positioning accuracy; vacuum adsorption worktable stabilizes materials of different sizes/thicknesses, especially suitable for small panels and narrow edge processing, with smooth surfaces and accurate hole positions.

Application

• Inline automatic tool changing with 8-12 tool positions, fast tool change within seconds, no manual tool change downtime, continuous multi-process processing, efficiency increased by 30%+.
• One-stop integrated processing for cutting, drilling, grooving, engraving, profile milling, no need for multi-machine collaboration, covering all processes of cabinet and door panel production.
• High-rigidity welded frame + imported linear guide rail & ball screw, vacuum adsorption table, stable clamping, repeated positioning accuracy up to ±0.02mm, smooth processing surface and accurate hole position.
• Compatible with particleboard, MDF, ecological board, PVC, acrylic and other mainstream plates, supports mainstream CAD/CAM software, seamless connection of design and production.
• Graphical intelligent operating system, short training cycle for new operators, reducing dependence on skilled workers, optional automatic loading/unloading and double-station for further efficiency improvement.

Product Details

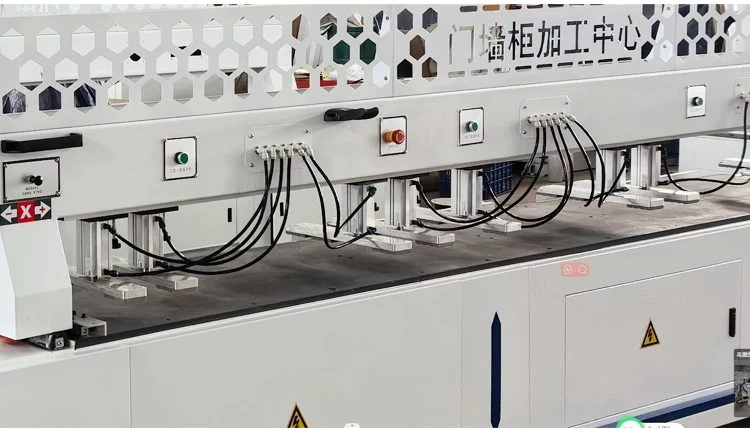

PVC countertop and press cylinder

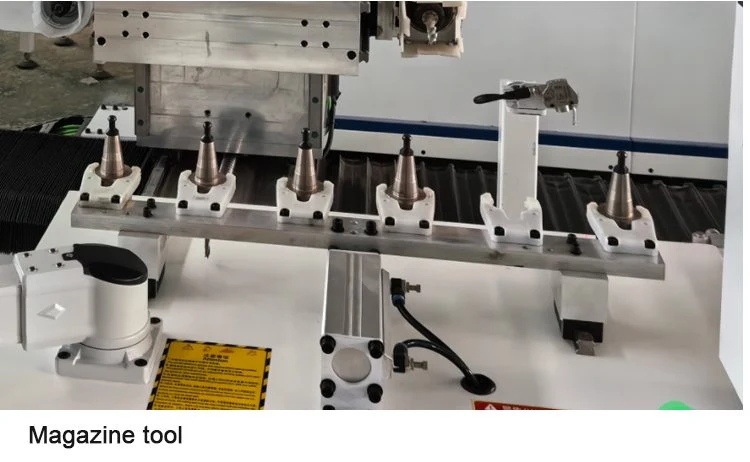

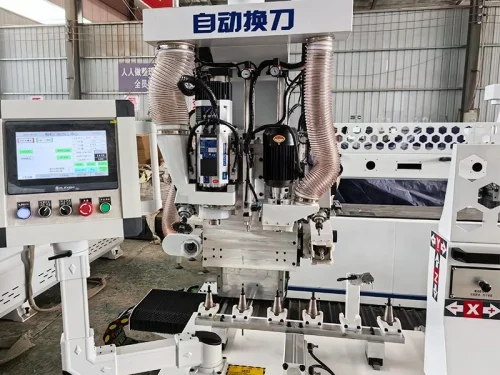

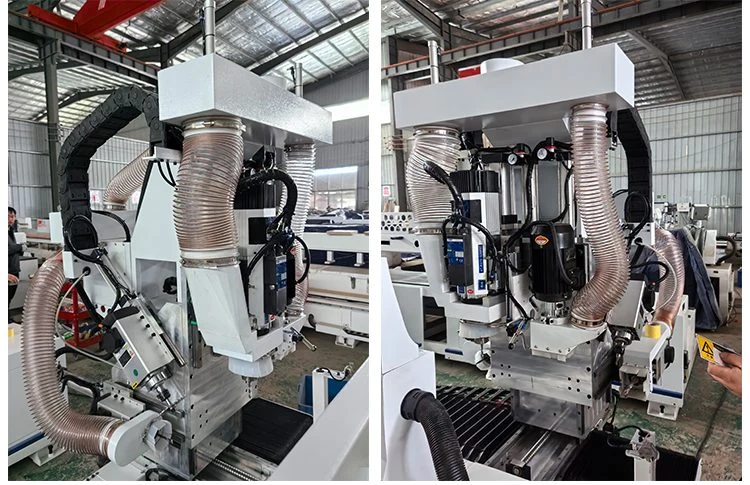

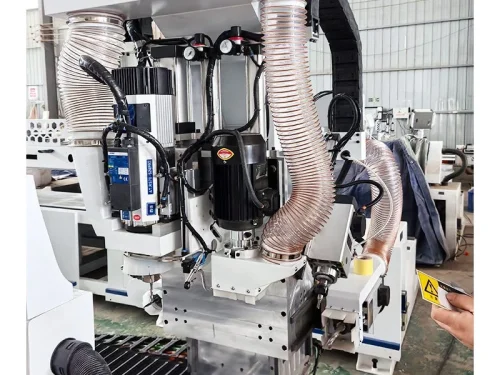

Magazine tool

Six-process design

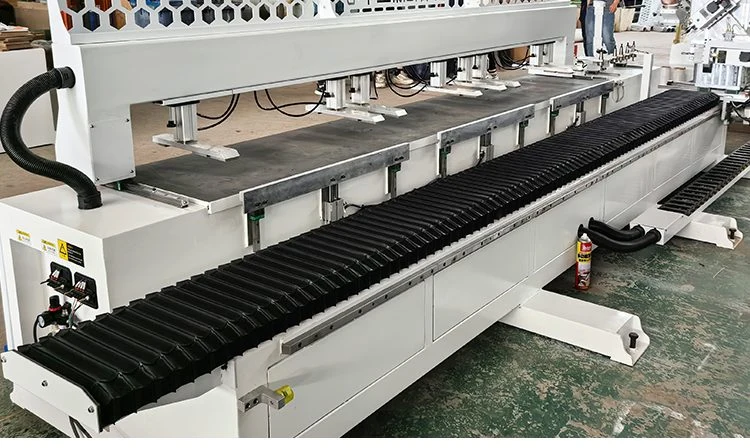

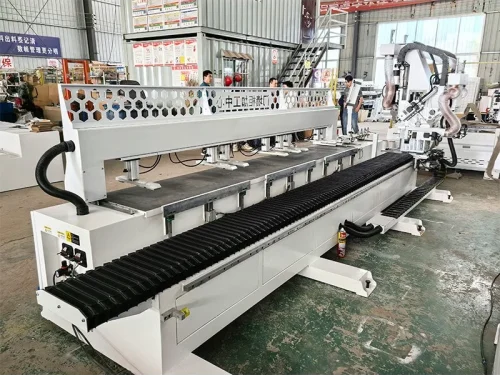

Heavy-duty body structure

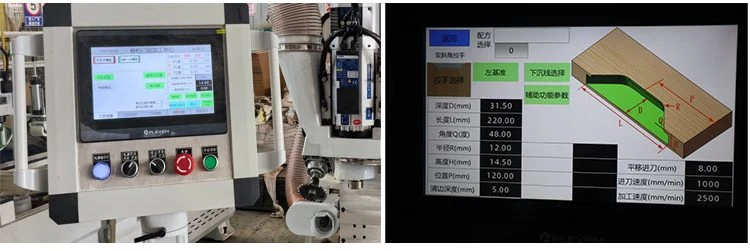

Visualization of Processing Preview

Parameter
