Products Description

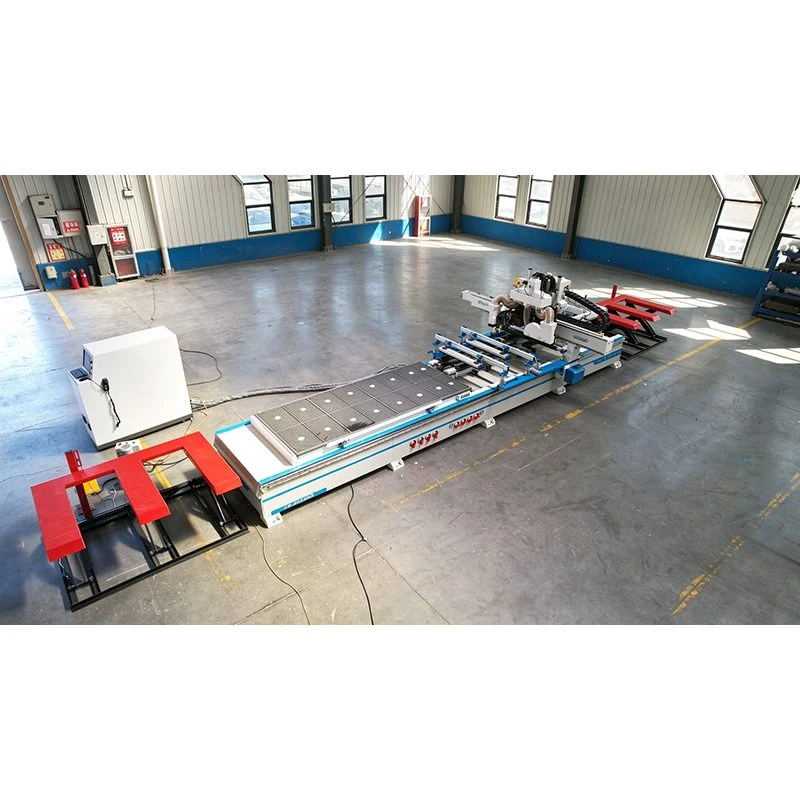

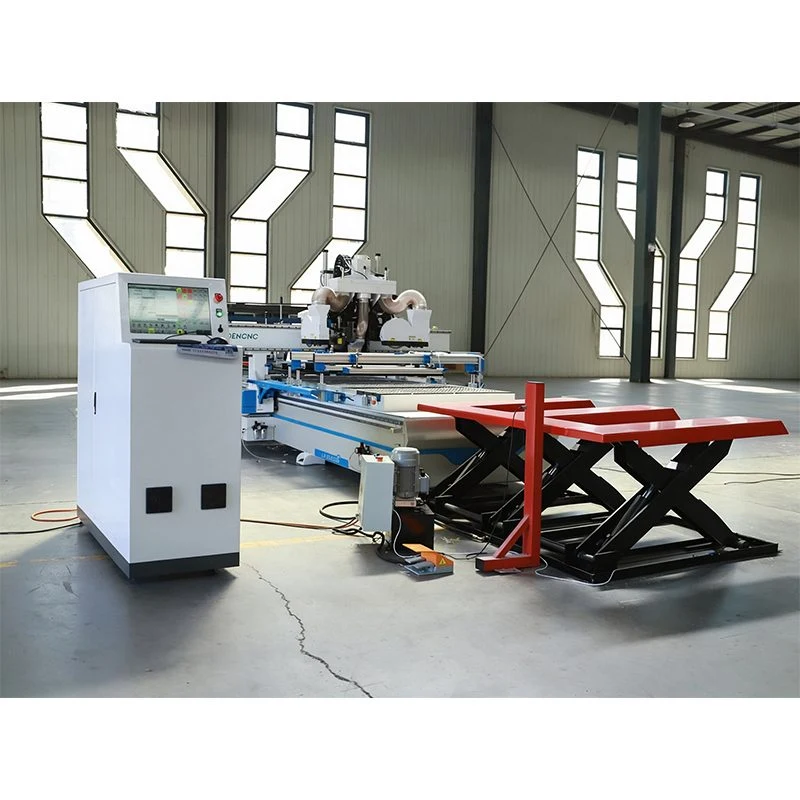

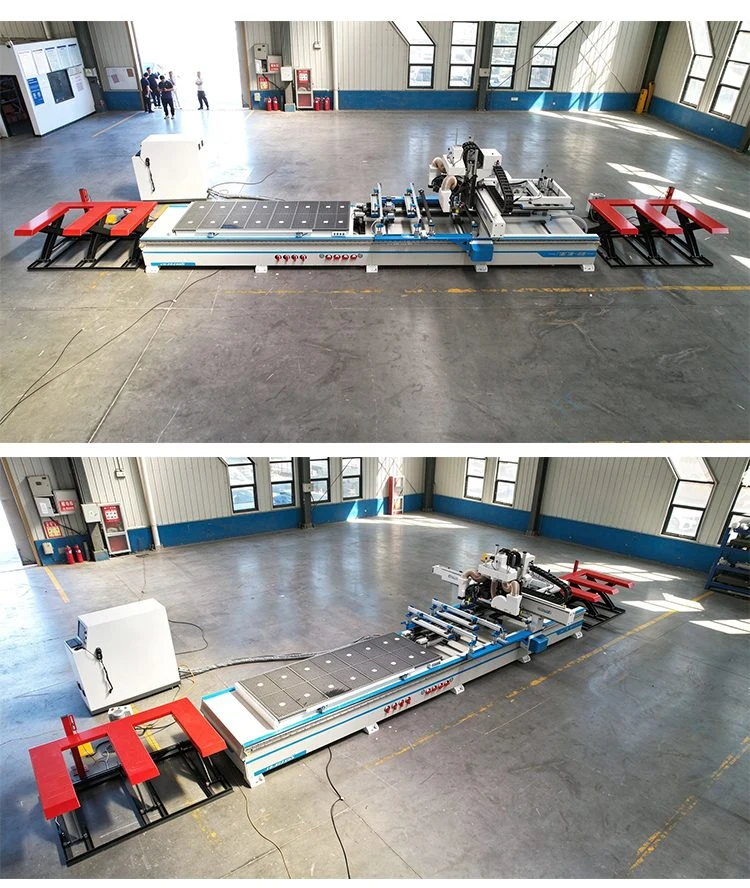

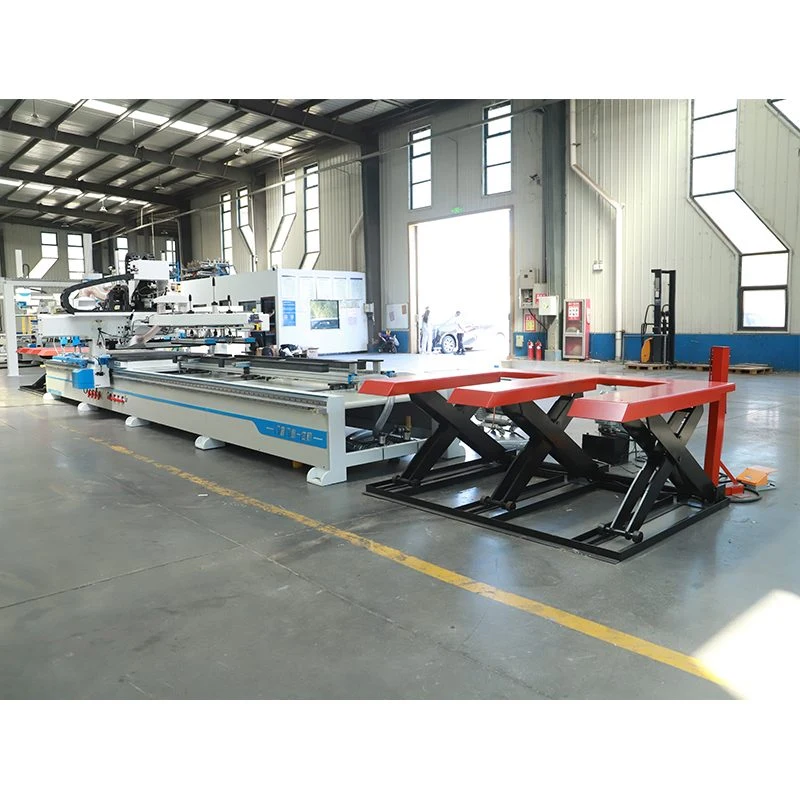

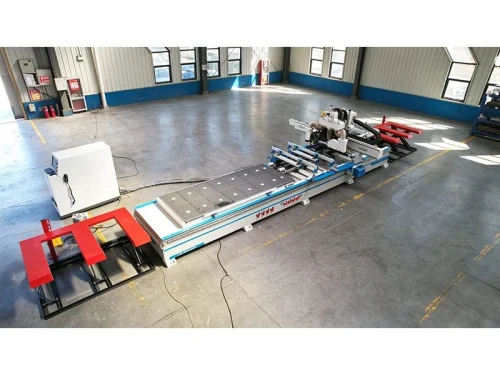

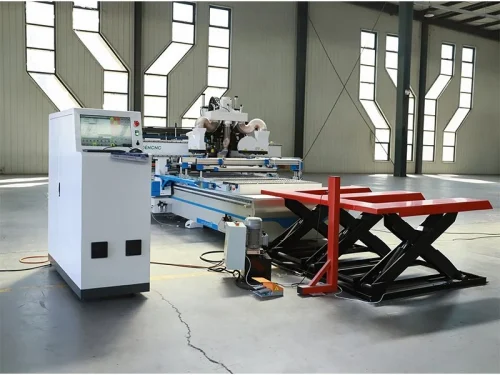

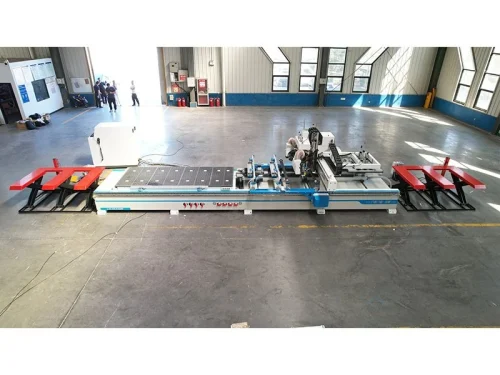

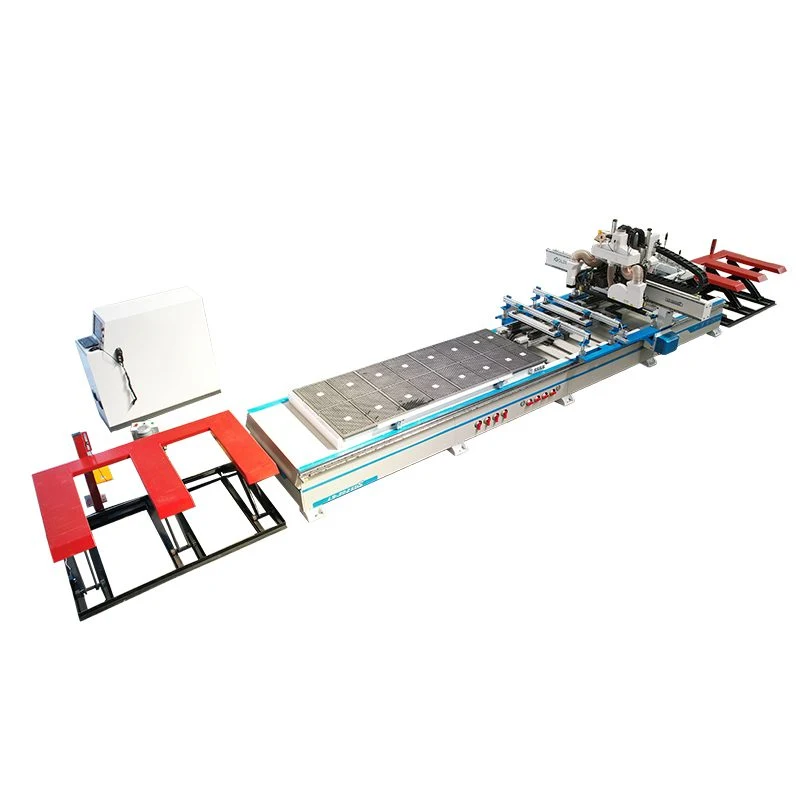

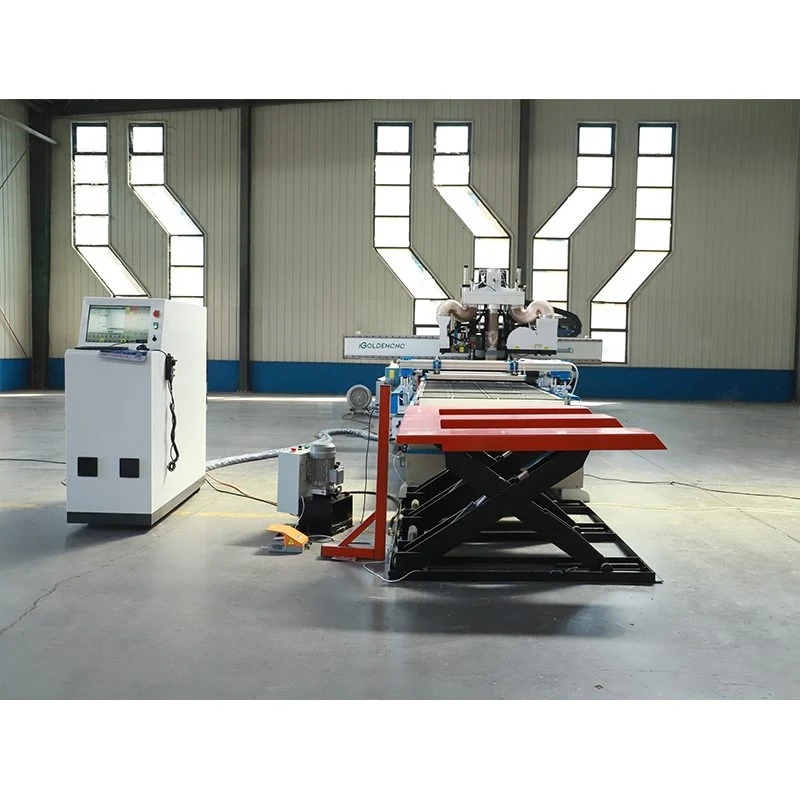

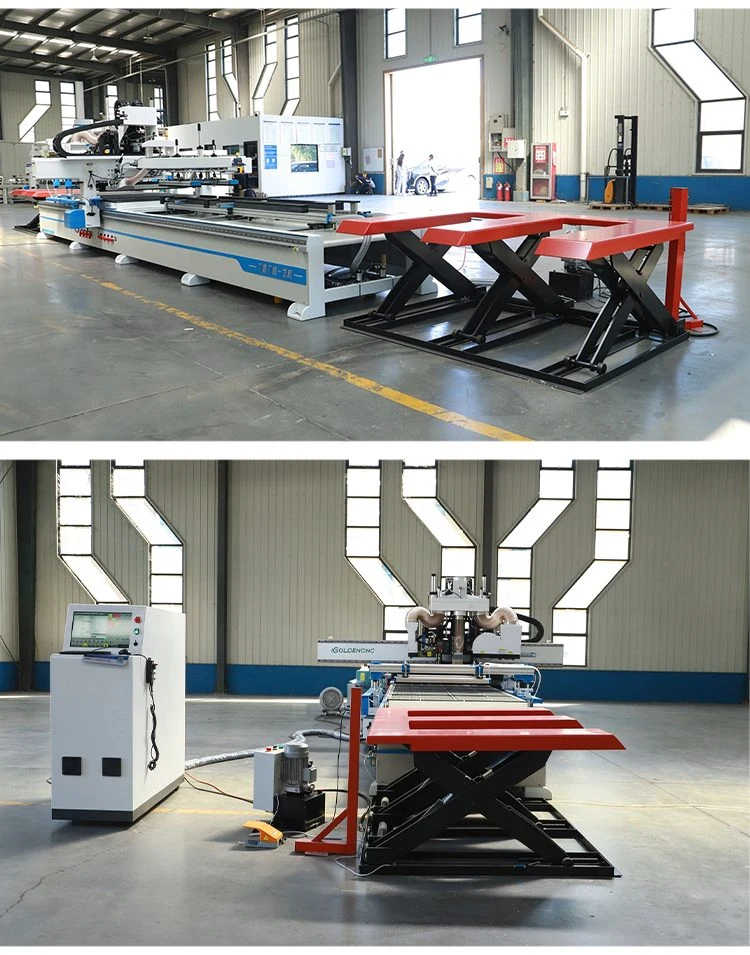

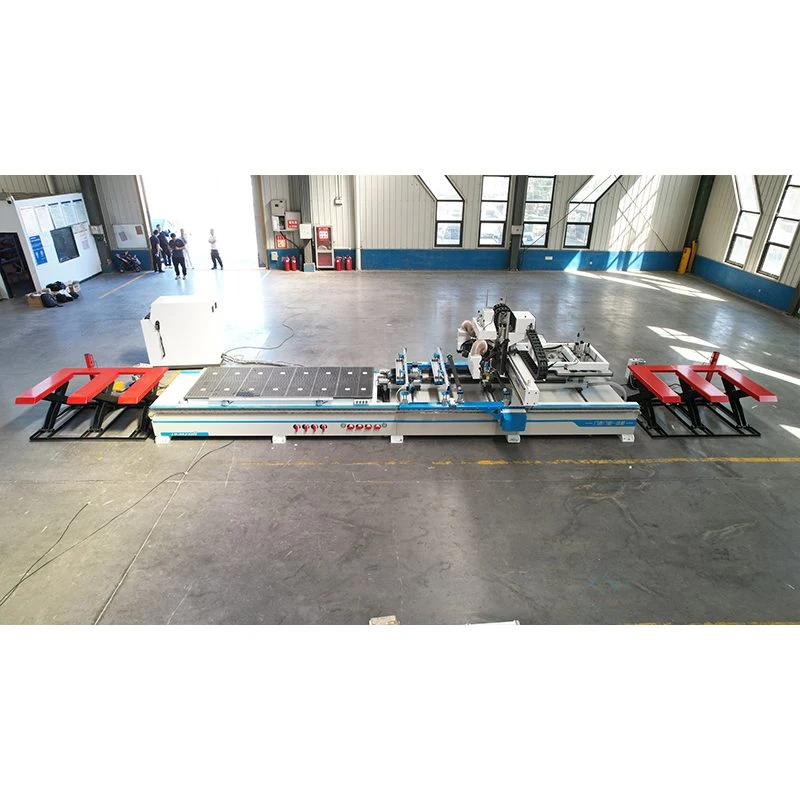

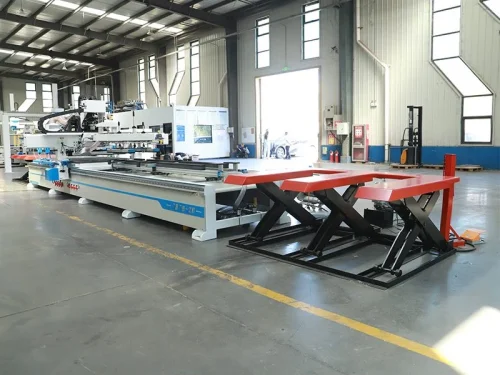

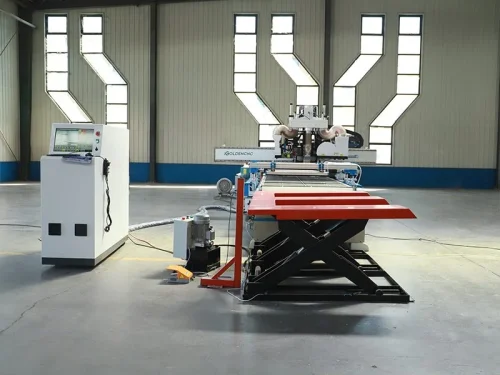

Smart dual-station door frame and blade machine

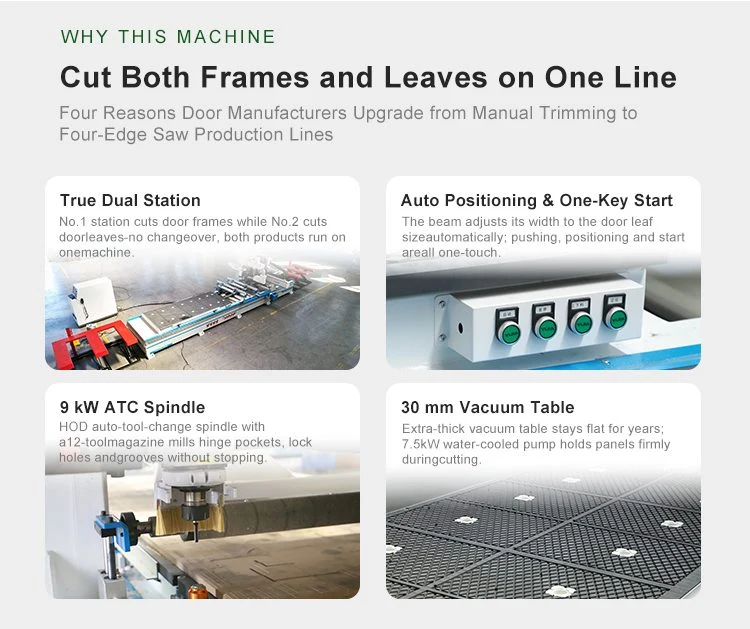

1. Load
Two lifting platformsraisepanels intoposition.
2. Position
Beam widthauto-adjusts tothedoor leaf size.
3. Cut & Mil
Sawing plus ATCmilling atthematched station.
4. Unload
Auto pushingsendsfinishedparts offthe table.
Product Details
Parameter
| Description | Parameters |
|---|---|
| Bed | Heavy-duty bed, machined on all five sides, thickened steel strip, ensuring processing accuracy |
| System | Taiwan Baoyuan Control System |
| Servo Motor | Leadshine 1500W Servo Motor |

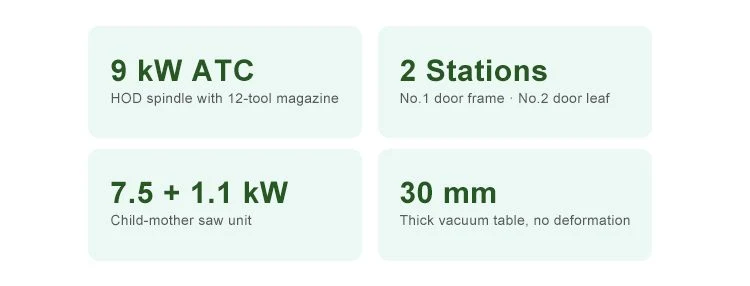

| Spindle | HQD 9KW automatic tool-changing spindle (with a 12-tool magazine) |
| Loading and unloading | Two sets of lift platforms (one for loading + one for unloading) |
| Guide rail | Fanuc 30 high-precision, wear-resistant guide rail |
| Rack | Henry-Anne ground rack |
| Gear reducer | Shinbo gear reducer from Japan |
| Inverter | Fuling 9kW inverter |
| Door frame countertop | 30mm thick reinforced vacuum-adsorbed countertop to ensure it doesn’t warp. |
