Products Description

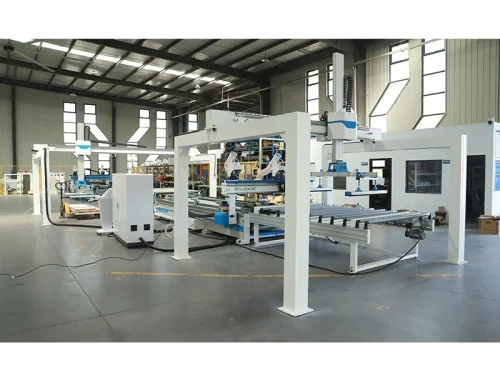

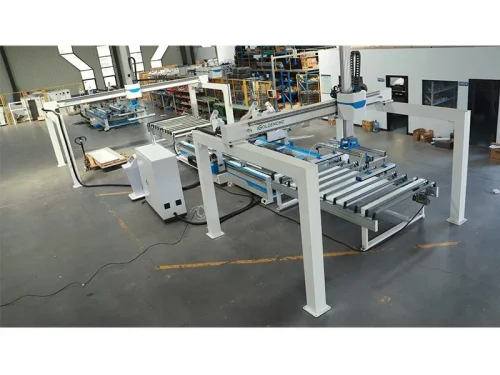

Wood Door Four-Sided Sawing Machine
1. One-Pass Four-Edge Sawing
Two longitudinal saws plus one cross saw trimall four edges of the doorin a single clamping-norepositioning, no secondary work.
2. Cylinder Clamping,Zero Deformation
Pneumatic hold-down uses far less power thanvacuum-around USD4.200 in electricity savedper year- and leaves no marks or deformationonthe door face.

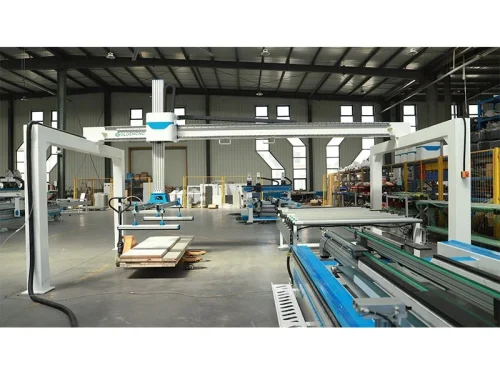

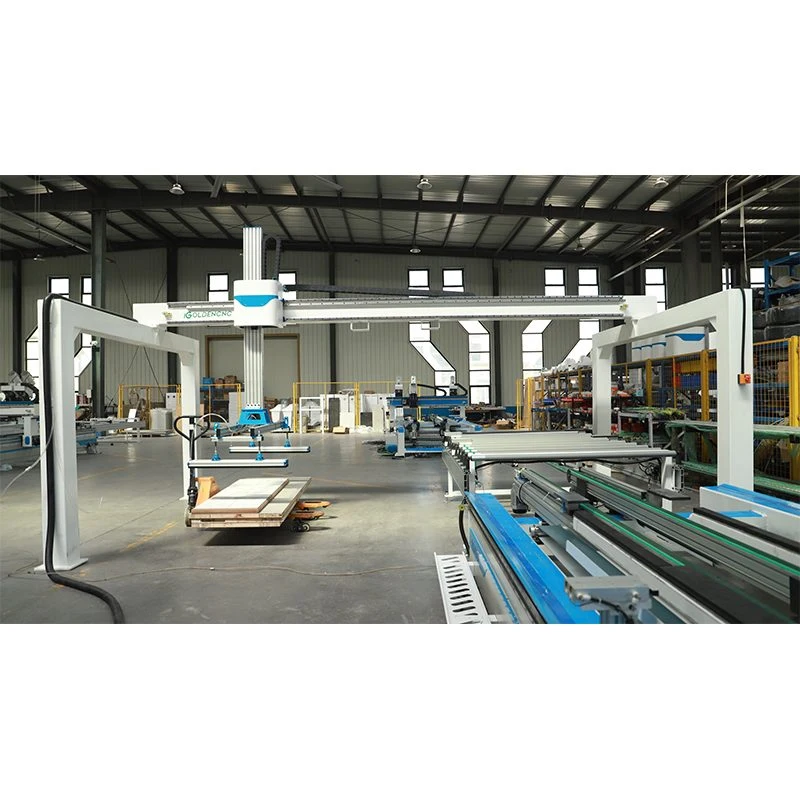

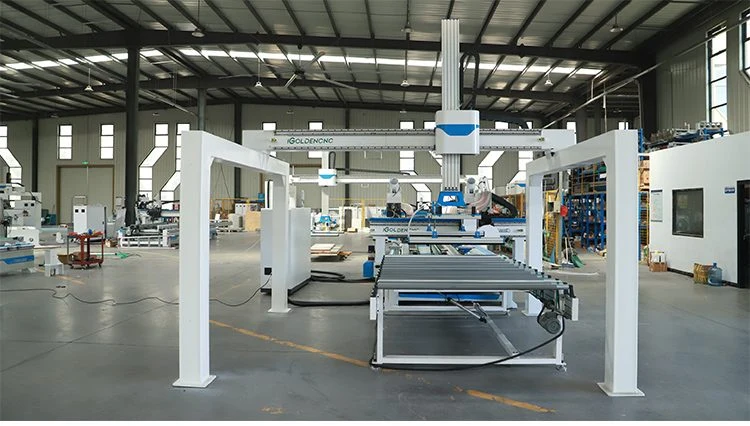

3. Single Gantry Auto Loading& Unloading with Pads
Single gantry for automatic loading andunloading. with automatic pad feeding.

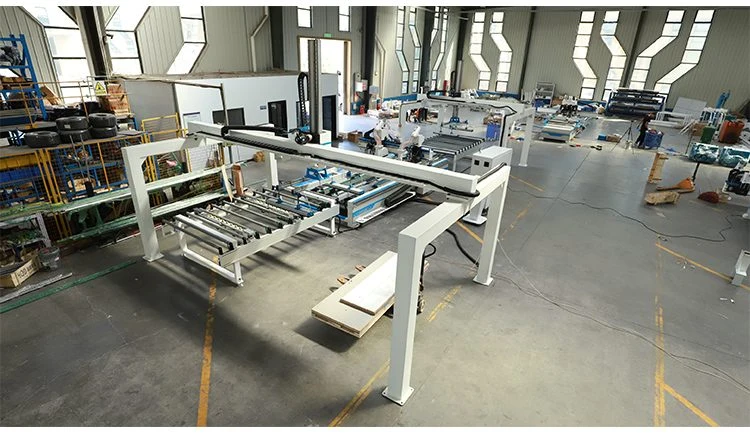

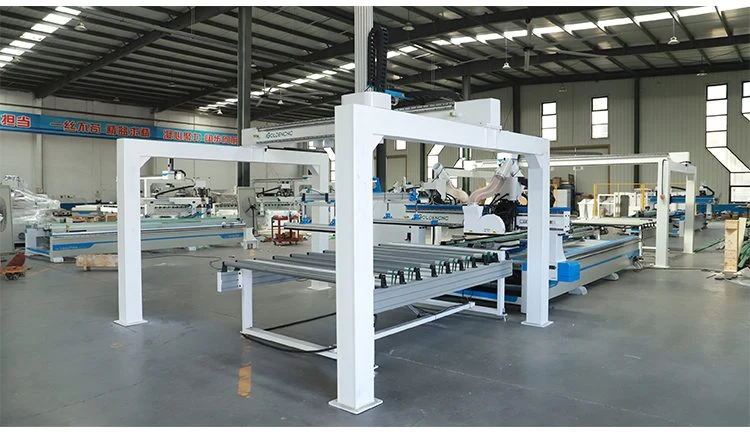

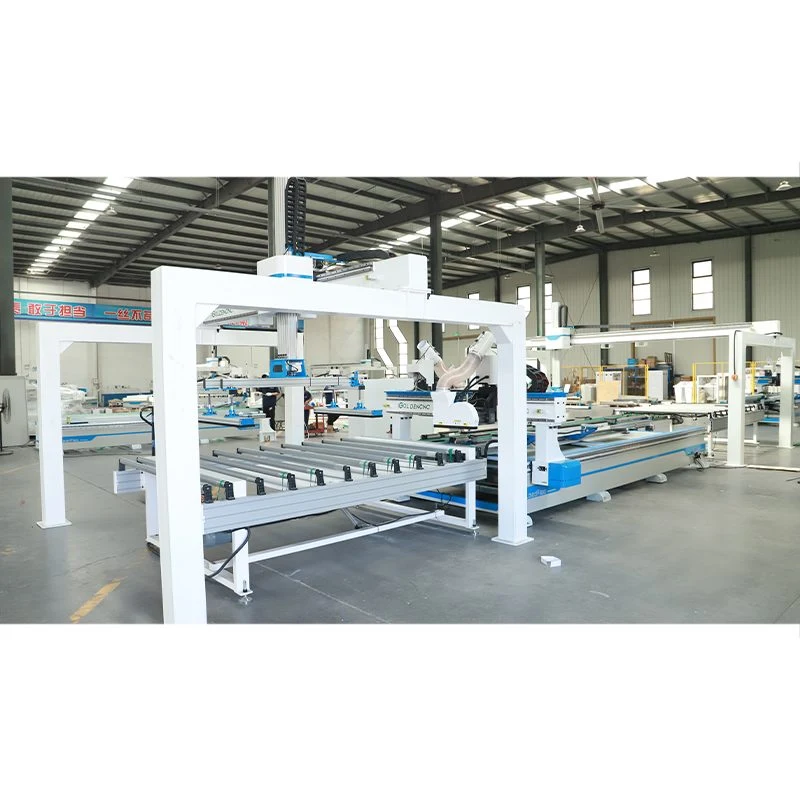

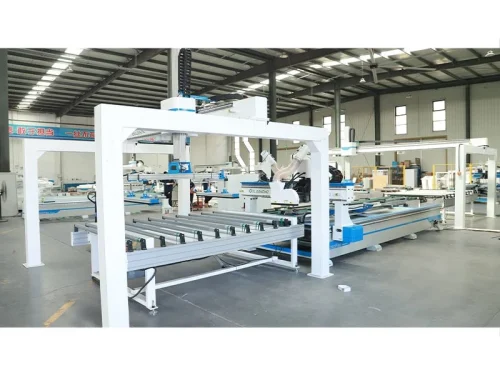

4. Single-Gantry Auto Loading

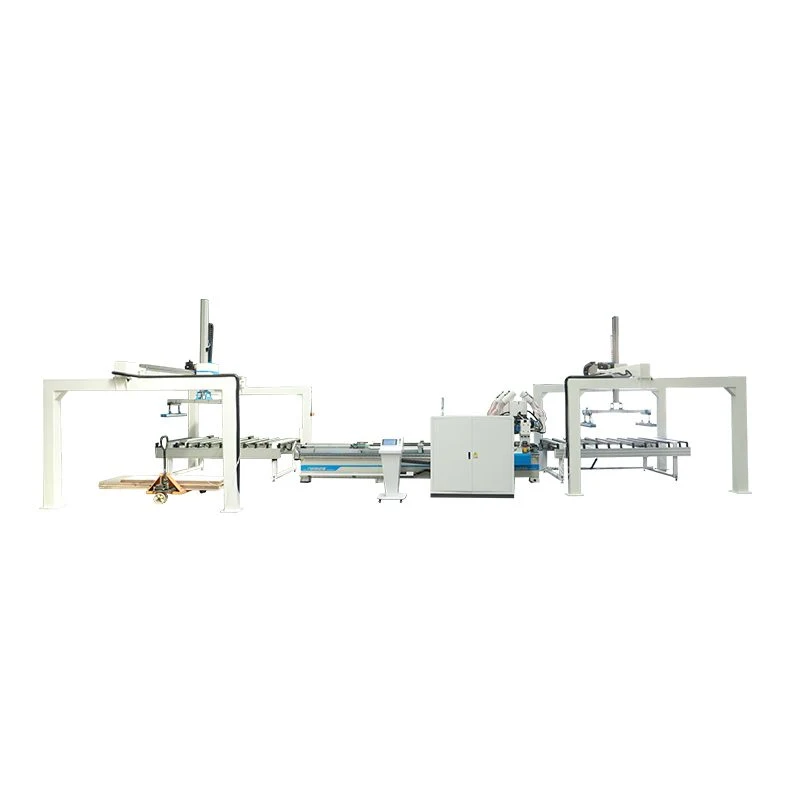

Paired with a single gantry, the line loads doorssaws four edges, unloadsand stacks onto palletsautomatically-one operator runs the whole flow.
Product Details
Parameter

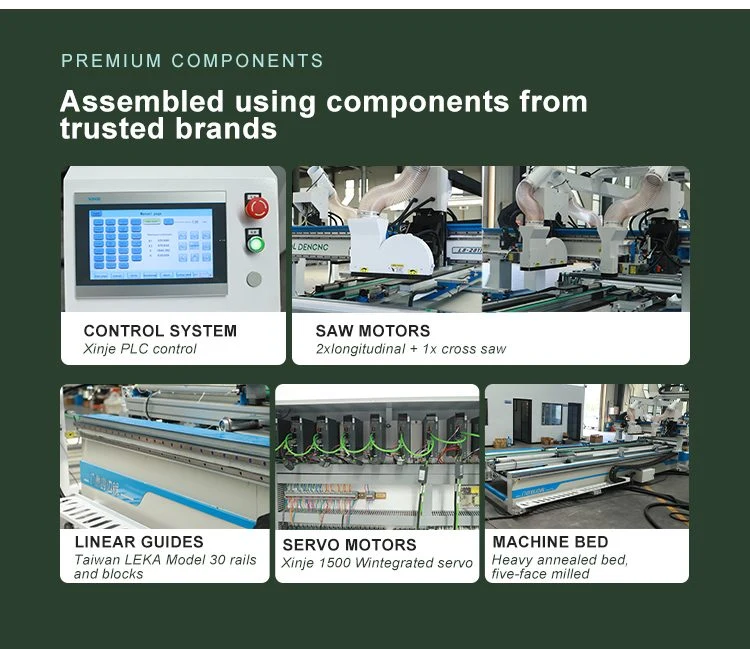

| Description | Parameters |
|---|---|
| Control System | Xinje PLC Control System |
| Saw Motor | Two sets of vertical saws + one set of horizontal saws, with the big saw motor at 7.5KW and the small saw motor at 1.1KW |
| Guide Rail | Taiwan Leukai 30 guide rail and slide |
| Motor | Xinje 1500W integrated servo motor |
| Loading and Unloading | Works with a single gantry, automatic loading and unloading, can use a base plate |
| Electrical components | Chint, ABB |
| Gear reducer | Shinbo gear reducer from Japan |
| Bed | Heavy annealed five-sided milled bed |
| Inverter | Fuling inverter |
| Mounting method | Cylinder-type mounting |
